A large piece of concrete which is at -5°C is placed in an environment at 15°C....

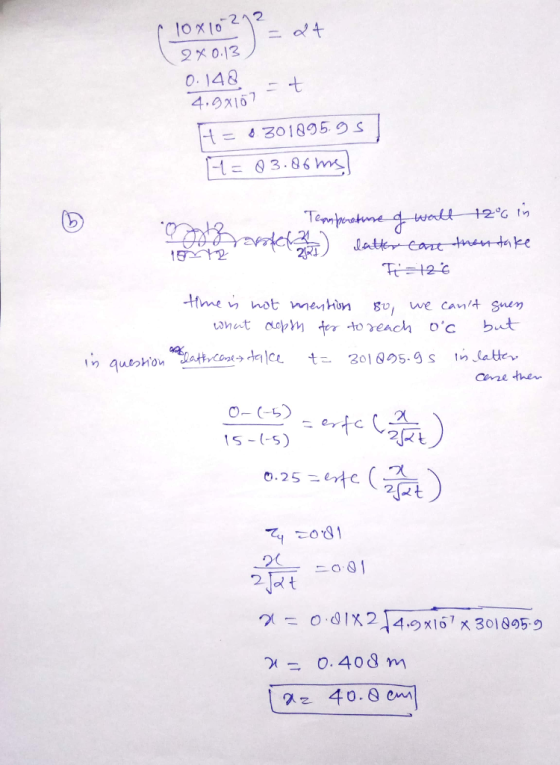

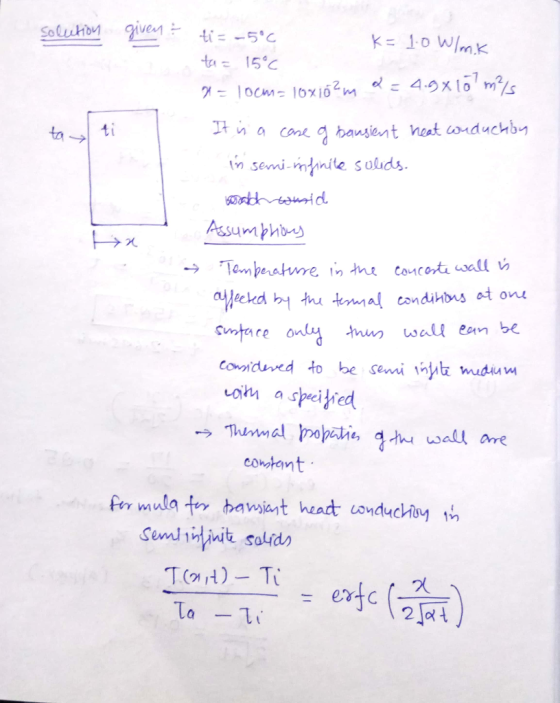

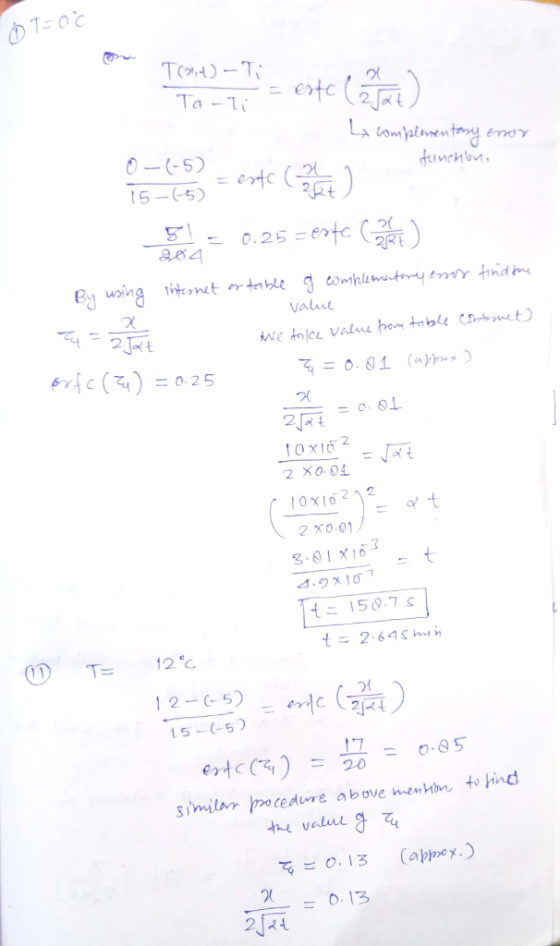

A large piece of concrete which is at -5°C is placed in an environment at 15°C. a) Given that the thermal conductivity and diffusivity of concrete are 1.0 W m‒1 K‒1 and 4.9 × 10–7 m2 s–1 what time is required before the temperature at a depth of 10 cm reaches i. 0°C and ii. 12°C? b) In the latter case at what depth is the temperature equal to 0°C?
Homework Answers
Add Answer to:
A large piece of concrete which is at -5°C is placed in an
environment at 15°C....
Figure Q2(b) shows the composite wall of a freezing plant which consists of a 10 cm...
Figure Q2(b) shows the composite wall of a freezing
plant which consists of a 10 cm layer of corkboard on the inside
and 14 cm layer of concrete on the outside, with an area of 1 m2.
The temperature on the inside corkboard surface is -20 °C, and the
temperature on the outside concrete surface is 24 °C. The thermal
conductivity for corkboard is 0.04 W/m.K and for concrete is 0.8
W/m.K.
Calculate the temperature of the interface between the...
30 points / A taken from a 30 °C environment and laid out in a refrigerator at 5 °C. They have ap...
30 points / A taken from a 30 °C environment and laid out in a refrigerator at 5 °C. They have approximately the same physical properties as water, and the heat transfer coefficient inside the refrigerator is approximately 10 W/m2-K. You can neglect any thermal radiation. dozen approximately cylindrical cucumbers, 4 cm in diameter and 12 cm in length, are What will the temperature of the centers of the apples be after one hour? How much energy will the refrigerator...
Solve quickly and carry units please rroblem I) A perfect sphere (Diameter-1 cm) of a gold...
Solve quickly and carry units please
rroblem I) A perfect sphere (Diameter-1 cm) of a gold alloy is placed in a special type o microwave oven. The sphere has a uniform initial temperature of 300 K. The microwave then turned on, which pr oduces u niform generation u-3,000,000 W/m2 within the sphere, and a fan produces convection heat transfer evenly over the surface of the sphere with convection coefficient h-6 W/m2 K and with air temperature Too- 300 K. Radiation...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature...
Consider a 34 cm thick concrete wall with a thermal conductivity of 0.82 W/m·K. The temperature of the left surface is held constant at 42°C, whereas the right face is exposed to a flow of 12°C air with a convection heat transfer coefficient of 23 W/m2·K. Neglecting heat transfer by radiation, find the right wall surface temperature and the heat flux through the wall.
Consider a rectangular bar of thermal conductivity k W/m-K and total length 2L, as shown in...
Consider a rectangular bar of thermal conductivity k W/m-K and
total length 2L, as shown in the figure, is connected to a hot
surface that is at a temperature T1. The connection between the bar
and the surface is imperfect and results in a thermal contact
resistance of R’’ m2-K/W. The width of the rod into the depth of
the paper is W meters and the thickness of the rod is t meters. The
first section of the rod of...
Still water of some depth initially at 37°C has its surface raised to 100°C (6 and...
Still water of some depth initially at 37°C has its surface raised to 100°C (6 and maintained at this level. Determine the depth at which the temperature will reach 48°C after 10 seconds. Also find the heat flow during this time into the water. If the surface temperature only was raised to 50°C determine .these quantities.(Thermal diffusivity) a = 1.595 x 10^-7 m2/s; k = 0.656 W/mK
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and...
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
Q2(a) A Pyrex beaker of 400 ml (coefficient of linear expansion = 0.3x10-5 °C-+) is filled...
Q2(a) A Pyrex beaker of 400 ml (coefficient of linear expansion = 0.3x10-5 °C-+) is filled with 350 ml of glycerine (coefficient of volume expansion = 5.1x10+ °C!). Analyze if the glycerine will overflow if the temperature of both beaker and glycerine is heated from 25 °C to 100 °C. (5 marks) (b) Figure Q2(b) shows the composite wall of a freezing plant which consists of a 10 cm layer of corkboard on the inside and 14 cm layer of...
A large plane wall has a thickness L = 50 cm and thermal conductivity k =...
A large plane wall has a thickness L = 50 cm and thermal conductivity k = 25W/m·K. On the left surface (x = 0), it is subjected to a uniform heat flux ?̇0 while the surface temperature T0 is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL = 225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity k 25 W/m-K. On the left surface (x-0), it is subjected to a uniform heat flux qo while the surface temperature To is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL-225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and 15 W/m2-K,...
Figure Q2(b) shows the composite wall of a freezing
plant which consists of a 10 cm layer of corkboard on the inside
and 14 cm layer of concrete on the outside, with an area of 1 m2.
The temperature on the inside corkboard surface is -20 °C, and the
temperature on the outside concrete surface is 24 °C. The thermal
conductivity for corkboard is 0.04 W/m.K and for concrete is 0.8
W/m.K.
Calculate the temperature of the interface between the...
30 points / A taken from a 30 °C environment and laid out in a refrigerator at 5 °C. They have approximately the same physical properties as water, and the heat transfer coefficient inside the refrigerator is approximately 10 W/m2-K. You can neglect any thermal radiation. dozen approximately cylindrical cucumbers, 4 cm in diameter and 12 cm in length, are What will the temperature of the centers of the apples be after one hour? How much energy will the refrigerator...
Solve quickly and carry units please
rroblem I) A perfect sphere (Diameter-1 cm) of a gold alloy is placed in a special type o microwave oven. The sphere has a uniform initial temperature of 300 K. The microwave then turned on, which pr oduces u niform generation u-3,000,000 W/m2 within the sphere, and a fan produces convection heat transfer evenly over the surface of the sphere with convection coefficient h-6 W/m2 K and with air temperature Too- 300 K. Radiation...
Consider a rectangular bar of thermal conductivity k W/m-K and
total length 2L, as shown in the figure, is connected to a hot
surface that is at a temperature T1. The connection between the bar
and the surface is imperfect and results in a thermal contact
resistance of R’’ m2-K/W. The width of the rod into the depth of
the paper is W meters and the thickness of the rod is t meters. The
first section of the rod of...
Still water of some depth initially at 37°C has its surface raised to 100°C (6 and maintained at this level. Determine the depth at which the temperature will reach 48°C after 10 seconds. Also find the heat flow during this time into the water. If the surface temperature only was raised to 50°C determine .these quantities.(Thermal diffusivity) a = 1.595 x 10^-7 m2/s; k = 0.656 W/mK
B Steam flows in a steel pipe, which is insulated by gypsum plaster. The inner and outer diameter of the pipe are 8 cm and 6 cm respectively with pipe length of 20-m. The thickness of gypsum plaster which wraps the pipe is 4 cm. The heat transfer coefficient of the inner pipe and outer insulation are 800 W/m2.°C and 200 W/m2.°C with inner pipe temperature of 200°C and outer insulator temperature of 10°C. The thermal conductivity of the pipe...
Q2(a) A Pyrex beaker of 400 ml (coefficient of linear expansion = 0.3x10-5 °C-+) is filled with 350 ml of glycerine (coefficient of volume expansion = 5.1x10+ °C!). Analyze if the glycerine will overflow if the temperature of both beaker and glycerine is heated from 25 °C to 100 °C. (5 marks) (b) Figure Q2(b) shows the composite wall of a freezing plant which consists of a 10 cm layer of corkboard on the inside and 14 cm layer of...
P1 (50 pts.) - A large plane wall has a thickness L-60 cm and thermal conductivity k 25 W/m-K. On the left surface (x-0), it is subjected to a uniform heat flux qo while the surface temperature To is constant. On the right surface, it experiences convection and radiation heat transfer while the surface temperature is TL-225°C and the surrounding temperature is 25°C. The emissivity and the convection heat transfer coefficient on the right surface are 0.7 and 15 W/m2-K,...
