Find the Inductance Value of the RL Circuit

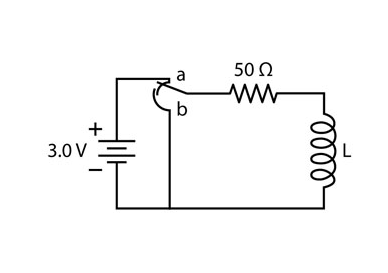

5 microseconds after the switch moves from a to b, the magnectic energy stored in the inductor has decreased by half. What is the inductance (L) value?
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor...
An L-C circuit consists of an inductor with an inductance of 65.0 mH and a capacitor with a capacitance of 250 μF . The initial charge on the capacitor is 5.50 μC , and the initial current in the inductor is zero. a) What is the maximum voltage across the capacitor? b) What is the maximum current in the inductor? c) What is the maximum energy stored in the inductor? d) When the current in the inductor has half its...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
In a RL series circuit, the current reaches half its maximum value in 2.0 s after...
In a RL series circuit, the current reaches half its maximum
value in 2.0 s after the switch is closed. If the resistance is 5.0
Ω, find the inductance of the inductor. (4 pts)
In a RL series circuit, the current reaches half its maximum value in 2.0 s after the switch is closed. 5) If the resistance is 5.0 Ω, find the inductance of the inductor. (4 pts)
Help please ...! An RL circuit comprised of one resistor and one inductor is shown in...
Help please ...!
An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 Q, and the inductance of the inductor is 53 mH. For the circuit below: Sketch the graph of current through the inductor as a function of time...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 , and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
Please show your work on how it is done. thank you! 1. An RL circuit comprised...
Please show your work on how it is done. thank you!
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 n, and the inductance of the inductor is 53 mH. For the circuit below Sketch the graph of...
Please help, I'm struggling. Thank you An RL circuit comprised of one resistor and one inductor...
Please help, I'm struggling. Thank you
An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a...
In Fig.30.11 in the textbook, switch S1 is closed while switch S2 is kept open. The...
In Fig.30.11 in the textbook, switch S1 is closed while switch S2 is kept open. The inductance is L = 0.160 H , and the resistance is R = 130 Ω . a) When the current has reached its final value, the energy stored in the inductor is 0.230 J . What is the emf E of the battery? b) After the current has reached its final value, S1 is opened and S2 is closed. How much time does it...
An RL circuit bas a 30 12 resistor in series with an 840 mH inductor and...
An RL circuit bas a 30 12 resistor in series with an 840 mH inductor and a 12 V battery, as shown. The service is closed at t - 0.Find the time constant of the circuit What is the current in the circuit 0.014 s after the switch is eloped? What energy is stored in the inductance at this time (0.014 s after the switch is closed)?
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
In a RL series circuit, the current reaches half its maximum
value in 2.0 s after the switch is closed. If the resistance is 5.0
Ω, find the inductance of the inductor. (4 pts)
In a RL series circuit, the current reaches half its maximum value in 2.0 s after the switch is closed. 5) If the resistance is 5.0 Ω, find the inductance of the inductor. (4 pts)
Help please ...!
An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 Q, and the inductance of the inductor is 53 mH. For the circuit below: Sketch the graph of current through the inductor as a function of time...
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 , and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a function of time after...
Please show your work on how it is done. thank you!
1. An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0 V. The resistance of the resistor is 0.35 n, and the inductance of the inductor is 53 mH. For the circuit below Sketch the graph of...
Please help, I'm struggling. Thank you
An RL circuit comprised of one resistor and one inductor is shown in the figure below. The resistor and inductor are connected to a source of emf with negligible internal resistance by a switch a. The emf for this circuit is 12.0V. The resistance of the resistor is 0.35 12, and the inductance of the inductor is 53 mH. For the circuit below: a. Sketch the graph of current through the inductor as a...
An RL circuit bas a 30 12 resistor in series with an 840 mH inductor and a 12 V battery, as shown. The service is closed at t - 0.Find the time constant of the circuit What is the current in the circuit 0.014 s after the switch is eloped? What energy is stored in the inductance at this time (0.014 s after the switch is closed)?
