21. Given the information in the following lag exercises, compute the early, late, and slack times...

Question

Question

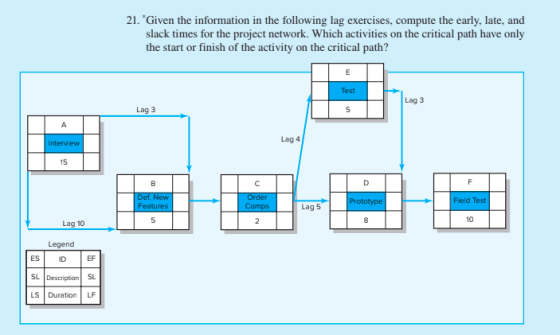

21. Given the information in the following lag exercises, compute the early, late, and slack times for the project network. W

business Operations-Management

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Below is the required calculations -

Activity	Immediate Predecessors	Expected Time	ES	EF	LS	LF	Slack
A	-	15	0	15	0	15	0
B	A	5	15	20	15	20	0
C	B	2	20	22	20	22	0
E	C	5	22	27	22	27	0
D	C,E	8	27	35	27	35	0
F	D	10	35	45	35	45	0

Add a comment
