Homework Answers
Add Answer to:

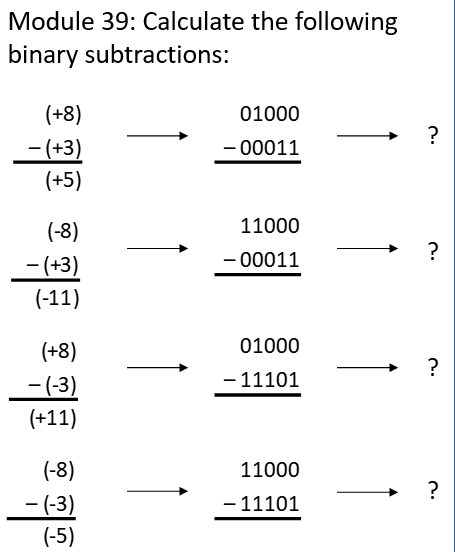

Module 39: Calculate the following binary subtractions: (+8) - (+3) (+5) 01000 -00011 11000 (-8) -(+3)...
