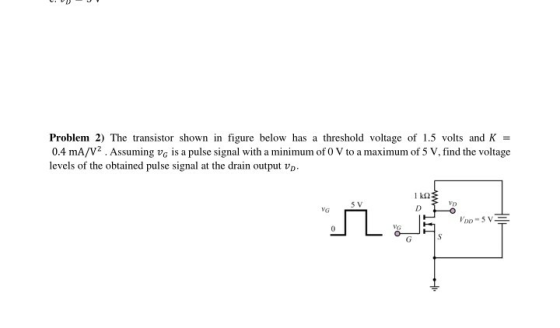

Problem 2) The transistor shown in figure below has a threshold voltage of 1.5 volts and K 0.4 mA/V2. Assuming vo is a pulse
