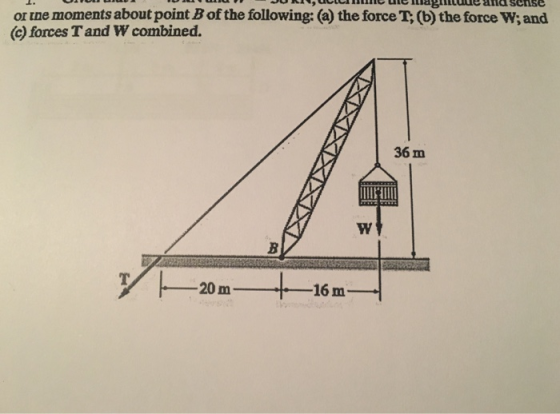

eeneuie maguue aifdscise or tne moments about point B of the following: (a) the force T,...

Question

Question

engineering Mechanical-Engineering

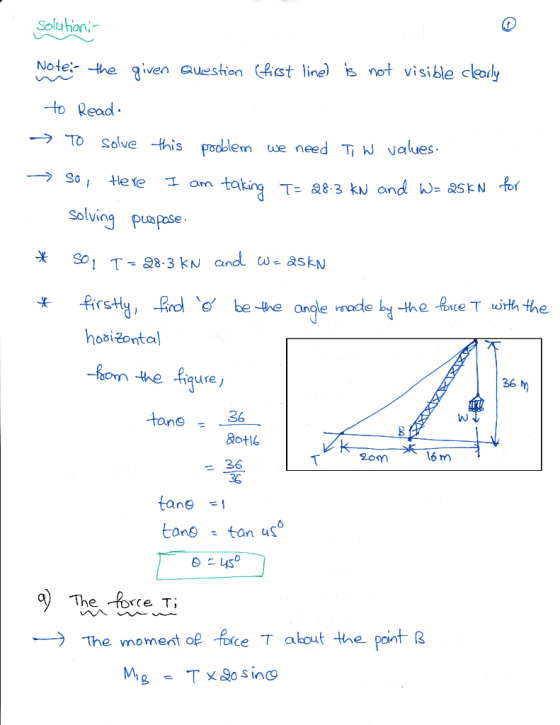

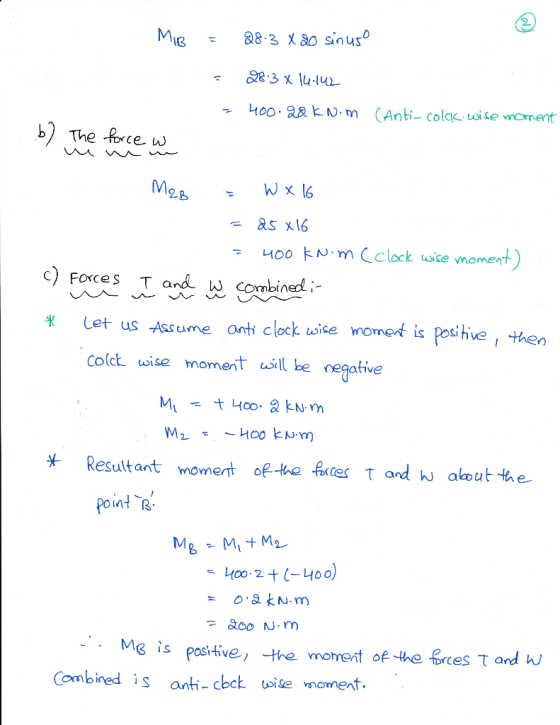

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

1. Find the moment about point O due to the force P. 2. Find the moment...

1. Find the moment about point O due to the force P. 2. Find the moment about point O due to the combined forces Q and R 3. Find the moment about point B due to the combined forces Q and R 4. Find the moment about point A due tot the combined forces Q and R 5. Are the moments about point O, B, A the same due to the combined forces Q and R. Why? 6. Don't the...
Force Couples and Moments

Two parallel 60Nforces are applied to a lever as shown. Determine the moment of the couple formed by the two forces:a) by resolving each force into horizontal and vertical components and adding the moments of the two resulting couples,b) by using the perpendicular distance between the two forces &c) by summing the moments of the two forces about point A.The answer for a, b and c is 12.39 Nm.
Q4) Find the moment produced by force Fi about point B Find the moment produced by...

Q4) Find the moment produced by force Fi about point B Find the moment produced by force Fs about point A Find the resultant moment about point A (The sum of all moments produced by all forces about point A) F2 = 300 N F, = 250 N 3 4 m Fs 500 N

If a rigid body rotates about point o, the sum of the moments of the external...

If a rigid body rotates about point o, the sum of the moments of the external forces acting on the body about point O equals which of the following? mag olca loa mao
(10 point) 74. Determine the sum of the moments created by the forces about point 35*

(10 point) 74. Determine the sum of the moments created by the forces about point 35*
Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram...

Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram (4 marks) c) Axial force diagram(4 marks) d) Bending moment diagram (4 marks) Question 1 (20 marks) Analyse the structure shown and determine the following: a) Reactions (8 marks) b) Shear force diagram (4 marks) c) Axial force diagram(4 marks) d) Bending moment diagram (4 marks) 25 kN/m 2C 3 m D 4 m 6 m Show your computations in the solution book then...

Determine the moments of force about O, in N-m], for the following cases a) r 130...

Determine the moments of force about O, in N-m], for the following cases a) r 130 mm], F=120 [N], 0=45°; b) r 0.2 [m], F=-80 [N], 0=115°; A r 27 [cm], F-(40î, 35) [kN]; A c) r-1 [m], F=5 [kN], 0=0°; d) e) r-0.5 m], F-15 [N, 0-180°.
please solve all three otherwise I will give negative rating. Force Facts at point B on...

please solve all three otherwise I will give negative rating. Force Facts at point B on the semicircular bent bar. O F = 6 kN 8.4 m Determine the moments of the force about points A and C in kN. m. magnitude direction kNm counterclockwise Mc KN.m magnitude direction clockwise Determine the shortest distances from points A and C to the line of action of the force in meters. da = m de= m Force Facts at point B on...
need solution step by step to question “H” (H) For the shaft of question (G) above, what are the X and Y forces on each of bearings B and E? Upward Y force on bearing E: Rey263 b Upward Y force...

need solution step by step to question “H” (H) For the shaft of question (G) above, what are the X and Y forces on each of bearings B and E? Upward Y force on bearing E: Rey263 b Upward Y force on bearing B: Rey1,838 b Outward X force on bearing E: Rex Outward X force on bearing B: Re1,569 b Answer Box 804 lb 36 REy Sum of Y moments around E = 0 Sum of Y Forces on...

only need to find axial, shear force, and bending moment Determine the general expressions for the moments of F about...

only need to find axial, shear force, and bending moment Determine the general expressions for the moments of F about point B and point O. Evaluate your expressions for F = 750 N, R = 2.4 m, theta = 30 degree, and phi = 15 degree.
