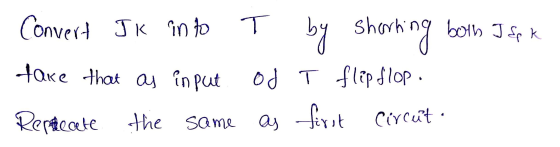

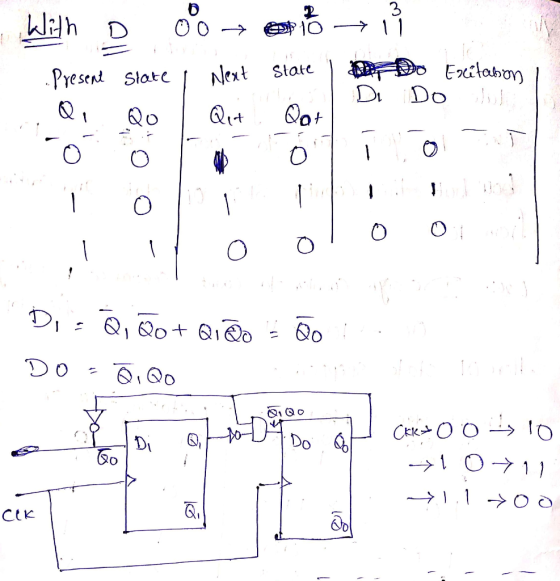

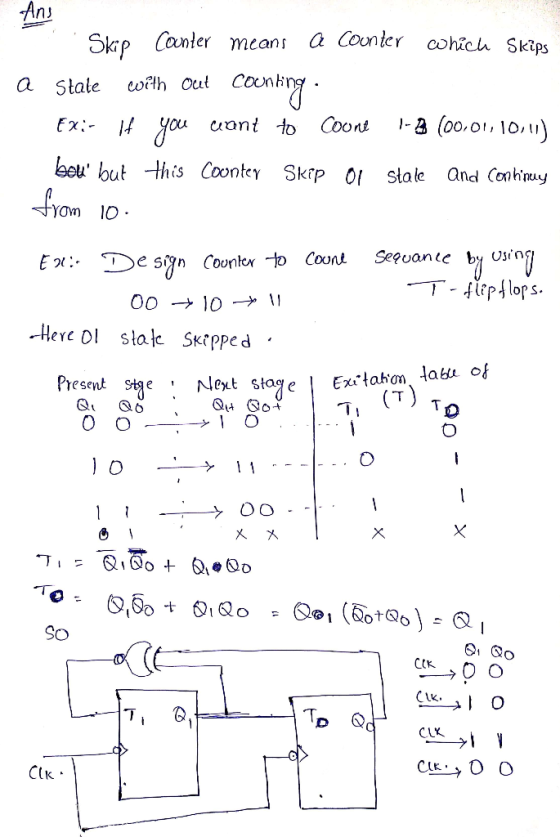

give question based examples upon skipping state counter with explanation.(use all jk,d,t)
give question based examples upon skipping state counter with explanation.(use all jk,d,t)
Homework Answers
Add Answer to:
give question based examples upon skipping state
counter with explanation.(use all jk,d,t)
Design serial (asynchronous) counter modulo 7 using synchronous flip-flops (T, D or JK). The counter should count up.
Design serial (asynchronous) counter modulo 7 using synchronous flip-flops (T, D or JK). The counter should count up.
3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop.
3. Design a counter with the following repeated binary sequence: 0,1,2,4,6. Use D flip-flop. 4. Design a counter to count with T flip-flops that goes through the following binary repeated sequence: 0,1,3,7,6,4. Find out the counter response towards the unused state. Illustrate the response with a state diagram. 5. Design a mod-7 counter (repeat binary sequence: 0,1,2,3,4,5,6) use JK flip-flop.
