A Rockwell A test was conducted on a material and a penetration depth of 0.15mm was...

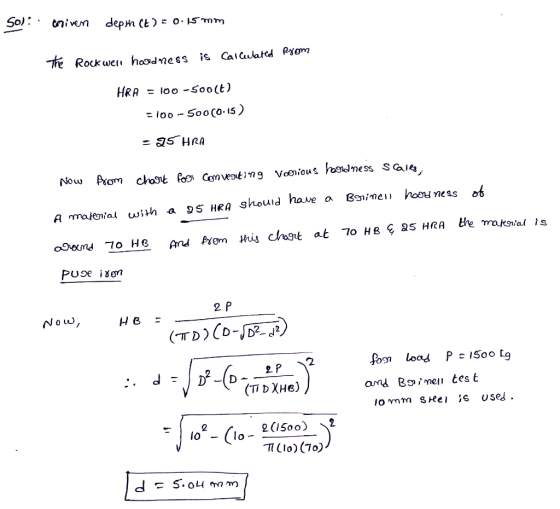

A Rockwell A test was conducted on a material and a penetration depth of 0.15mm was recorded. a) What is the hardness of the material? b) What material would typically have such a hardness value? c) If the Brinell hardness test were to be conducted on this material, estimate the indentation diameter if the load was 1500 kg.
Homework Answers
Add Answer to:
A Rockwell A test was conducted on a material and a penetration
depth of 0.15mm was...
Brief Background Penetration hardness is a measure of a materials resistance to indentation. The Rockwell Hardness...
Brief Background Penetration hardness is a measure of a materials resistance to indentation. The Rockwell Hardness test is a standard method for characterizing this property of a material. It uses a small indenter, either a hardened ball or diamond cone (Brale), which is pressed into the sample while measuring depth of penetration. There are several scales to select from as indicated in textbook or the chart found in lab. Each scale refers to the type of indenter used and the...
Please explain every thing. Please write in the paper and then take a photo. 2.59 The Brinell hardness test is used to measure the indentation hardness of materials. It involves penetration of an in...
Please explain every thing.
Please write in the paper and then take a photo.
2.59 The Brinell hardness test is used to measure the indentation hardness of materials. It involves penetration of an indenter, in the form of a ball of diameter D (mm), under a load P (kg) as shown in Fig. 2.13a. The Brinell hardness number (BHN) is defined as 2P where A (in mm2) is the spherical surface area and d (in mm) is the diameter of...
A Brinell hardness test is performed on a cold-worked aluminum alloy (yield stress = 200 MPa)...
A Brinell hardness test is performed on a cold-worked aluminum alloy (yield stress = 200 MPa) using a 500 kg load and a standard spherical indenter. The Brinell hardness recorded is approximately 65 kg/mm2. Use GEOMETRICAL METHOD to determine the depth of penetration. Do not use the formular in solving.
5. (10 points) The Rockwell hardness of a metal is determined by impressing a point into...
The Rockwell hardness of a metal is determined by impressing a point into the surface of the metal and then measuring the depth of penetration of point. Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 70 and standard deviation 3. (Rockwell hardness is measured on a continuous scale.)(1). If a specimen is acceptable only if its hardness is between 67 and 75, what is the probability that a randomly chosen specimen has an acceptable hardness? (2)....
Problem 2: Vickers hardness test was conducted on a material with an applied laod of 5kg....
Problem 2: Vickers hardness test was conducted on a material with an applied laod of 5kg. If the measured diagonal distances of the indentation made by the diamond indenter, dl and d2 were 190.9 um and 192.6 um respectivelyte Windows calculate: Go to Settings to activate Windo 1. The Vickers hardness of the material (HV)
1. The standard penetration tests were conducted at a depth of 6.5 m in the normally consolidated...
I do not understand other commentary and ask.1. The standard penetration tests were conducted at a depth of 6.5 m in the normally consolidated coarse sand deposit and the blow count was 35. A USA donut hammer was employed in the test. The G.W.Τ. is located at a depth of 4.0m. The unit weight of sand above the G.W.T. is 17.5kN/m3, and the saturated unit weight of sand below the G.W.T. is 19.0kN/m3. a) Evaluate Noo and (N)so, b) estimate...
Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 71 and standard deviation 3.
The Rockwell hardness of a metal is determined by impressing a hardened point into the surface of the metal and then measuring the depth of penetration of the point. Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 71 and standard deviation 3. (a) If a specimen is acceptable only if its hardness is between 70 and 74, what is the probability that a randomly chosen specimen has an acceptable hardness? (Round your answer to four decimal...
Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 69 and standard deviation 3.
The Rockwell hardness of a metal is determined by impressing a hardened point into the surface of the metal and then measuring the depth of penetration of the point. Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 69 and standard deviation 3. (a) If a specimen is acceptable only if its hardness is between 68 and 73, what is the probability that a randomly chosen specimen has an acceptable hardness? (Round your answer to four decimal...
Calculate the corrected standard penetration test blow count (N1)60 and estimate the soil density using the...
Calculate the corrected standard penetration test blow count (N1)60 and estimate the soil density using the information given below: Standard Penetration N-value = 15 Test was conducted in coarse granular soil with a safety hammer, 4 inch diameter borehole, standard sampler, and 25 feet of drilling rods. The test was conducted at a depth of 20 feet. The water table was 5 feet below the ground surface. Assume a moist unit weight of 105 pounds per cubic foot above the...
2GLE 418-12 runs A Standard penetration test taas been come in a museum statum having unit...
2GLE 418-12 runs A Standard penetration test taas been come in a museum statum having unit weight = 15 pef to a diet of 33 the lovel table is a below the sound level antais 121 . The hizo follows: 0-6°= 8.6-12* = 12. 12-08 = 15 h . Dercermine the c SPT value (N ) if the testing is assumed toamis te e . Further the were conducted using US sole dionut fame in asce m with a standard...
Brief Background Penetration hardness is a measure of a materials resistance to indentation. The Rockwell Hardness test is a standard method for characterizing this property of a material. It uses a small indenter, either a hardened ball or diamond cone (Brale), which is pressed into the sample while measuring depth of penetration. There are several scales to select from as indicated in textbook or the chart found in lab. Each scale refers to the type of indenter used and the...
Please explain every thing.
Please write in the paper and then take a photo.
2.59 The Brinell hardness test is used to measure the indentation hardness of materials. It involves penetration of an indenter, in the form of a ball of diameter D (mm), under a load P (kg) as shown in Fig. 2.13a. The Brinell hardness number (BHN) is defined as 2P where A (in mm2) is the spherical surface area and d (in mm) is the diameter of...
The Rockwell hardness of a metal is determined by impressing a point into the surface of the metal and then measuring the depth of penetration of point. Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 70 and standard deviation 3. (Rockwell hardness is measured on a continuous scale.)(1). If a specimen is acceptable only if its hardness is between 67 and 75, what is the probability that a randomly chosen specimen has an acceptable hardness? (2)....
Problem 2: Vickers hardness test was conducted on a material with an applied laod of 5kg. If the measured diagonal distances of the indentation made by the diamond indenter, dl and d2 were 190.9 um and 192.6 um respectivelyte Windows calculate: Go to Settings to activate Windo 1. The Vickers hardness of the material (HV)
I do not understand other commentary and ask.1. The standard penetration tests were conducted at a depth of 6.5 m in the normally consolidated coarse sand deposit and the blow count was 35. A USA donut hammer was employed in the test. The G.W.Τ. is located at a depth of 4.0m. The unit weight of sand above the G.W.T. is 17.5kN/m3, and the saturated unit weight of sand below the G.W.T. is 19.0kN/m3. a) Evaluate Noo and (N)so, b) estimate...
The Rockwell hardness of a metal is determined by impressing a hardened point into the surface of the metal and then measuring the depth of penetration of the point. Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 71 and standard deviation 3. (a) If a specimen is acceptable only if its hardness is between 70 and 74, what is the probability that a randomly chosen specimen has an acceptable hardness? (Round your answer to four decimal...
The Rockwell hardness of a metal is determined by impressing a hardened point into the surface of the metal and then measuring the depth of penetration of the point. Suppose the Rockwell hardness of a particular alloy is normally distributed with mean 69 and standard deviation 3. (a) If a specimen is acceptable only if its hardness is between 68 and 73, what is the probability that a randomly chosen specimen has an acceptable hardness? (Round your answer to four decimal...
2GLE 418-12 runs A Standard penetration test taas been come in a museum statum having unit weight = 15 pef to a diet of 33 the lovel table is a below the sound level antais 121 . The hizo follows: 0-6°= 8.6-12* = 12. 12-08 = 15 h . Dercermine the c SPT value (N ) if the testing is assumed toamis te e . Further the were conducted using US sole dionut fame in asce m with a standard...
