Provide a breadboard schematic and expected output timing diagram showing how your circuit should behave Using...

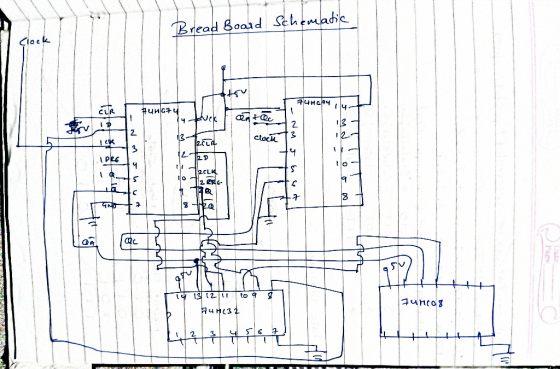

Provide a breadboard schematic and expected output timing diagram showing how your circuit should behave

Using any combination of the following components:

2 74HC00 quad 2-input NAND gate IC
1 74HC04 hex inverter IC
2 74HC08 quad 2-input AND gate IC
2 74HC32 quad 2-input OR gate IC
3 74HC74 dual D positive edge triggered flip-flop IC
1 74HC86 quad 2-input XOR gate IC
1 74HC157 quad 2-input multiplexer IC
1 CD74HCT390 dual decade counter IC
1 71256 32Kx8 SRAM IC
8 LED
10 220 Ω resistor
5 3.3k Ω resistor
1 8-pin DIP switch

1. a)design the following 3-bit counter that will cycles through prime numbers that can be represented by 3 bits. Treat all non-prime numbers as don't care states.

1. b) With LEDs; Initialize your counter, in turn, to each non-prime number and determine how your circuit behaves.

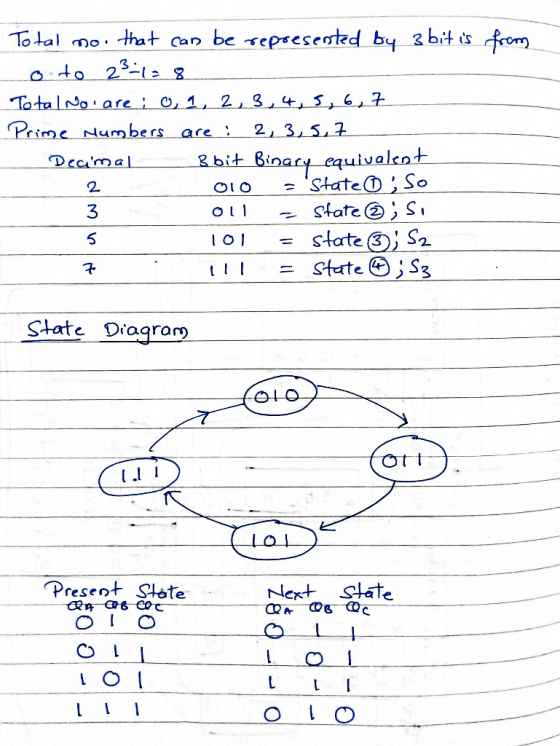

1. c) Provide a complete state diagram for your counter showing the mapping of all non-prime numbers into the main count sequence.

0 0
Add a comment Improve this question
Answer #1

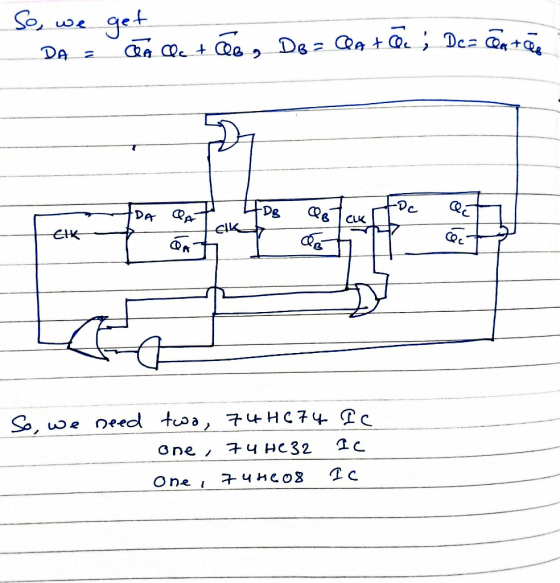

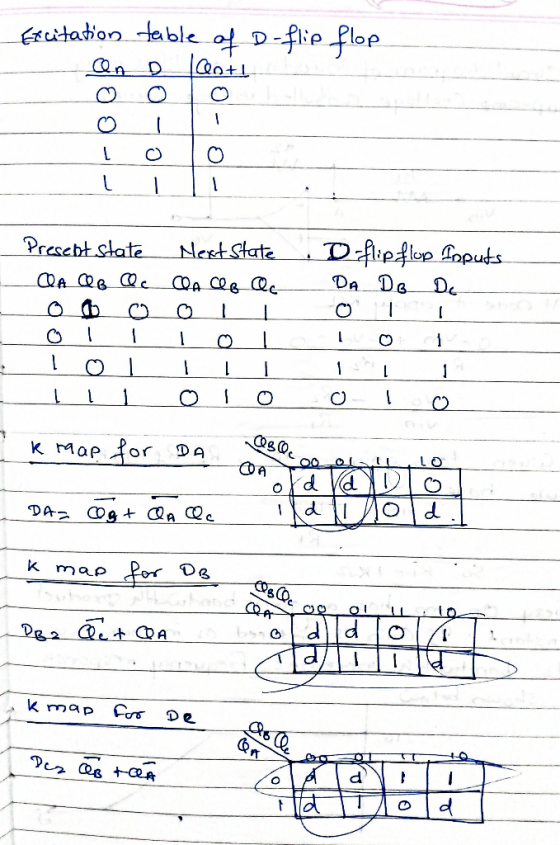

Solution is little bit lengthy

Thumbs me up please.
