Suppose a microscope's 1.7 mm focal length objective produces a magnification of -2.1. a)What is the...

Suppose a microscope's 1.7 mm focal length objective produces a magnification of -2.1.

a)What is the object distance for this configuration in mm? answer do=2.5

b) How far (in cm) from the objective should a 10.00 cm focal length eyepiece be placed to produce a further fourfold (4.00) magnification?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

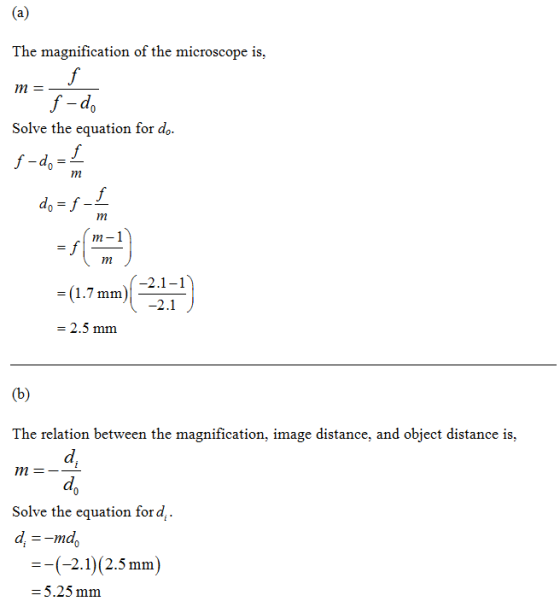

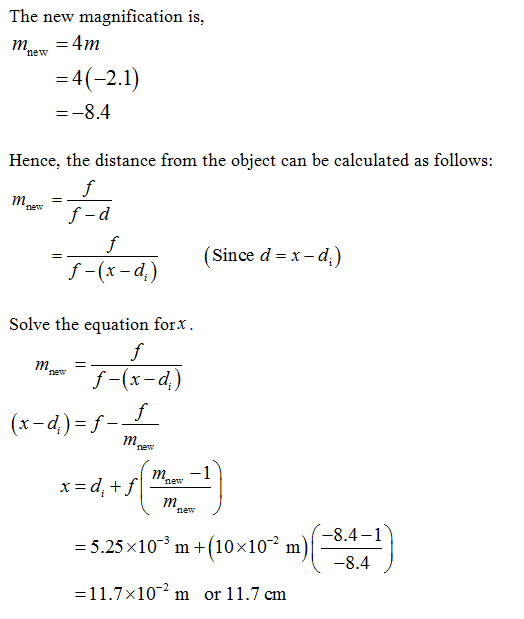

Answer #1

0 0
Add a comment
