A 2-pole, 20MW single phase induction machine used for driving a train has a slip of...
A 2-pole, 20MW single phase induction machine used for driving a train has a slip of 4.12%, when it is delivering 80% of its rated torque and 15.6MW. The rotor speed at the rated torque/power is 3415 rpm.

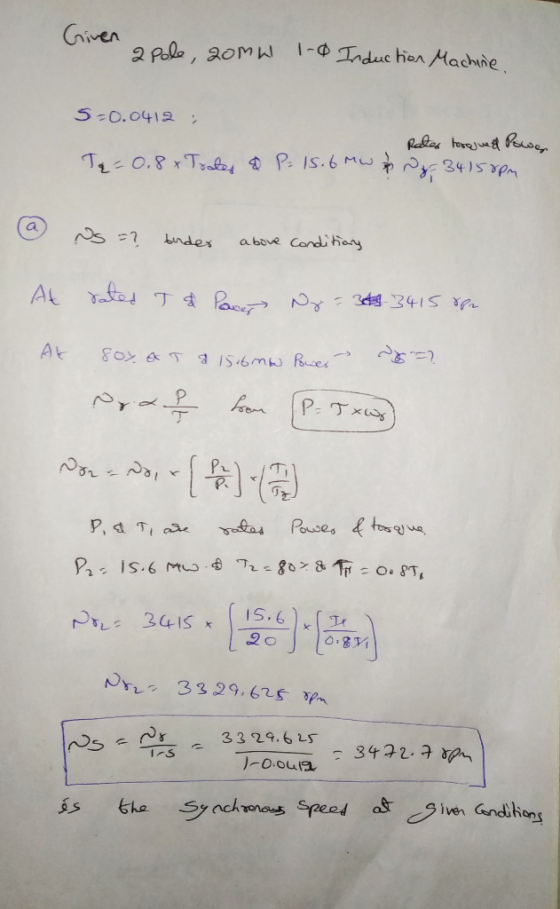

(i) Determine the synchronous speed of the motor, under the above conditions, as well as the frequency required by the power electronics in the drive

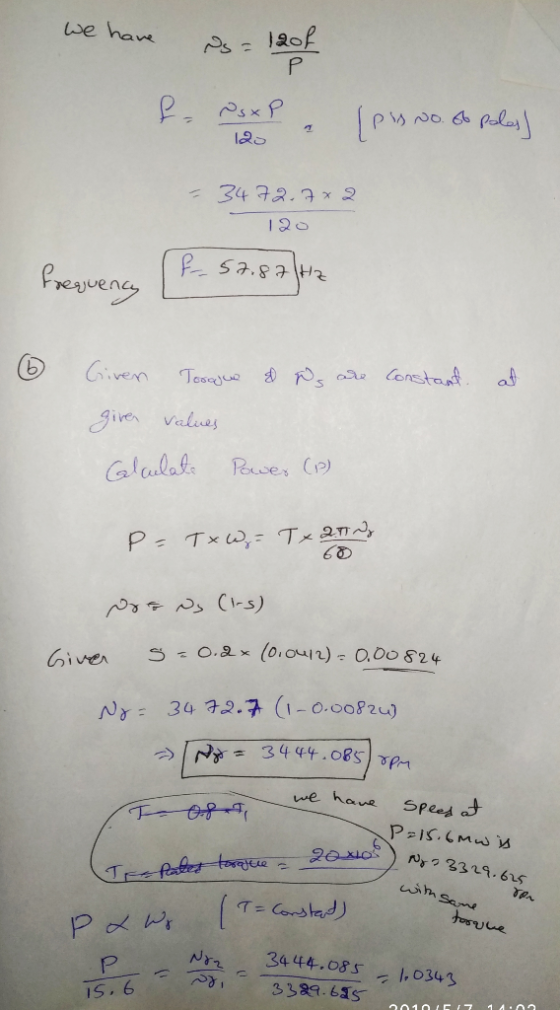

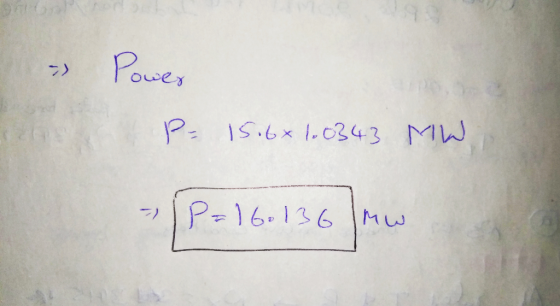

(ii) If the torque and synchronous speed were kept constant under the above conditions, calculate the load power that the motor would be supplying, if the slip was reduced by a fifth (i.e. 20%).
Homework Answers
Add Answer to:
A 2-pole, 20MW single phase induction machine used for driving a
train has a slip of...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is...
A 4-pole, 60 hz, 3-phase induction motor has a blocked rotor reactance per phase that is four times the rotor resistance per phase. At what speed will the motor develop maximum torque? 1200 rpm 1500 rpm 1350 rpm 1620 rpm What is the ratio of maximum to full load torque in a motor having slip of 4% at full load and 20% at maximum torque? 15 3 2.6 5.2 If a motor has a slip of 2% at rated voltage,...
A four-pole Y-connected, 415 V, 50 Hz, induction motor has phase equivalent circuit parameters of R1=...
A four-pole Y-connected, 415 V, 50 Hz, induction motor has phase equivalent circuit parameters of R1= 2 ohms. R2=2.2 ohms. X1=X2=4 ohms. X(motor)=90 ohms Under rated condition, the rotor slip is 6%. (i) What is the rotor speed and rotor electrical frequency under the rated conditions; (ii) Calculate the stator input current, power factor, and electromagnetic torque under these conditions; (iii) The machine is running at rated conditions and it is to be stopped by switching the two stator leads....
A 3 phase, 440 V, 6 pole, 970 rpm, 50 Hz, Y-connected induction motor has the...
A 3 phase, 440 V, 6 pole, 970 rpm, 50 Hz, Y-connected induction motor has the following parameters referred to the stator Rs = 0.2 Ω, Rr'一0.15 Ω, xs-x-= 0.4 Ω The stator to rotor turns ratio is 3.5 The motor speed is controled by the Static Scherbius Drive. The drive is designed for a speed range of 30% below the synchronous speed. The maximum value of firing angle is 170'. Calculate (i) Turns ratio of the transformer (ii) Torque...
Consider a 2-pole, 3-phase induction machine, with a rated frequency of 60Hz, producing the rated torque...
Consider a 2-pole, 3-phase induction machine, with a rated frequency of 60Hz, producing the rated torque at slip s= 3.0percent, when supplied with rated voltages. Under the rated torque condition, calculate the rotor speed wm in rad/s.
3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has...
3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has equivalent resistance and equivalent reactance per phase of 0.3000and 0.78 000OTHE blocked rotor voltage per phase is 175V. If the rotor is turning at 1425 rpm, determine synchronous speed, slip, rotor impedance, rotor current, total three phase apparent power crossing the air gap, its active and reactive components, rotor power factor, shaft speed, mechanical power developed and developed torque. (30 Points)
A 2 pole ac induction motor operates on a 480 V three phase power system. The...
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
4. A 50-kW, 460-V, 50-Hz, two-pole induction motor has a slip of 5 percent when operating...
4. A 50-kW, 460-V, 50-Hz, two-pole induction motor has a slip of 5 percent when operating a full-load conditions. At full-load conditions, the friction and windage losses are 700 W, and the core losses are 600 W. Find the following values for full-load conditions: (10 pts.) (a) The shaft speed in rpm (b) The output power in horse power (c) The load torque in lb-ft (d) The induced torque in lb-ft (e) The rotor frequency in hertz
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω,...
A 480 V, 60 Hz, 4-pole-pair, three-phase, delta-connected induction motor has the following parameters: R1=0.42 Ω, R2=0.23 Ω, X1=0.48 Ω, X2=0.29 Ω, Xm=29.71 Ω where: R1 is the stator resistance R2 is the rotor resistance reflected in the stator; X1 is the stator leakage inductance; X2 is the rotor leakage inductance reflected in the stator; Xm is the magnetising inductance; The rotational losses are 2450 W. The motor drives a mechanical load at a speed of...
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the fo...
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
A 3-phase 50Hz 2-pole 440V (L-L rms) induction motor drive has a rated speed of 2955...
A 3-phase 50Hz 2-pole 440V (L-L rms) induction motor drive has a rated speed of 2955 rpm and rated torque of 35 Nm. This motor drives a load with a torque characteristic that increases linearly with speed such that it equals the load torque at the rated speed. It draws a current of 2.1 A(rms) per phase at the rated voltage at a power factor of 0.81 (lagging). The stator resistance Rs = 2.0 ohms. At the rated operating speed,...
A 3 phase, 440 V, 6 pole, 970 rpm, 50 Hz, Y-connected induction motor has the following parameters referred to the stator Rs = 0.2 Ω, Rr'一0.15 Ω, xs-x-= 0.4 Ω The stator to rotor turns ratio is 3.5 The motor speed is controled by the Static Scherbius Drive. The drive is designed for a speed range of 30% below the synchronous speed. The maximum value of firing angle is 170'. Calculate (i) Turns ratio of the transformer (ii) Torque...
Consider a 2-pole, 3-phase induction machine, with a rated frequency of 60Hz, producing the rated torque at slip s= 3.0percent, when supplied with rated voltages. Under the rated torque condition, calculate the rotor speed wm in rad/s.
3) A four pole 75 HP 50 Hz induction motor with an efficiency of 93.4% has equivalent resistance and equivalent reactance per phase of 0.3000and 0.78 000OTHE blocked rotor voltage per phase is 175V. If the rotor is turning at 1425 rpm, determine synchronous speed, slip, rotor impedance, rotor current, total three phase apparent power crossing the air gap, its active and reactive components, rotor power factor, shaft speed, mechanical power developed and developed torque. (30 Points)
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with a full load shaft speed of 3400 rpm. The motor currently operates a 3510 rpm. determine the mechanical power the motor develops in hp using the slip method.
A 2 pole ac induction motor operates on a 480 V three phase power system. The motor is rated a 50 hp and 460 V with...
4. A 50-kW, 460-V, 50-Hz, two-pole induction motor has a slip of 5 percent when operating a full-load conditions. At full-load conditions, the friction and windage losses are 700 W, and the core losses are 600 W. Find the following values for full-load conditions: (10 pts.) (a) The shaft speed in rpm (b) The output power in horse power (c) The load torque in lb-ft (d) The induced torque in lb-ft (e) The rotor frequency in hertz
Please solve this question. Thank you.
A two-pole, 75kW, 440 V, 50 Hz, Y-connected, three-phase squirrel cage induction motor has the following parameters, in Ω/phase referred to the stator: R1-0.075, XI 0.17, xm-72, R2-0.065 and X-0.17. Its rated slip is 4%. Assume that the mechanical losses are 1 kW and the core losses are 1.1 kW. Compute: a. The rated input current b. The rated power factor. c. The pullout torque d. The induced and load torques at rated conditions....
