If v(t) = 120Vrms*cos(377t+60) i(t) = 2Arms*cos(377t)

Find the instantaneous power, average power, power factor and complex power.

engineering Electrical-Engineering

Answer 1

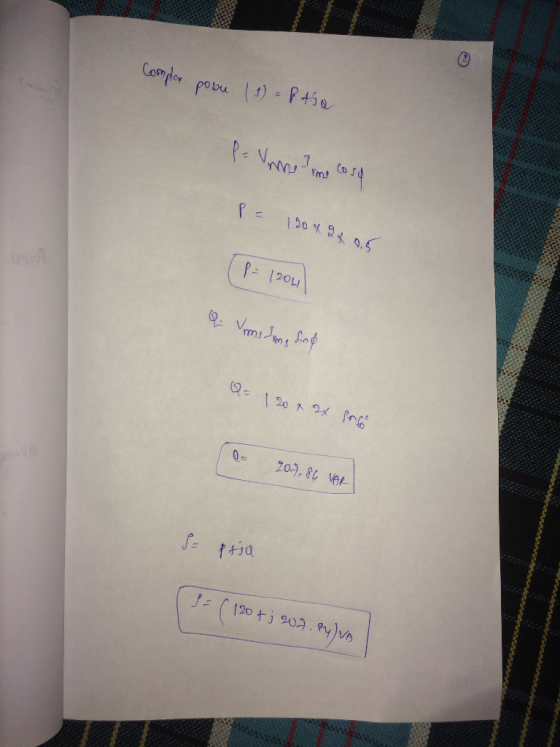

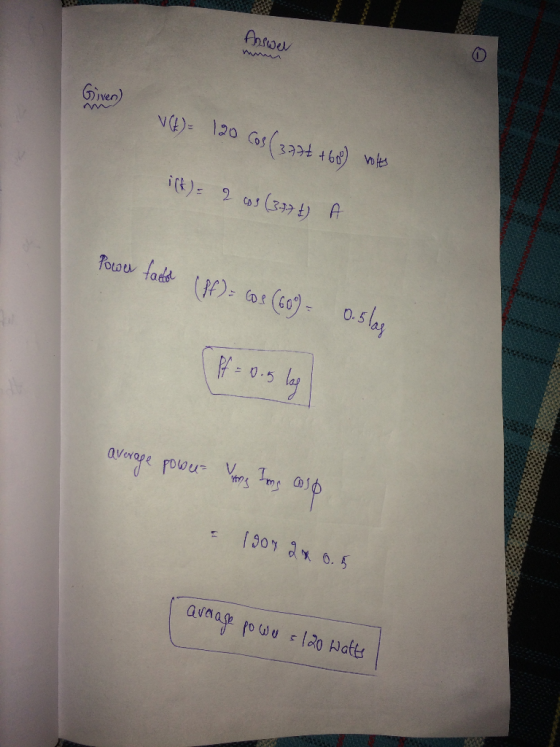

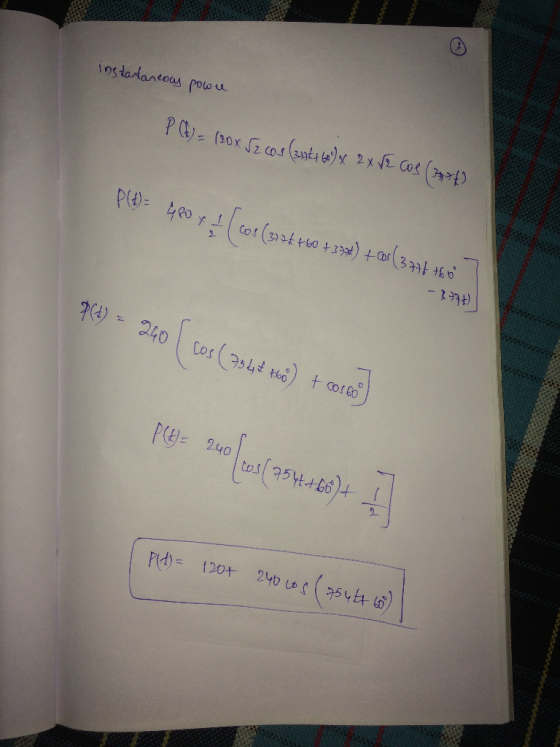

Answer #1

Answer 2
