Q A power plant located at Penang has been generated by Brayton cycle to operate gas...

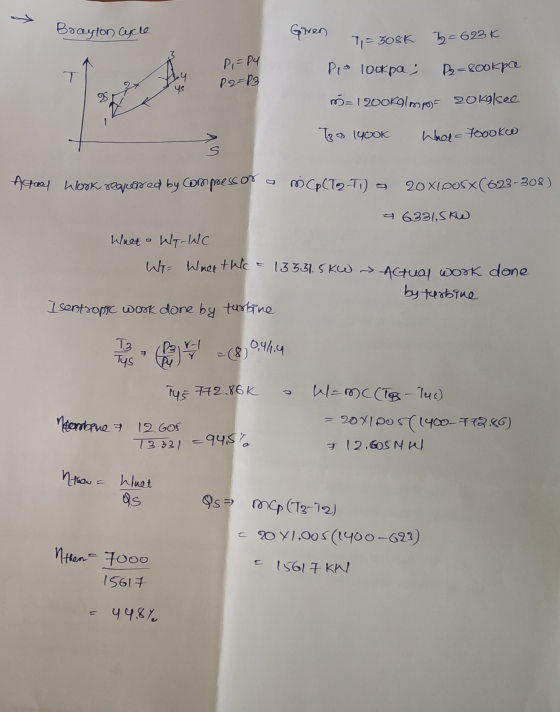

Q A power plant located at Penang has been generated by Brayton cycle to operate gas turbine involved air as the working fluid of the plant. Fresh air has been supplied to the compressor at 35°C and 100 kPa, while entered the combustion chamber at 350°C and 0.8 MPa with flow rate of 1200 kg/min and leaves the chamber at 1127°C. However, the power output for the plant has been measured during the experiment is 70000 kW Assume constant properties for air at 300 K with cv = 0.718 kJ/kg-K, cp = 1.005 kJ/kg-K, R = 0.287 kJ/kg-K, k = 1.4. Determine: (a) the isentropic efficiency of the turbine. (b) the thermal efficiency.
Homework Answers
Add Answer to:
Q A power plant located at Penang has been generated by Brayton
cycle to operate gas...
Need help for this Brayton Cycle problem. Please help me 4. (30 marks) A gas-turbine power plant operates on the simple...
Need help for this Brayton Cycle problem.
Please help me
4. (30 marks) A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of 100 kPa and 800 kPa. The T-s diagram of this cycle is shown in Fig. 2. Air enters the compressor at 30°C and leaves at 330°C at a mass flow rate of 200 kg/s. The maximum cycle temperature is 1400 K. During operation of the cycle, the net power output is measured...
A combined cycle power plant has a net power output of 272 MW. Air enters the...
A combined cycle power plant has a net power output of 272 MW. Air enters the compressor of the Brayton cycle at 100 kPa and 17oC. The pressure ratio is 19, the turbine inlet temperature is 1660 K and the gases leaving the turbine are used to heat the steam of the Rankine cycle to 600oC and 5 MPa. The combustion gas leaves the heat exchanger (HRSG) at 390 K and the condenser pressure is 20 kPa. The isentropic efficiency...
WGTC η.cn = 95% Gas turbine cycle (GTc) e,I = 100 kW Compressor Turbine Generator 께,- Combustor ...
wGTC η.cn = 95% Gas turbine cycle (GTc) e,I = 100 kW Compressor Turbine Generator 께,- Combustor Pi 100 kPa Regenerator Evaporator Turbine Generator Vapor turbine cycde (VTC) T, = T, + 20 K Condenser 10 Pump Saturated liquid A combined cycle plant operates with a topping gas turbine and a bottoming vapor turbine cycle. The working fluid in the vapor turbine cycle is water. The gas turbine cycle (GTC) electric generator produces 100kW of electric power For air use...
A gas-turbine power plant operating on an ideal Brayton cycle has a pressure ratio of 9....
A gas-turbine power plant operating on an ideal Brayton cycle has a pressure ratio of 9. The gas temperature is 438 K at the compressor inlet and 1582 K at the turbine inlet. Utilizing the air-standard assumptions (A-17 tables), determine (1) The gas temperature at the exit of the compressor K (2) The gas temperature at the exit of the turbine K (3) Work input to the compressor kJ/kg (4) Work output of the turbine kJ/kg (5) Total heat input...
Design a small gas turbine engine to produce 150 kW of net power. Use an air-standard...
Design a small gas turbine engine to produce 150 kW of net power. Use an air-standard analysis (constant gas properties) and assume air enters the compressor at 100kPa and 20°C. The compressor pressure ratio is 8, the maximum cycle temperature is 800°C, and the cold air stream leaves the regenerator 10°C cooler than the hot air stream at the inlet of the regenerator. Assume a compressor isentropic efficiency of 87% and a turbine isentropic efficiency of 93%. Determine the rates...
3a. A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of...
3a. A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of 14.7 and 200 psia. Air enters the compressor at 77°F at a rate of 28 lbm/s and leaves at 750°F. Fuel is burned in the combustion chamber and the combustion gases enter the turbine at 2000°F. Combustion gases leave the turbine whose isentropic efficiency is 85 percent. Treating the combustion gases as air and using constant specific heats evaluated at 900°F, determine (a) the...
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for...
A combined cycle gas turbine/vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency. --Given Values--...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy...
A combined cycle gas turbine / vapor power plant uses the turbine exhaust as the energy source for the boiler. Each power system uses a single turbine. The gas power system is modeled as an ideal air-standard Brayton cycle. The vapor power system is modeled as an ideal Rankine cycle. Given specific operating conditions determine the temperature and pressure at each state, the rate of heat transfer in the boiler, the power output of each turbine, and the overall efficiency....
2. Consider a combined gas steam power cycle. The gas cycle is a simple Brayton cycle...
2. Consider a combined gas steam power cycle. The gas cycle is a
simple Brayton cycle that has a pressure ratio of 7. Air enters at
9.8 kg / s at the compressor at 15 ° C and 100 kPa, and at the gas
turbine at 950 ° C. The steam cycle is a Rankine cycle with
overheating between the pressure limits of 6 MPa and 10 kPa. The
water vapor is heated in the heat exchanger at a rate...
Use a simple Brayton cycle gas turbine as the baseline for the following questions. Use a...
Use a simple Brayton cycle gas turbine as the baseline for the
following questions. Use a cold-air-standard analysis (R=0.287
kJ/kg-K, k=Cp/Cv=1.40, Cp= (k/(k-1))*R = 1.0045 kJ/kg-K) with the
following specifications:
Use a simple Brayton cycle gas turbine as the baseline for the following questions. Use a cold-air-standard analysis (R=0.287 kJ/kg-K, k=Cp/Cv=1.40, Cpr (k/(k-1))*R = 1.0045 kJ/kg-K) with the following specifications: Mass Inlet Press. Pressure Turbine Isentropic Eff Neglect combustion chemistry Flowrate T p Ratio Inlet T Comp Turb Neglect minor...
Need help for this Brayton Cycle problem.
Please help me
4. (30 marks) A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of 100 kPa and 800 kPa. The T-s diagram of this cycle is shown in Fig. 2. Air enters the compressor at 30°C and leaves at 330°C at a mass flow rate of 200 kg/s. The maximum cycle temperature is 1400 K. During operation of the cycle, the net power output is measured...
wGTC η.cn = 95% Gas turbine cycle (GTc) e,I = 100 kW Compressor Turbine Generator 께,- Combustor Pi 100 kPa Regenerator Evaporator Turbine Generator Vapor turbine cycde (VTC) T, = T, + 20 K Condenser 10 Pump Saturated liquid A combined cycle plant operates with a topping gas turbine and a bottoming vapor turbine cycle. The working fluid in the vapor turbine cycle is water. The gas turbine cycle (GTC) electric generator produces 100kW of electric power For air use...
Design a small gas turbine engine to produce 150 kW of net power. Use an air-standard analysis (constant gas properties) and assume air enters the compressor at 100kPa and 20°C. The compressor pressure ratio is 8, the maximum cycle temperature is 800°C, and the cold air stream leaves the regenerator 10°C cooler than the hot air stream at the inlet of the regenerator. Assume a compressor isentropic efficiency of 87% and a turbine isentropic efficiency of 93%. Determine the rates...
3a. A gas-turbine power plant operates on the simple Brayton cycle between the pressure limits of 14.7 and 200 psia. Air enters the compressor at 77°F at a rate of 28 lbm/s and leaves at 750°F. Fuel is burned in the combustion chamber and the combustion gases enter the turbine at 2000°F. Combustion gases leave the turbine whose isentropic efficiency is 85 percent. Treating the combustion gases as air and using constant specific heats evaluated at 900°F, determine (a) the...
2. Consider a combined gas steam power cycle. The gas cycle is a
simple Brayton cycle that has a pressure ratio of 7. Air enters at
9.8 kg / s at the compressor at 15 ° C and 100 kPa, and at the gas
turbine at 950 ° C. The steam cycle is a Rankine cycle with
overheating between the pressure limits of 6 MPa and 10 kPa. The
water vapor is heated in the heat exchanger at a rate...
Use a simple Brayton cycle gas turbine as the baseline for the
following questions. Use a cold-air-standard analysis (R=0.287
kJ/kg-K, k=Cp/Cv=1.40, Cp= (k/(k-1))*R = 1.0045 kJ/kg-K) with the
following specifications:
Use a simple Brayton cycle gas turbine as the baseline for the following questions. Use a cold-air-standard analysis (R=0.287 kJ/kg-K, k=Cp/Cv=1.40, Cpr (k/(k-1))*R = 1.0045 kJ/kg-K) with the following specifications: Mass Inlet Press. Pressure Turbine Isentropic Eff Neglect combustion chemistry Flowrate T p Ratio Inlet T Comp Turb Neglect minor...
