A three-phase blanced load connected in Y consumes 3kW(total of the 3 phases) at a power...

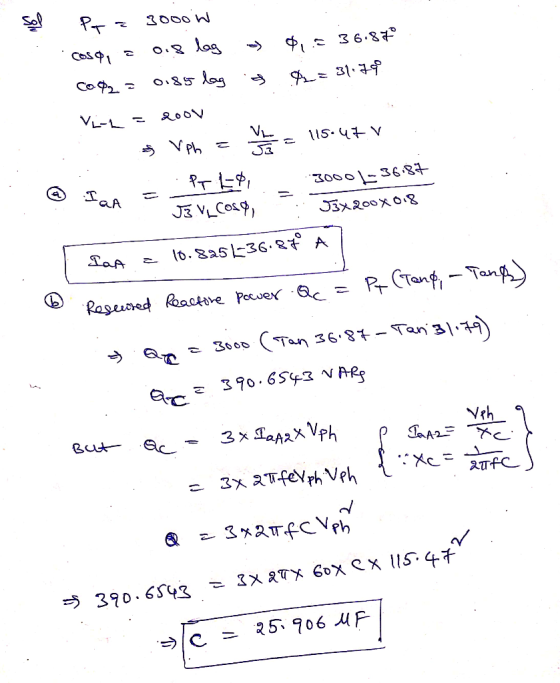

A three-phase blanced load connected in Y consumes 3kW(total of the 3 phases) at a power factor of 0.8(-). A balanced Y load of capacitors will be added in parallel so that the power factor of the combination improves to 0.85(-). If the frecuency is 60 Hz and the line-to-line voltages a a balanced set of 200 Vrms, get:
a) The magnitude of the line current IaA that the line consumes before placing the capacitors.
b) The value of the capacitance required by phase in Y
Homework Answers
