A load draws a current from a voltage source. the equation of the current and voltage...
A load draws a current from a voltage source. the
equation of the current and voltage are I = 10coswt and V =
220sinwt. What is power?
choices:
a. 2200w
b. 0
c. 1556w
d. 1320w

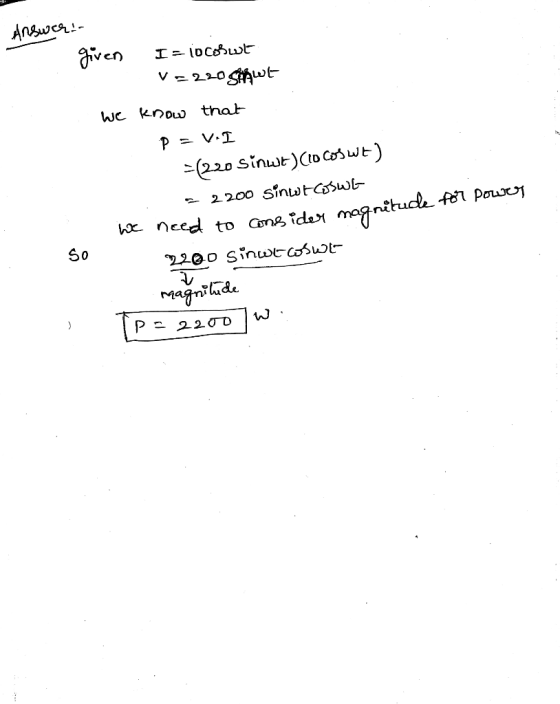

Homework Answers
Add Answer to:
A load draws a current from a voltage source. the
equation of the current and voltage...
A large transformer operating at no-load draws an exciting current of 5 A when the primary is connected to a 240 V, 50 Hz source (HELP)
Question 1: A large transformer operating at no-load draws an exciting current of 5 Awhen the primary is connected to a 240 V, 50 Hz source. From wattmeter testit is known that the iron losses are equal to 300 W. At short circuit the voltage applied is 24 Volts , the short-circuit current is 35 Amperes, the power meter reads 400 W. Calculate:i) The reactive power absorbed by the core;ii) The value of Rc and Xm of the magnetising branch; iii)...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a cur...
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws 120 w at a lagging PF of 0.75, Load 2 draws 75 VA at a leading PF of 0.6 and Load 3 draws 100 VA at a leading PF of 0.8. Determine the complex power consumed by each load. Calculate the rms current phasor for each load. a. b.
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first...
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
3. If the voltage and current (both are rms values) supplied to a circuit or load...
3. If the voltage and current (both are rms values) supplied to a circuit or load by a source are Varm) = 460?0° V, Is(m)-1414L-45° A. Determine the a) the power supplied by the source which is dissipated as heat or energy in the circuit, b) the power stored in the reactive components and c) the power factor angle and power factor 4. An ideal transformer is rated to deliver 460 KVA at 380 V to a customer T Customer's...
A balanced 30, delta load, draws a phase current of 9 Arms from a 600Vrms, 30...

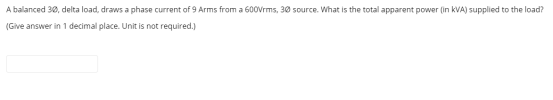

A balanced 30, delta load, draws a phase current of 9 Arms from a 600Vrms, 30 source. What is the total apparent power (in kVA) supplied to the load? (Give answer in 1 decimal place. Unit is not required.)
load. Find A certain practical de voltage source can provide a current of 20 A when...
load. Find A certain practical de voltage source can provide a current of 20 A when it is (momentarily) short-circuited, and can provide of 58 W to a 20 (a) The open-circuit voltage (b) The maximum power it could deliver to a well-chosen R (c) What is the value of that RL? V = Pras- RL =
A DC permanent magnet motor draws 5A from a 200V DC source, under no-load conditions, and draws 50A from the same source, and has a speed of 2500rpm at full load. Ra = 1.4Ω. Determine: a) the rotation...
A DC permanent magnet motor draws 5A from a 200V DC source, under no-load conditions, and draws 50A from the same source, and has a speed of 2500rpm at full load. Ra = 1.4Ω. Determine: a) the rotation loss* (W) b) the no-load speed (rpm) c) the output torque (Nm) d) the efficiency of the motor at full load. (*Assume the rotational loss is proportional to speed!)
A single Phase load draws 10 kW from a 410 V line at a power factor...
A single Phase load draws 10 kW from a 410 V line at a power factor of 0.707 lagging. Determine: (a) The rms current (b) The reactive power required by the load (c) We want to correct the power factor to be 0.9 lagging by adding a capacitor, what will be the new reactive power? (d) draw the power triangle with the old and new reactive powers
Problem 7 Three three-phase wye-connected loads are in parallel across a three-phase supply. The first load draws a current of 10 A at pf- 0.93 (leading), and the second and third loads (each) draw a current of 20 A at pf= 0.85 (lagging). Suppose the line-to-line voltage is 240 V. Compute the following: a) The transmission line current b) The load power factor c) The complex power supplied by the source
Problem 7 Three three-phase wye-connected loads are in parallel...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws 120 w at a lagging PF of 0.75, Load 2 draws 75 VA at a leading PF of 0.6 and Load 3 draws 100 VA at a leading PF of 0.8. Determine the complex power consumed by each load. Calculate the rms current phasor for each load. a. b.
1. A 480 V (rms) source supplies power to two loads connected in parallel. The first load draws 80 kW and 30 kVAR. The second load draws 100 kVA at a power factor of 0.6 lagging. a) Draw the power triangle for the first load and determine its power factor; b) Determine the current (both magnitude and phase, using the source voltage as the phase reference) drawn by the first load; c) Draw the power triangle for the second load...
3. If the voltage and current (both are rms values) supplied to a circuit or load by a source are Varm) = 460?0° V, Is(m)-1414L-45° A. Determine the a) the power supplied by the source which is dissipated as heat or energy in the circuit, b) the power stored in the reactive components and c) the power factor angle and power factor 4. An ideal transformer is rated to deliver 460 KVA at 380 V to a customer T Customer's...
A balanced 30, delta load, draws a phase current of 9 Arms from a 600Vrms, 30 source. What is the total apparent power (in kVA) supplied to the load? (Give answer in 1 decimal place. Unit is not required.)
load. Find A certain practical de voltage source can provide a current of 20 A when it is (momentarily) short-circuited, and can provide of 58 W to a 20 (a) The open-circuit voltage (b) The maximum power it could deliver to a well-chosen R (c) What is the value of that RL? V = Pras- RL =
