Consider a 32-bit microprocessor that has on-chip 16Kbyte four-way set associative cache. Assume that cache has...
- Consider a 32-bit microprocessor that has on-chip 16Kbyte four-way set associative cache. Assume that cache has a line size of four 32-bit words.

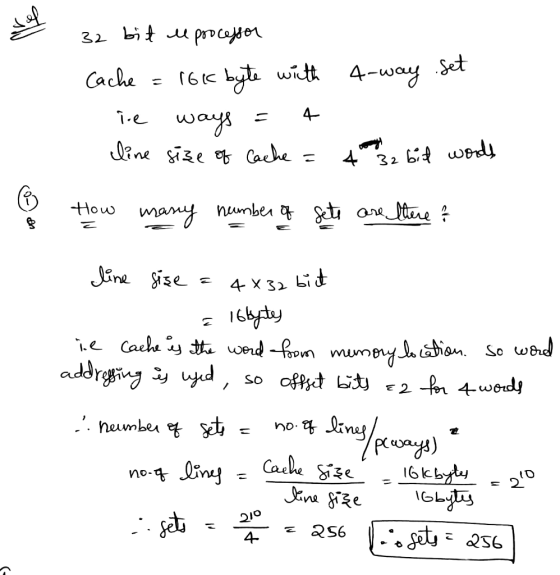

- How many number of set are there?

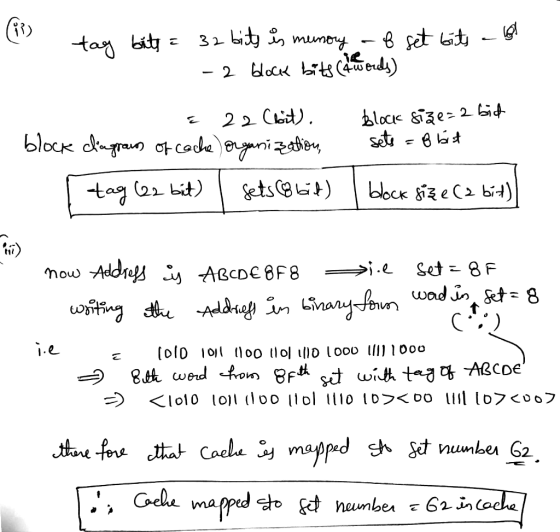

- Sketch block diagram of this cache showing its organization.
- Where in the cache is the word from memory location ABCDE7F4.
Homework Answers
Add Answer to:
Consider a 32-bit microprocessor that has on-chip 16Kbyte
four-way set associative cache. Assume that cache has...
Q2. Consider a four-way set associative cache with a data size of 64 KB. The CPU...
Q2. Consider a four-way set associative cache with a data size of 64 KB. The CPU generates a 32-bit byte addressable memory address. Each memory word contains 4 bytes. The block size is 16 bytes. Show the logical partitioning of the memory address into byte offset, cache index, and tag components.
Make an assumption that your cache is either: Fully associative Direct mapped Two-way set-associative Four-way set-associative...
Make an assumption that your cache is either: Fully associative Direct mapped Two-way set-associative Four-way set-associative determine: the size of the Tag and Word for Associative cache; OR the size of the Tag, Line, and Word for Direct-Mapped Cache ; Or the size of Tag, Set, and Word for K-Way Set-Associative Cache. You may make any assumptions necessary including the number of Words in each block (recommend 2 or 4 or 8)
1. 2-way Set Associative Cache Memory Consider a hypothetical machine with 1K words of cache memo...
1. 2-way Set Associative Cache Memory Consider a hypothetical machine with 1K words of cache memory. They are in two-way set associative organization, with cache block size of 128 words, using LRU replacement algorithm. Suppose the cache hit time is 9ns, the time to transfer the first word from main memory to cache is 50ns, while subsequent words require 10ns/word. Consider the following read pattern (in blocks of 128 words, and block id starts from 0): 1 2 3 5...
1. 2-way Set Associative Cache Memory Consider a hypothetical machine with 1K words of cache memory....
1. 2-way Set Associative Cache Memory Consider a hypothetical machine with 1K words of cache memory. They are in two-way set associative organization, with cache block size of 128 words, using LRU replacement algorithm. Suppose the cache hit time is 9ns, the time to transfer the first word from main memory to cache is 50ns, while subsequent words require 10ns/word. Consider the following read pattern (in blocks of 128 words, and block id starts from 0): 1 2 3 5...
1. A cache holds 64 words where each word is 4 bytes. Assume a 32 bit...
1. A cache holds 64 words where each word is 4 bytes. Assume a 32 bit address. There are four different caches a. A direct-mapped cache with block size = 16 words b. 2-way set-associative cache with block size = 8 words c. 4-way set-associative cache with block size=4 words d. A fully associative cache with block size = 16 words. Complete the table for each cache. Cache a Cache be Cache Cache de 16 Number of bits needed for...
Suppose a computer using set associative cache has 216 words of main memory and a cache...
Suppose a computer using set associative cache has 216 words of main memory and a cache of 32 blocks, and each cache block contains 8 words. 3. If this cache is 2-way set associative, what is the format of a memory address as seen by the cache, that is, what are the sizes of the tag, set, and word fields? If this cache is 4-way set associative, what is the format of a memory address as seen by the cache?...
Assume a cache with 2048 blocks, a 4-word block size, and a 32-bit address. For each...
Assume a cache with 2048 blocks, a 4-word block size, and a 32-bit address. For each of the following configurations, find the total number of bits for each cache block and the total numbers of bits for the entire cache. a. Direct-mapped b. Two-way set associative c. Four-way set associative d. Fully-associative
A 256kiB (2^18 bytes) cache has a block size of 32 bytes and is 32-way set-associative....
A 256kiB (2^18 bytes) cache has a block size of 32 bytes and is 32-way set-associative. How many bits of a 32-bit address will be in the Tag, Index, and Bock Offset?
0. (10 Points) A four-core i7 has a 8 MB L3 cache 8-way set associative of...
0. (10 Points) A four-core i7 has a 8 MB L3 cache 8-way set associative of block size 32 bytes. It uses 30-bit block address (36-bit physical address, 6-bit block offset). What is the addressing organization of L3? ANSWER Block Address - Block offset Index Tag-
A four-way set-associative cache has lines of 32 bytes and a total size of 4 kB....
A four-way set-associative cache has lines of 32 bytes and a total size of 4 kB. The 32-MB main memory is byte addressable. Show the format of main memory addresses.
1. A cache holds 64 words where each word is 4 bytes. Assume a 32 bit address. There are four different caches a. A direct-mapped cache with block size = 16 words b. 2-way set-associative cache with block size = 8 words c. 4-way set-associative cache with block size=4 words d. A fully associative cache with block size = 16 words. Complete the table for each cache. Cache a Cache be Cache Cache de 16 Number of bits needed for...
Suppose a computer using set associative cache has 216 words of main memory and a cache of 32 blocks, and each cache block contains 8 words. 3. If this cache is 2-way set associative, what is the format of a memory address as seen by the cache, that is, what are the sizes of the tag, set, and word fields? If this cache is 4-way set associative, what is the format of a memory address as seen by the cache?...
0. (10 Points) A four-core i7 has a 8 MB L3 cache 8-way set associative of block size 32 bytes. It uses 30-bit block address (36-bit physical address, 6-bit block offset). What is the addressing organization of L3? ANSWER Block Address - Block offset Index Tag-
