"Pretend that you are in a lab which asks you to put a 50Ω resistor into...

"Pretend that you are in a lab which asks you to put a 50Ω resistor into a circuit; however, all of the resistors that are supplied are 100Ω resistors. How would you connect the available resistances to attempt to get the smaller value asked for? Include a diagram along with your work for full credit.'

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

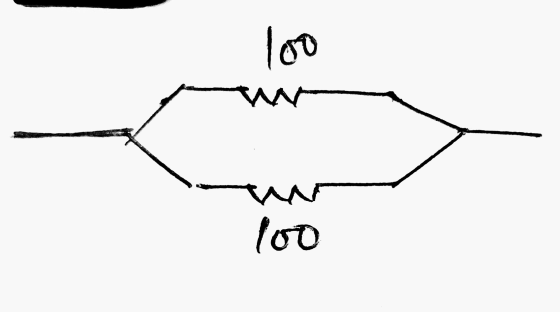

we can make equivalent resistance of 50 by 100 ohm on connecting both of them in parallel way

check:

1/R = 1/100 + 1/100

R = 50 ohm

we need to connect two 100 ohm resistors in parallel to have final resistance of 50 ohm

=====

Comment before rate in case any doubt, will reply for sure.. goodluck
