Calculate the pathloss for the following models at frequency of 850MHz and 1450MHz, at distance of...

Calculate the pathloss for the following models at frequency of 850MHz and 1450MHz, at distance of 1km and 20 km. Assume that base station antenna height is 50 m and mobile antenna height is 1.5 m.

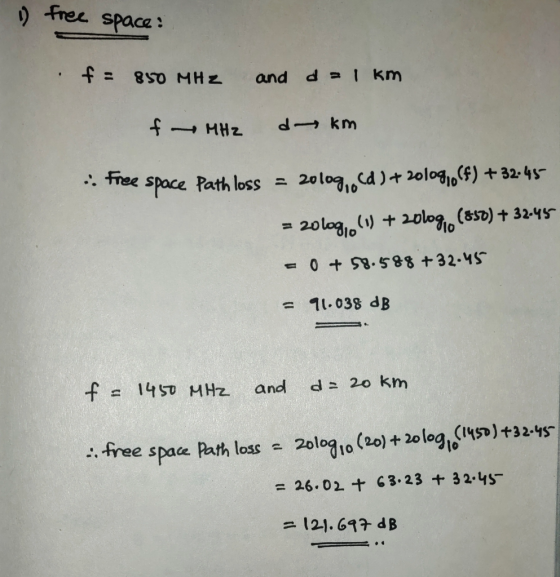

1. Free-Space

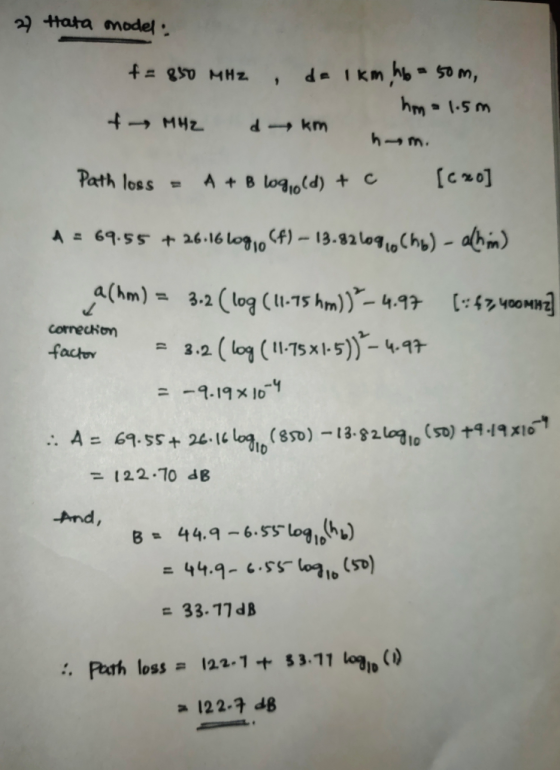

2. Hata

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
