A single diode cannot be used to full-wave rectify an AC voltage.
Yes, A single diode cannot be used to rectify the full wave of the input signal because it allows conduction only in one direction but it can rectify the half-wave of the input signal.
A half-wave rectifier is such a circuit that uses one diode to rectify the half cycle of the input voltage waveform.

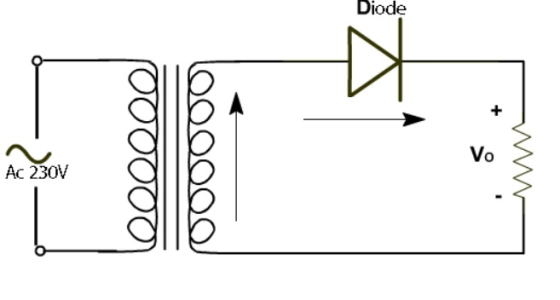

The half-wave rectifier circuit is shown below

Please thumbs up
5. A diode is used to rectify an ac voltage from a transformer and charge a 1uF capacitor. Estimate how long it will take the capacitor to discharge from 3 volts to 1.5 volts (once ac voltage is turned off) a) with no load b) with a scope probe across the capacitor. (note: never is not the correct answer) 6. Repeat problem 5 but use the largest value 3 volt super capacitor available from digikey.com.
A full-wave diode rectifier supplies a 30Ω resistive load from a 400Hz, 110V single-phase AC supply. A capacitor is connected in parallel with the load. Calculate the capacitance required if the maximum peak-to-peak voltage ripple across the resistor is to be restricted to 10V. You may assume that the RC product of the resistance and capacitance will be significantly greater than the period of the AC waveform. State any other assumptions made.
1. A single-phase, full wave rectifier has an AC source with Vm=24 volts at f=60 Hz. Determine the 2th harmonic of the output voltage. 2. The average current of a single phase bridge rectifier at its DC side is 6.94 amps. What is the average current flowing through each diode?
A single-phase half-wave ac voltage controller feeds a load of R = 40 Ω with (maximum voltage of 230V), 50 Hz. Firing angle of thyristor is 60°. Determine (a) rms value of output voltage (b) power delivered to load and input pf and (c) average input current. (a) The rms value of load voltage. And repeat the above for A single phase Full-wave ac voltage controller?
AC supply voltage 150 Vrms. 50 Hz Design Full wave rectifier to provide, a) Average voltage 10 V b) Average voltage 100 V (Assume any de current rating value, also assume acceptable ripple voltage 0.1 to 0.5), also assume constant voltage drop model.
AC voltage signal
PROBLEM 2 [10 points] A square wave AC voltage signal is shown in the following. Determine its average value and RMS value. Show all details for full credit. ev 5ms - + -6V ------ 5ms – 1) Determine the RMS value of the voltage signal. VRMs = 2) Determine the average value of the voltage signal Vavg = _ [5 points) [5 points)
1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms (AC) and an output voltage of 20 V DC. Its design must include a transformer, a diode bridge (4 diodes 1N4001), a load RL = 510 Ω and a capacitor (filter) of 470 μF in parallel with the load. 2.Graph the voltages vL and vD (in LTSpice0, and determine the variation (“ripple”).
Analyze a DC series phase-controlled motor drive with single-phase, full wave, controlled AC/DC rectifier in continuous conduction mode (CCM) of operation. Draw the motor voltage and current waveforms and write the equations (instantaneous and averaged). Please note that the waveforms and equations have been presented in class for a DC separately-excited motor drive.
Consider the single-phase full-wave rectifier circuit shown below with a sinusoidal input vs 120 Vrms at 60 Hz and a load R= 250 TiD DAZ 40 AD AD ww D (a) (b) Consider adding a filter capacitor to the full-wave rectifier in Problem 3 to reduce the output ripple (a) Calculate the minimum value of capacitance required to reduce the output voltage ripple to 1 % of the average value (b) Calculate the average output current (c) Calculate the average...
A DC and AC voltmeter are used to measure the output voltage of a filter circuit connected to full wave rectifier circuit operating at 60Hz, supplying load of 5hp DC Motor (1hp=0.75kW). The readings of the two voltmeters are 250V and 2.0V respectively. Calculate a) The ripple factor of the filter. b) The value of filter capacitor.
