In a darkened room, a burning candle is placed 1.84 m from white wall. A lens...

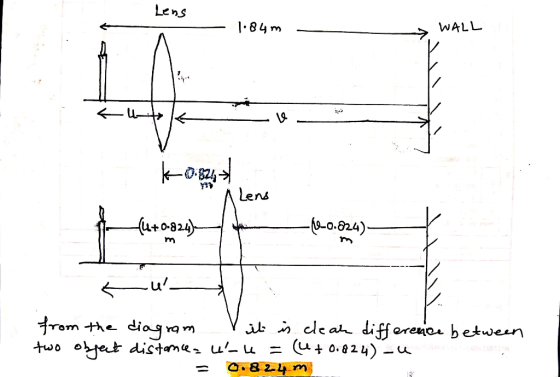

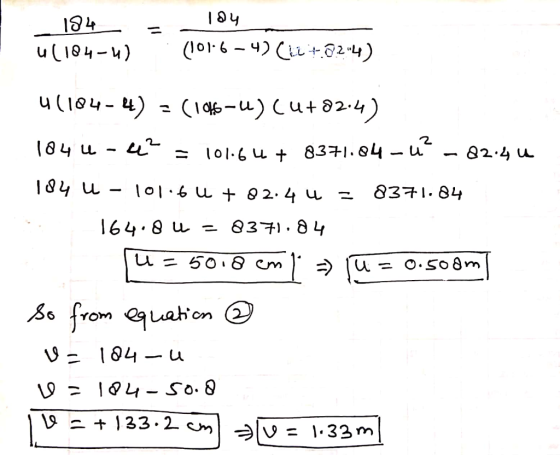

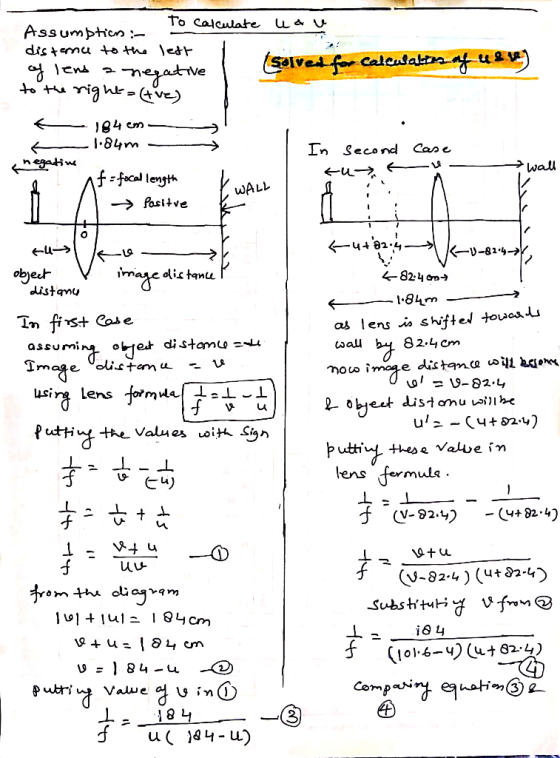

In a darkened room, a burning candle is placed 1.84 m from white wall. A lens is placed between candle and wall at a location that causes a larger, inverted image to form on the wall. When the lens is moved 82.4 cm toward the wall, another image of the candle is formed.

How far apart are the two object distances that produce these images? Answer in units of m

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
