For the system of four capacitors shown in the figure below, find the following. (Use C1...
For the system of four capacitors shown in the figure below, find the following. (Use C1 = 4.00 µF, C2 = 1.00 µF, C3 = 5.00 µF, and C4 = 3.00 µF for the figure.) A circuit consists of a 90.0 V battery and four capacitors. The wire begins at the positive terminal of the battery and splits into two parallel branches before reconnecting and then ending at the negative terminal of the battery. Each branch contains two capacitors in series. One branch contains capacitors with capacitances C1 µF and C2 µF. The other branch contains capacitors with capacitances C3 µF and C4 µF.

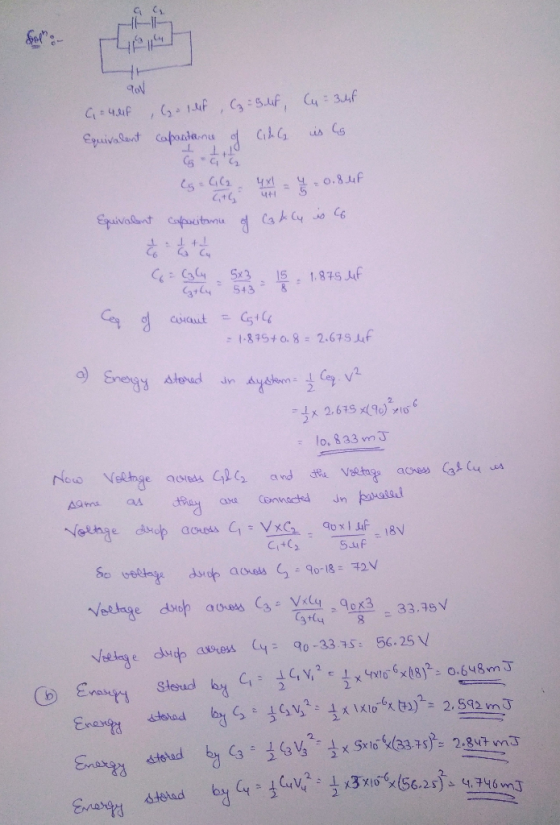

(a) the total energy stored in the system (mJ)?
(b) the energy stored by each capacitor
C1 (mJ)?
C2 (mJ)?
C3 (mJ)?
C4 (mJ)?

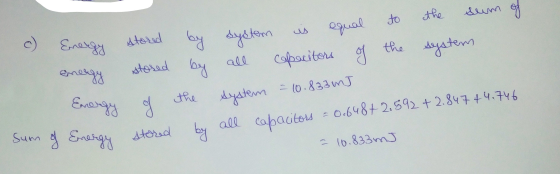

(c) Compare the sum of the answers in part (b) with your result to part (a) and explain your observation.
Homework Answers
i hope it will clear all your doubts please
comment if you have any further question
please rate positively
