home / study / science / physics / physics questions and answers / a velocity selector consists of electric and magnetic fields described by the expressions e ... Question: A velocity selector consists of electric and magnetic fields described by the expressions E with ... A velocity selector consists of electric and magnetic fields described by the expressions E with arrow = E k and B with arrow = B j, with B = 10.0 mT. Find the value of E such that a 780-eV electron moving in the negative x direction is undeflected. kV/m

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
home / study / science / physics / physics questions and answers / a velocity selector...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A velocity selector consists of electric and magnetic fields described by the expressions = E and...

    A velocity selector consists of electric and magnetic fields described by the expressions = E and = B ĵ, with B = 14.0 mT. Find the value of E such that a 810-eV electron moving in the negative x direction is undeflected. Answer must be in Kv/m

  • (a) A velocity selector consists of electric and magnetic fields described by the expressions E =...

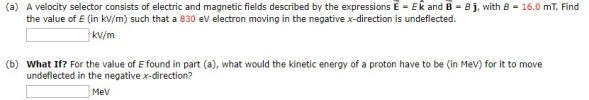

    (a) A velocity selector consists of electric and magnetic fields described by the expressions E = Ek and B-BJ, with B = 16.0 mT. Find the value of E (in kV/m) such that a 830 ev electron moving in the negative x-direction is undeflected kV/m (b) What If? For the value of E found in part (a), what would the kinetic energy of a proton have to be (in MeV) for it to move undeflected in the negative x-direction? Mev

  • A velocity selector consists of electric and magnetic fields described by the expressions E = E...

    A velocity selector consists of electric and magnetic fields described by the expressions E = E and B = B ĵ, with B = 24.0 mT. Find the value of E (in kV/m) such that a 800 eV electron moving in the negative x-direction is undeflected. How do you determine the speed of the electron if you know its kinetic energy? kV/m (b) What If? For the value of E found in part (a), what would the kinetic energy of...

  • The velocity selector in in a mass spectrometer consists of a uniform magnetic field oriented at...

    The velocity selector in in a mass spectrometer consists of a uniform magnetic field oriented at 90 degrees to a uniform electric field so that a charge particle entering the region perpendicular to both fields will experience an electric force and a magnetic force that are oppositely directed. If the uniform magnetic field has a magnitude of 11.2 mT, then calculate the magnitude of the electric field that will cause a proton entering the velocity selector at 16.1 km/s to...

  • The velocity selector in in a mass spectrometer has a uniform 0.0506 T magnetic field oriented...

    The velocity selector in in a mass spectrometer has a uniform 0.0506 T magnetic field oriented in the negative y direction and a uniform 294 kV/m electric field oriented in the positive z direction. What is the kinetic energy (in electron volts) of the electron that will pass through this velocity selector in the +x direction undeflected?

  • The velocity selector in in a mass spectrometer has a uniform 0.0642 T magnetic field oriented...

    The velocity selector in in a mass spectrometer has a uniform 0.0642 T magnetic field oriented in the negative y direction and a uniform 238 kV/m electric field oriented in the positive z direction. What is the kinetic energy (in electron volts) of the electron that will pass through this velocity selector in the +x direction undeflected ?

  • A velocity selector is used in accelerator mass spectrometry to select particles based on their speed.

    A velocity selector is used in accelerator mass spectrometry to select particles based on their speed. The velocity selector is composed of orthogonal electric and magnetic fields, such that particles with the correct charge to mass ratio and speed will be unaffected, and other particles will be deflected. If the Electric Field is oriented down, What is the direction of the Magnetic Field? A charged particle moves through the velocity selector at a constant speed in a straight line. The electric field...

  • home / study / science / physics / physics questions and answers / question 2 write...

    home / study / science / physics / physics questions and answers / question 2 write down the equations of motion of a bead on a wheel: (a) from the frame of the ... Question: Question 2 Write down the equations of motion of a bead on a wheel: (a) from the frame of the whe... Question 2 Write down the equations of motion of a bead on a wheel: (a) from the frame of the wheel (b) from the...

  • Singly ionized (one electron removed) atoms are accelerated and then passed through a velocity selector consisting...

    Singly ionized (one electron removed) atoms are accelerated and then passed through a velocity selector consisting of perpendicular electric and magnetic fields. The electric field is 157 V/m and the magnetic field is 3.12×10−2 T . The ions next enter a uniform magnetic field of magnitude 1.78×10−2 T that is oriented perpendicular to their velocity. Part A How fast are the ions moving when they emerge from the velocity selector? Part B If the radius of the path of the...
