Show how winding of delta-Y Transformer or Y-delta Transformer an be arranged in a way that...

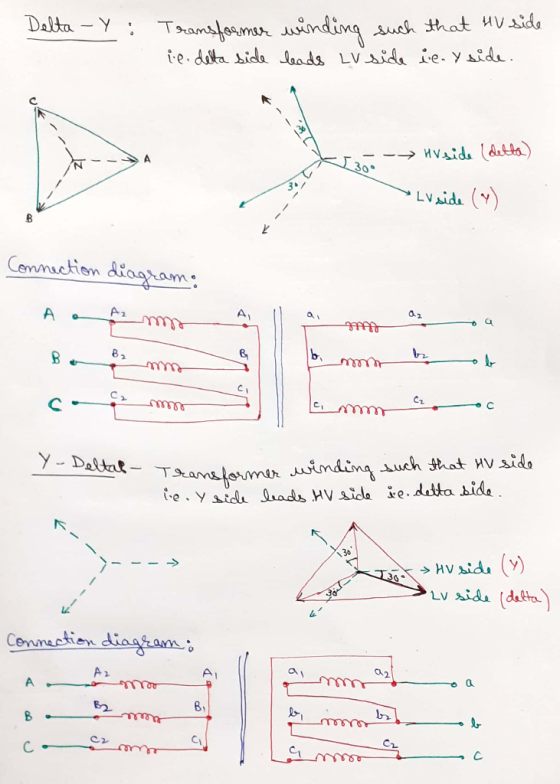

Show how winding of delta-Y Transformer or Y-delta Transformer an be arranged in a way that always high voltage side lead the low voltage side if positive sequence is applied.
Homework Answers
Add Answer to:
Show how winding of delta-Y Transformer or Y-delta Transformer
an be arranged in a way that...
