a) Determine Ecell (in V) for a cell composed of a Ag electrode in a solution...

a) Determine Ecell (in V) for a cell composed of a Ag electrode in a solution of Ag+ coupled to a standard hydrogen electrode (SHE) under standard conditions. Report your answer to three decimal places in standard notation (i.e. 1.234 V)

Ag+(aq) + e− ⇌ Ag(s) E° = 0.800 V

b) Determine Ecell (in V) at 298.15 K for a cell composed of a Ag electrode in a solution of 0.528 M Ag+ coupled to a platinum electrode in a solution where the [H+] is 1.870 M and the partial pressure of H2 is 0.426 atm. Report your answer to three decimal places in standard notation (i.e. 1.234 V).

science   chemistry
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

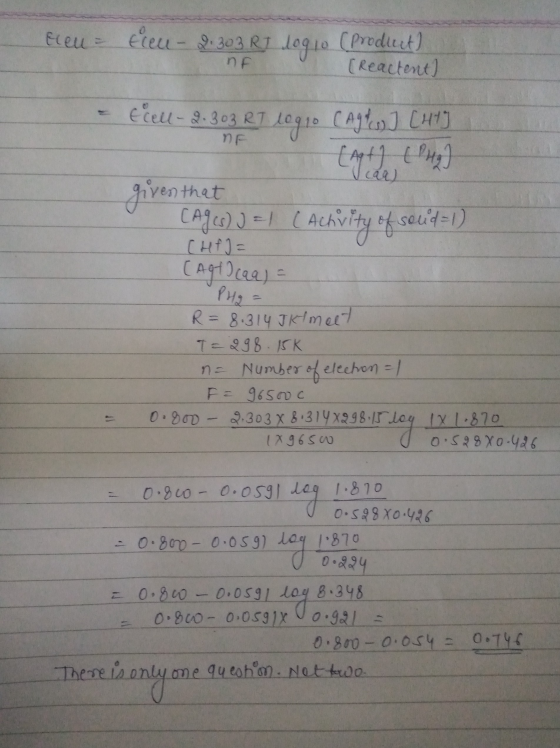

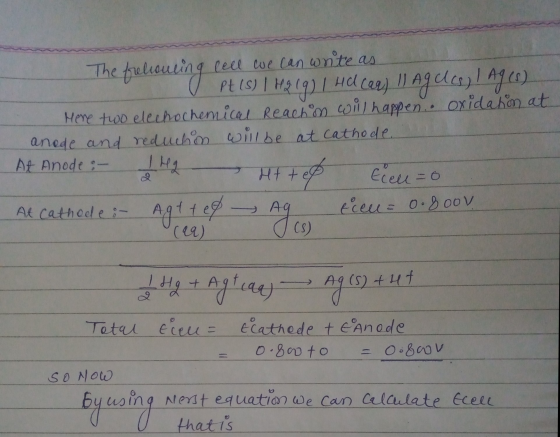

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
a) Determine Ecell (in V) for a cell composed of a Ag electrode in a solution...
