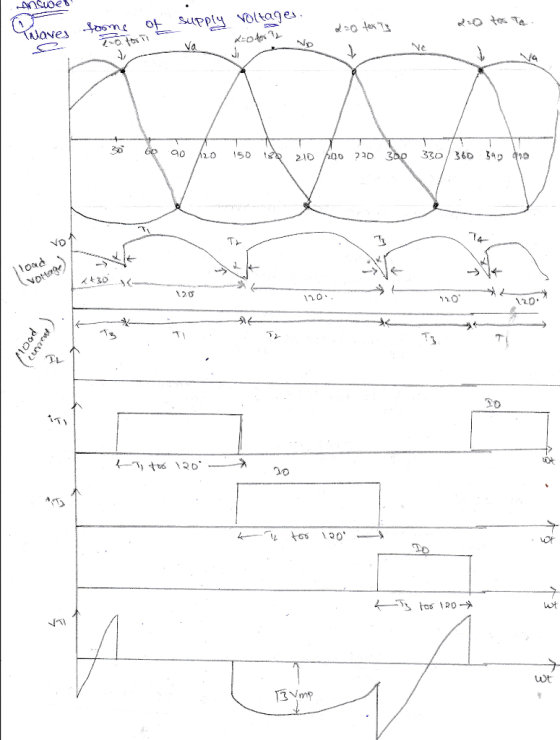

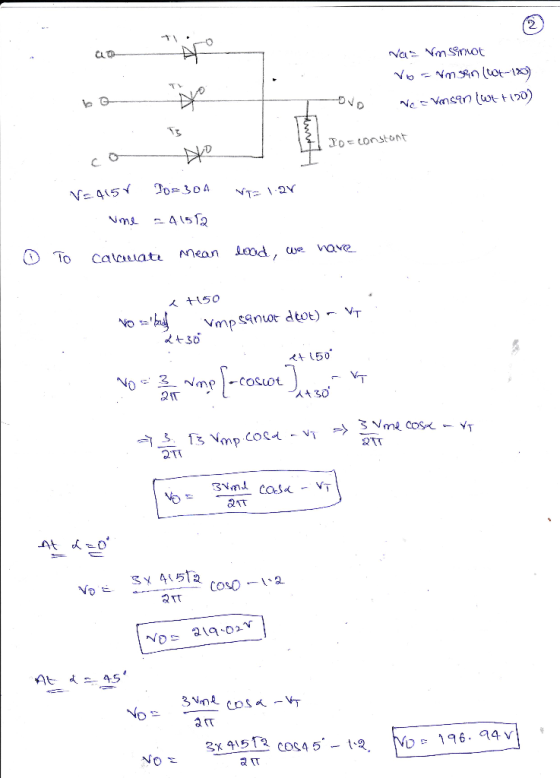

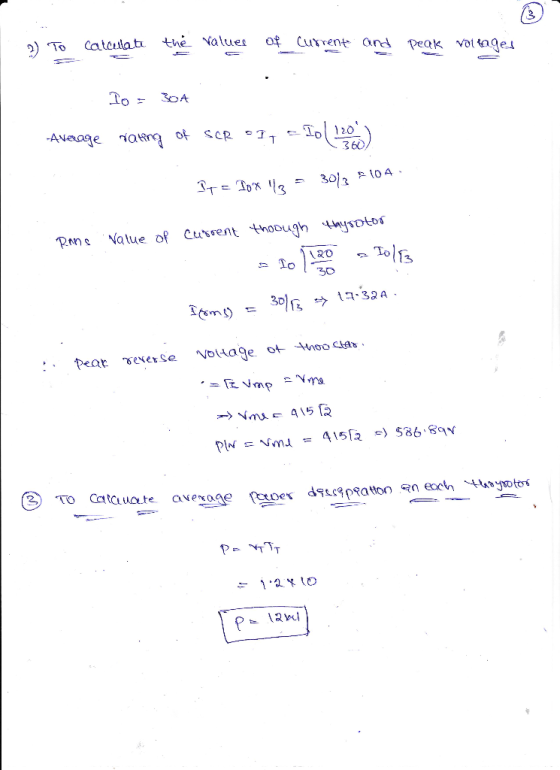

(9) (10) A three-phase, half-wave, fully-controlled converter is connected to a 415 V (line) supply as shown below. The load current is constant at 30 A and is independent of firing angle. (i) Sketch waveforms of supply voltage (V1), load voltage (VL), load current(iL), iT1, iT2, iT3 and voltage across thyristor T1 (VT1) (ii) (ii) If the thyristors have a forward voltage drop of 1.2 V, find (1) the mean load voltage at firing angles of 0° and 45°, (2) the values of current and peak reverse voltage rating will the thyristor require (3) the average power dissipation in each thyristor.
(9) (10) A three-phase, half-wave, fully-controlled converter is connected to a 415 V (line) supply as...
i want the answer with detales
Single-Phase Controlled Rectifier Exercise Derive the expressions of the average load voltage and current in single-phase half-wave controlled rectifiers and resistive load. Draw the waveforms of supply voltage. output voltage, output current, thyristor voltage and thyristor current Exercise In a single-phase half-wave controlled rectifier and resistive kad, it is desired to get an average load voltage of 80 V. Determine the firing angle if the ac supply voltage is 230 V. If the load...
i. The speed of a separately excited dc motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter, see V supply) Vs pk-150V Ra-0.310 L Rf 152O E-63V α. 1-35A Figure 3 The AC supply voltage to the armature and field converters is one-phase, 150Vpeak, 50Hz. The armature resistance Ra-0.31Ω, the field circuit resistance Rf-152Ω, and the motor voltage constant is Kv-1.3V/A. The armature current corresponding to the load demand la-35A The...
Question 15 For the controlled half wave rectifier shown below; assume ideal thyristor: R1 V D1 Trigger circuit 2N1599 0 if the source voltage is V= 198 sin 51 t V, the load R1 = 10 and the firing angle is 30 Find the peak current passing the SCR. A Click Submit to complete this assessment.
4. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1000 rpm separately excited dc motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system. The field is also controlled by a 3-phase full converter and is set to the maximum possible value. The armature resistance is 0.5 Q and the field resistance is 250 12. The motor voltage constant is 1.2 V/A rad/s. Assume continuous conduction and ripple...
The speed of a separately excited de motor is controlled by a one-phase full-wave converter. The field circuit is also controlled by a full-wave converter and the field current is set to its maximum value. The AC supply voltage to the armature and field converters is one-phase, 400V, 50Hz. The armature resistance Ra 0.232, the field circuit resistance Rf- 1812, and the motor voltage constant is Kv 1.3V/A - rad/s. The armature current corresponding to the load demand Ia 42A...
3. A controlled single-phase fiull-wave controlled rectifier is connected in a de motor drive in Figure 4. The de motor armature inductance can be assumed large enough such that any motor curent ripple is negligible. (a) Assuming negligible supply reactance, show that the average rectifier output voltage V, in tems of the supply ms voltage E and the firing angle a, is given by 2/2E (6 marks) cos a _ (b) Given that the supply voltage is 230V, 50HZ and...
3. A 3-phase full-wave converter drive is feeding power to a 220 V, 20 A, 1500 rpm separately excited DC motor. The ac input to the converters are 415 V, 3-phase, 50 Hz, Y-connected supply system, connected through a step-down transformer so that the armature terminal voltage equals to rated voltage when converter firing angle is 0°. The resistance of the armature winding is 0.5 12. Determine the firing angle, i. when the motor is running at 1000 rpm and...
b. Consider the single-phase fully controlled of thyristor bridge rectifier supplies a load consists of R-L load and Vee in series as shown in Figure Q2 (b). The parameters for this circuit are as follows: supply voltage is 120 Vrms at 60 Hz, DC voltage, Voe equal to 10 v. i. Sketch the waveforms for output voltage, thyristor current, diode current and output current (CO2: PO2 - 5 marks) Calculate the output voltage, Va at a = Tt/2. (CO2: PO2...
2. Figure 2 shows a 6-pulse thyristor rectifier feeding a DC static load an operating at steady-state. The ac input power supply is a symmetric set of three-phase voltages forming a direct sequence, having rms line-to-line voltage of Vuns equal to 415 V and angular frequency ω equal to 100π rad/s. The load is sufficiently inductive to smooth out the load current i(t), i.e. i 1, where I is a constant. a. Derive the mathematical expression of the average DC...
In this part of the term paper, design a single-phase switch-mode DC power supply with a forward converter. Provide answers to the questions below Please combine the single-phase full-wave rectifier from part two of your term paper with a forward converter to produce a switch-mode DC power supply, as shown below. The output of the bridge rectifier serves as input to the forward converter L1 Np: N BH621BH62 D, V1 Load C1 100p 45 Vrms D3 BH62 18H62 D4 Control...
