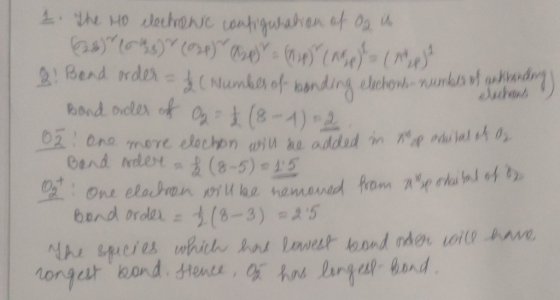

1. The valence molecular orbital sequence for O2, F2, Ne2 is: σ2s < σ*2s < σ2p...
1. The valence molecular orbital sequence for O2, F2, Ne2 is:
σ2s < σ*2s < σ2p <π2p = π2p <π*2p = π*2p <σ*2p
What is the bond order for O2? [ Select ] ["0", "0.5", "1", "1.5", "2", "2.5", "3"]
What is the bond order for O2-? [ Select ] ["0", "0.5", "1", "1.5", "2", "2.5", "3"]
What is the bond order for O2+? [ Select ] ["0", "0.5", "1", "1.5", "2", "2.5", "3"]
Which of the three has the longest bond?
2.

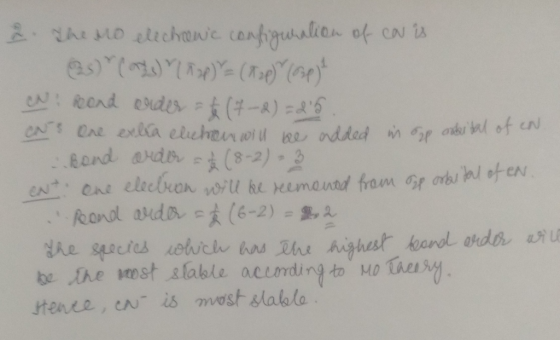

The valence molecular orbital sequence for CN is:
σ2s < σ*2s <π2p = π2p < σ2p <π*2p = π*2p <σ*2p
What is the bond order for CN? [ Select ] ["0", "0.5", "1", "1.5", "2", "2.5", "3"]
What is the bond order for CN-? [ Select ] ["0", "0.5", "1", "1.5", "2", "2.5", "3"]
What is the bond order for CN+? [ Select ] ["0", "0.5", "1", "1.5", "2", "2.5", "3"]
According to MO theory, which species is the most stable?
