Construct a BCD adder-subtractor circuit using a BCD adder and a 9’s complementer. [block diagram of...
Construct a BCD adder-subtractor circuit using a BCD adder and a 9’s complementer. [block diagram of the BCD adder has 9 inputs (two BCD digits and a carry in) and 5 outputs (one BCD digit and a carry out]

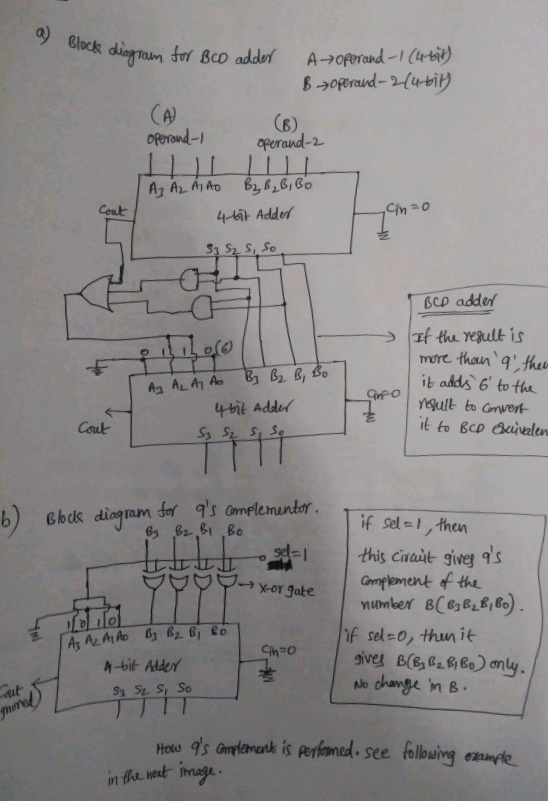

a. Define Block diagram for a BCD Adder
b. Define the Block diagram for the 9’s complementer

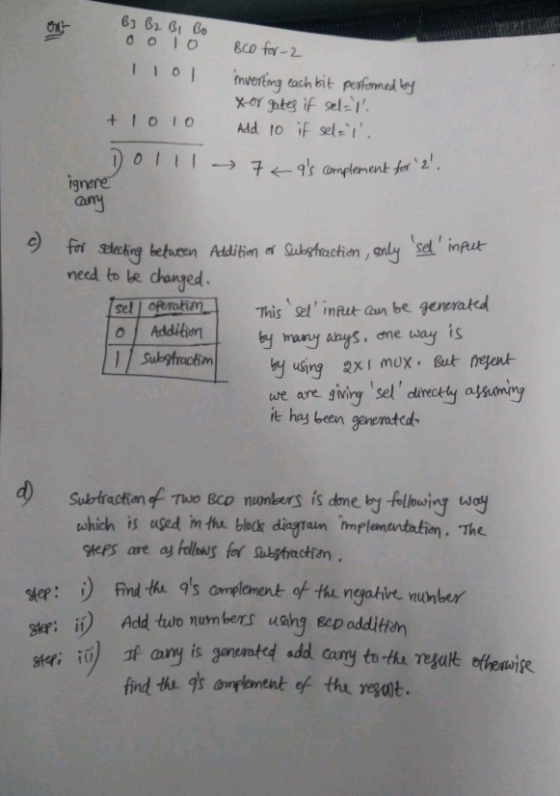

c. Define a block diagram for a select circuit to select between Adding or subtracting.

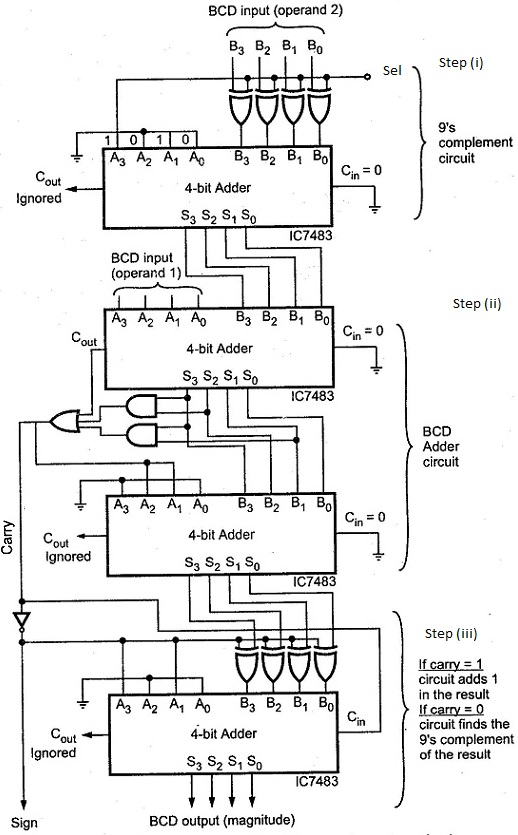

d. Combine the block diagrams for the completed circuit.
Homework Answers
Add Answer to:
Construct a BCD adder-subtractor circuit using a BCD adder and a
9’s complementer. [block diagram of...
Determine the outputs of the adder-subtractor circuit Determine the outputs of the adder-subtractor circuit The adder-subtractor...
Determine the outputs of the adder-subtractor circuit
Determine the outputs of the adder-subtractor circuit The adder-subtractor circuit has the following values for input select S and data inputs A and B: Determine, in each case, the values of the outputs S3, S2, S1, S, C4, C3, C2, and C1.
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in th...
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in the 2's complement form. The circuit has inputs X(7:0), Y(7:0), CO, M and outputs S(7:0), carry-out of MSB C8, OFL (OFL 1 when it occurs). The circuit should perform addition and subtraction of 8-bit signed numbers 2. with M-1 and M-0, respectively. a) Obtain the schematic for the 8-bit adder/subtractor with two 4-bit adder/subtractors from problem 1 as building blocks. X, Y, A, B, S can be shown...
Using single bit Full Adder (FA) blocks (as shown below) and required gates, construct a 6-bit...
Using single bit Full Adder (FA) blocks (as shown below) and
required gates, construct a 6-bit Adder/Subtractor for signed
numbers.
Use the signed two’s complement system for the signed
numbers.
Verify your design for the following addition and subtraction by
specifying A as A5A4A3A2A1A0 and B as B5B6B3B2B1B0, determining the
inputs to the FAs and their outputs and showing that the outputs
correspond to the correct results:
a) A-B with A = -13, B = +20 (5 points)
b) A+B...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit...
In quartus prime Implement a 4-bit adder/subtractor using structural VHDL. The circuit will have two 4-bit data inputs (A and B), a control line (add /sub), a 4-bit sum output (S), a carry-out bit (Cout), and an overflow flag. You need two VHDL files (fulladd.vhd) and (hybrid.vhd) to implement the design. VHDL code, fulladd.vhd, will implement a single-bit full adder. The VHDL file, hybrid.vhd, will create four instances of the single-bit full adder. Four XOR gates will be needed to...
Create a full adder and subtractor using ROM (One circuit) I know the minterms adder: S=(1,2,4,7)...
Create a full adder and subtractor using ROM (One circuit) I know the minterms adder: S=(1,2,4,7) C=(3,5,6,7) Subtractor: D=(1,2,4,7) B=(1,2,3,7) I just don't know how to use a control variable to draw it as 1 circuit, not 2. I assume it has to have a control variable that is equal to 0 or 1 to choose addition or subtraction, but i don't know how to implement it.
Design a full adder from scratch. (a) Identify inputs and outputs (b) Draw a block diagram...
Design a full adder from scratch. (a) Identify inputs and outputs (b) Draw a block diagram (c) Show the truth tables (d) Determine a minimized Boolean expression for the carry output (e) Draw an AND-OR circuit for the carry output (f) Derive a minimized product-of-sums expression for the carry output of the system
2. The decimal digits 0 to 9 are represented by four logic signals using the 7321 weighted BCD code. Only the code...
2. The decimal digits 0 to 9 are represented by four logic signals using the 7321 weighted BCD code. Only the code 0011 is used to represent the digit 3. In addition the code 1100 is used to represent the character E. Codes that do not represent either a decimal digit (including 0100), or the character E never occur. The logic signals are inputs to a decoder circuit whose outputs provide drive signals for a seven segment display system shown...
Please help me with 1-7 dale seriäi diagra lor design of a tull adder (fulladder.sch). Full-Adder...
Please help me with 1-7
dale seriäi diagra lor design of a tull adder (fulladder.sch). Full-Adder Full-adder is the basic building block of many arithmetic aircuits. A single ful-adder adds two bits, A and B, and put the results in S. Cn and Cou signals are added to the full-adder circuit to make it usable for adding mulit-bit numbers. The truth table for a full adder circuit is shown below 0 101 0 10 1 0 3. Construct the K...
8/8pts Question 1 Using block diagram of 1-bit full adders create a 3-bit parallel adder (show...
8/8pts Question 1 Using block diagram of 1-bit full adders create a 3-bit parallel adder (show all the connections between the adders and proper outputs Logic Q1jpg 4/9 pts Question 2 Consider your design, if the inputs to be added were 100, and 111, what will be the resulting sum output (Express the resulting sum in binary and base 8 using the least number of bits)? What will be the carry output (Express it only in binary using the least...
Please Can someone paraphrase this ? : 1.4 Binary Subtractor The subtraction of unsigned binary numbers...
Please Can someone paraphrase this ? : 1.4 Binary Subtractor The subtraction of unsigned binary numbers can be done most conveniently by means of complement. Subtraction A–B can be done by tacking the 2’s complement of B and adding it to A. The 2’s complement can be obtained by taking the 1’s complement and adding one to the least significant pair of bits. The 1’s complement can be implemented with the inverters and a one can be added to the...
Determine the outputs of the adder-subtractor circuit
Determine the outputs of the adder-subtractor circuit The adder-subtractor circuit has the following values for input select S and data inputs A and B: Determine, in each case, the values of the outputs S3, S2, S1, S, C4, C3, C2, and C1.
Construct the 8-bit ripple-carry adder/subtractor for signed integers. Negative numbers are in the 2's complement form. The circuit has inputs X(7:0), Y(7:0), CO, M and outputs S(7:0), carry-out of MSB C8, OFL (OFL 1 when it occurs). The circuit should perform addition and subtraction of 8-bit signed numbers 2. with M-1 and M-0, respectively. a) Obtain the schematic for the 8-bit adder/subtractor with two 4-bit adder/subtractors from problem 1 as building blocks. X, Y, A, B, S can be shown...
Using single bit Full Adder (FA) blocks (as shown below) and
required gates, construct a 6-bit Adder/Subtractor for signed
numbers.
Use the signed two’s complement system for the signed
numbers.
Verify your design for the following addition and subtraction by
specifying A as A5A4A3A2A1A0 and B as B5B6B3B2B1B0, determining the
inputs to the FAs and their outputs and showing that the outputs
correspond to the correct results:
a) A-B with A = -13, B = +20 (5 points)
b) A+B...
2. The decimal digits 0 to 9 are represented by four logic signals using the 7321 weighted BCD code. Only the code 0011 is used to represent the digit 3. In addition the code 1100 is used to represent the character E. Codes that do not represent either a decimal digit (including 0100), or the character E never occur. The logic signals are inputs to a decoder circuit whose outputs provide drive signals for a seven segment display system shown...
Please help me with 1-7
dale seriäi diagra lor design of a tull adder (fulladder.sch). Full-Adder Full-adder is the basic building block of many arithmetic aircuits. A single ful-adder adds two bits, A and B, and put the results in S. Cn and Cou signals are added to the full-adder circuit to make it usable for adding mulit-bit numbers. The truth table for a full adder circuit is shown below 0 101 0 10 1 0 3. Construct the K...
8/8pts Question 1 Using block diagram of 1-bit full adders create a 3-bit parallel adder (show all the connections between the adders and proper outputs Logic Q1jpg 4/9 pts Question 2 Consider your design, if the inputs to be added were 100, and 111, what will be the resulting sum output (Express the resulting sum in binary and base 8 using the least number of bits)? What will be the carry output (Express it only in binary using the least...
