A small bar magnet (mass = 200 g, length = 15 cm) has a magnetic moment...

A small bar magnet (mass = 200 g, length = 15 cm) has a magnetic moment of 7.5 Am2. What is the maximum possible torque which could act on this magnet in a field of 5x10-5 T?

A: 3.75x10^-4Nm

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

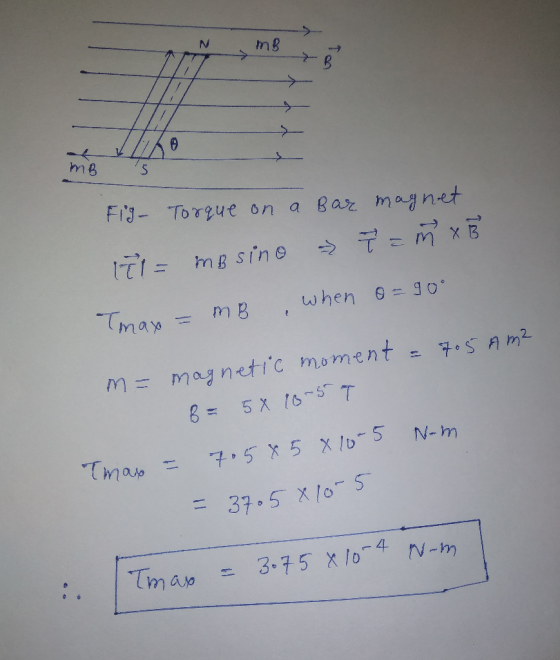

Answer #1

0 0
