You have an 8 Ohm source and load with an 507 Ohm filter resistor. You desire...

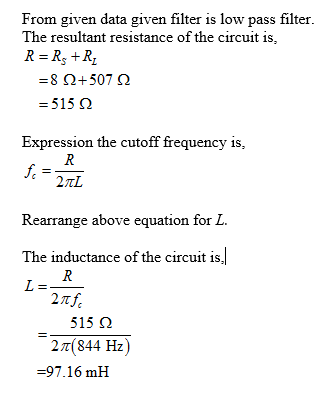

You have an 8 Ohm source and load with an 507 Ohm filter resistor. You desire to cut all frequencies above 844 Hz. What size inductor is required? In mH

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
You have an 8 Ohm source and load with an 507 Ohm filter resistor. You desire...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • You have an 8 Ohm source and load with an 349 Ohm filter resistor. You desire...

    You have an 8 Ohm source and load with an 349 Ohm filter resistor. You desire to cut all frequencies above 756 Hz. What size inductor is required? Answer: 3.33 uF Halp.

  • A 26 k ohm resistor is in series with a 66-mH inductor and an ac source....

    A 26 k ohm resistor is in series with a 66-mH inductor and an ac source. Calculate the impedance of the circuit if the source frequency is 85 Hz. Express your answer to two significant figures and include the appropriate units. Calculate the impedance of the circuit if the frequency is 6.4 times10^4 Hz. Express your answer to two significant figures and include the appropriate units.

  • You desire to isolate a frequency of 2940 Hz. You happen to have a 20.5 mH...

    You desire to isolate a frequency of 2940 Hz. You happen to have a 20.5 mH inductor laying around. What value of capacitor must you pair this with, in nF, to match the desired frequency for this filter, if connected in Parallel.

  • You desire to isolate a frequency of 1460 Hz. You happen to have a 62.5 mH...

    You desire to isolate a frequency of 1460 Hz. You happen to have a 62.5 mH inductor laying around. What value of capacitor must you pair this with, in nF, to match the desired frequency for this filter, if connected in Parallel?

  • You desire to isolate a frequency of 3690 Hz. You happen to have a 31.8 mH...

    You desire to isolate a frequency of 3690 Hz. You happen to have a 31.8 mH inductor laying around. What value of capacitor must you pair this with, in nF, to match the desired frequency for this filter, if connected in Series.

  • You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor....

    You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor. Suppose you take the resistor and inductor and make a series circuit with a voltage source that has voltage amplitude 30.0 V and an angular frequency of 250 rad/s. (a) What is the impedance of the circuit? Ohm (b) What is the current amplitude? A (c) What are the voltage amplitudes across the resistor and across the inductor? V (across the resistor) V (across...

  • An RLC series circuit has a 1.00 k Ohm resistor, a 155 mH inductor, and a...

    An RLC series circuit has a 1.00 k Ohm resistor, a 155 mH inductor, and a 25.0 nF capacitor. (a) Find the circuit's impedance at 525 Hz. Ohm (b) Find the circuit's impedance at 7.50 kHz. Ohm (c) If the voltage source has V_rms = 408 V, what is I_rms at each frequency? mA (at 525 Hz) mA (at 7.50 kHz) (d) What is the resonant frequency of the circuit? kHz (e) What is I_rms resonance? mA

  • A series circuit consists of an AC source of variable frequency, a 115 Ohm resistor, a...

    A series circuit consists of an AC source of variable frequency, a 115Ω resistor, a 1.25 μF capacitor, and a 4.50 mH inductor. Find the impedance of this circuit when the angular frequency of the ac source is adjusted to (a) the resonance angular frequency; (b) twice the resonance angular frequency. If the power source provides a peak voltage of 60 V. what ore (c) the peak current in the circuit and (d) the average power dissipated in the circuit...

  • 2. A resistor R and inductor L are connected in series with an AC voltage source...

    2. A resistor R and inductor L are connected in series with an AC voltage source with frequency fand maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejo), find expressions for Z and Ø. Write your answers in terms of the variables R, L, and o(= 21f). b. If the voltage source is described by the phasor V = Voejut, and the...

  • 1. A resistor R and capacitor care connected in series with an AC voltage source with...

    1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
