You have an 8 Ohm source and load with an 349 Ohm filter resistor. You desire...

You have an 8 Ohm source and load with an 349 Ohm filter resistor.

You desire to cut all frequencies above 756 Hz. What size inductor is required?

Answer: 3.33 uF

Halp.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

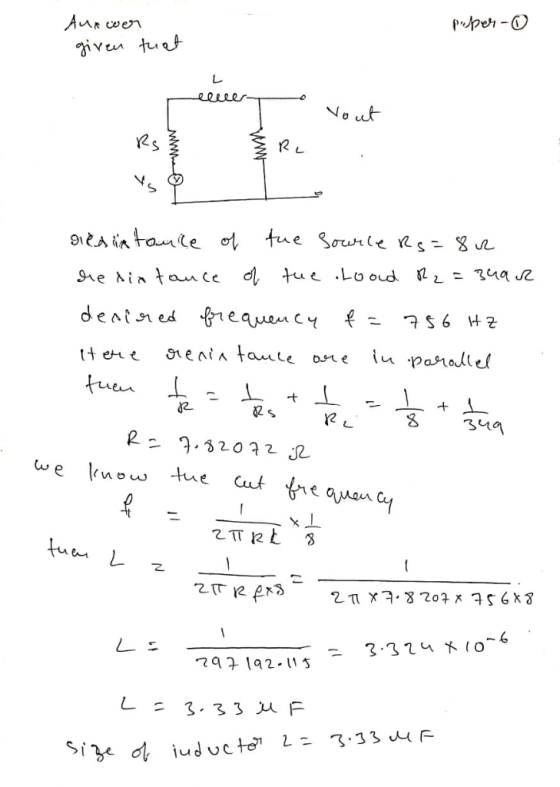

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
You have an 8 Ohm source and load with an 349 Ohm filter resistor. You desire...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • You have an 8 Ohm source and load with an 507 Ohm filter resistor. You desire...

    You have an 8 Ohm source and load with an 507 Ohm filter resistor. You desire to cut all frequencies above 844 Hz. What size inductor is required? In mH

  • You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor....

    You have a 220 Ohm resistor, a 0.400 H inductor, and a 7.00 mu F capacitor. Suppose you take the resistor and inductor and make a series circuit with a voltage source that has voltage amplitude 30.0 V and an angular frequency of 250 rad/s. (a) What is the impedance of the circuit? Ohm (b) What is the current amplitude? A (c) What are the voltage amplitudes across the resistor and across the inductor? V (across the resistor) V (across...

  • You desire to isolate a frequency of 2940 Hz. You happen to have a 20.5 mH...

    You desire to isolate a frequency of 2940 Hz. You happen to have a 20.5 mH inductor laying around. What value of capacitor must you pair this with, in nF, to match the desired frequency for this filter, if connected in Parallel.

  • You desire to isolate a frequency of 1460 Hz. You happen to have a 62.5 mH...

    You desire to isolate a frequency of 1460 Hz. You happen to have a 62.5 mH inductor laying around. What value of capacitor must you pair this with, in nF, to match the desired frequency for this filter, if connected in Parallel?

  • You desire to isolate a frequency of 3690 Hz. You happen to have a 31.8 mH...

    You desire to isolate a frequency of 3690 Hz. You happen to have a 31.8 mH inductor laying around. What value of capacitor must you pair this with, in nF, to match the desired frequency for this filter, if connected in Series.

  • 1. A resistor R and capacitor care connected in series with an AC voltage source with...

    1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...

  • Matlab Code if available Problem 04 mm us(0 In the circuit, the voltage source Vs(t) frequency,...

    Matlab Code if available Problem 04 mm us(0 In the circuit, the voltage source Vs(t) frequency, amplitude and phase are 22 kHz, 10 V and 0.25 rad correspondingly; Rs=4 Ohm, Ri=12 Ohm, R2=9 Ohm, R3=2 Ohm, L1=0.11 mH, L2=0.13 mH, C= 1.4 uF ("u"="micro"). Part A. Using any appropriate techniques, find the parameters of Thevenin equivalent circuit with respect to the ports "a" and "b". Present the Thevenin source in the polar form and the Thevenin impedance in the algebraic...

  • Rev You have a 250- resistor and a 0.450-H inductor. Suppose you take the resistor and...

    Rev You have a 250- resistor and a 0.450-H inductor. Suppose you take the resistor and inductor and make a series circut with a voltage source that has a votage amplitude of 35.0 V and an angular frequency of 230 rad/s Part A What is the impedance of the circult? 180 AEDO ? Submit Part 8 What is the current amplitude? %AED RO? Submit Request Answer You have a 250-2 resistor and a 0.450-H inductor. Suppose you take the resistor...

  • Answer all after part A An RLC series circuit has a 2.25 Ohm resistor, a 105...

    Answer all after part A An RLC series circuit has a 2.25 Ohm resistor, a 105 Mu H inductor, and a 72.5 Mu F capacitor Find the circuit's impedance, in ohms, at 150 Hz. Find the circuit's impedance, in ohms, at 6.5 kHz. If the voltage source supplies an rms voltage of 5.66 V, what is the circuit's rms current, in amperes, at a frequency of 150 If the voltage source supplies an rms voltage of 5.66 V, what is...

  • We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...

    We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
