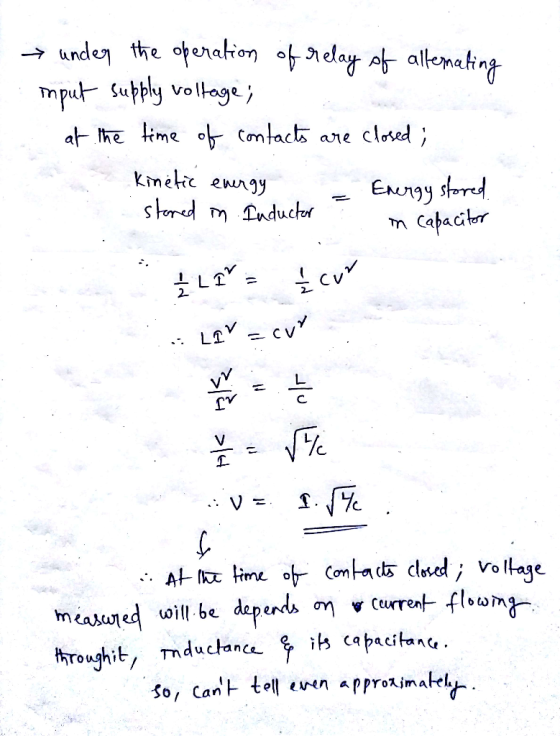

For a Relay in a 110Vac Control Circuit, approximately what voltage would be measured across contacts that are closed?
For a Relay in a 110Vac Control Circuit, approximately what voltage would be measured across contacts...
What voltage would you expect to see across the contacts of a contactor that has no voltage applied to its coil but is wired to a live circuit?
2. The voltage across a resistance Rs in the following circuit is to be measured by a voltmeter connected across it. (a) If the voltmeter has infinity internal resistance (Rm), what is the measurement error? (b) If the voltmeter has an internal resistance (Rm) of 9500 W, what is the measurement error? (c) What value would the voltmeter internal resistance need to be in order to reduce the measurement error to 1%? R4 Circuit Parameters Vs1 12 V R1-400 Ω...
When a relay coil is NOT energized there is an electrical path through the NC contacts there is an electrical path through the No contacts neither the NO or the NC contacts have an electrical path both the No ans the NC contacts have an electrical path What is a control relay? A remotely operated switch. A device used to release relays internal contact A device to control all relays in a PLC In the SLC 500 system, the main...
In an electric circuit the measured voltage across a resistor R is V = (3.6 ± 0.1) Volts and the measured electric current passing through it is I = (1.2 ± 0.02) Ampere. a) What is the error in the measurement of the resistor R, if ? = ? ? ? b) What is the error in the measured power P, if P = I2R ?
For the circuit shown, the voltage drop across the 5Ω resistor is measured as 10 V. Determine the voltage provided by the source I. 3n. ラ ㄴ 2.n 1几
Consider the circuit shown in the figure.
a. What is the voltage across the inductor in the instant just
after the switch is closed? Use the following data:
Vb = 6.40, V; R = 146.0 ?; L
= 8.07×10-1 H.
b. After the switch is closed for a long time, what is the
energy stored in the inductor?
Given an automatic street light control circuit using
transistors, a relay and an LDR shown in Figure 10:
Explain why the components are used in the circuit;
Explain the modes of operation of BJT working for the
circuit;
Concisely explain the operation of the circuit.
Design an automatic street light control circuit using op-amp,
relay and LDR
Vcc +12 V 1 LDR R2 15k_2 Relay 220V 50Hz RB1 R1 4.7622 Q2 C1815 Lamp Q1 C1815 VR 50k 470uF Figure 10
Inductor Problem:
Consider the circuit shown in the figure.
A) What is the voltage across the inductor in the instant just
after the switch is closed? Use the following data:
Vb = 5.50, V; R = 135.0 Ω; L
= 6.87×10-1 H.
B) After the switch is closed for a long time, what is the
energy stored in the inductor?
Consider the circuit shown in the fiqure AR what is the voltage across the inductor in the instant just after the switch is closed? Use the following data: vb-10.60, V; R-135.0 Ω,L-9.94x10-1 H. Submit Answer Tries 0/99 After the switch is closed for a long time, what is the energy stored in the inductor? Submit Answer Tries 0/99
In an ac series RC circuit, if 20 VAC is measured across the resistor and 40 VAC is measured across the capacitor, the magnitude of the applied voltage is which of the following? (a) ≈ 60 VAC (b) ≈ 55 VAC (c) ≈ 50 VAC (d) ≈ 45 VAC Draw a circuit diagram and show your calculations Hint: “VAC” is a common unit that means “ac voltage” and it is implied that the voltage is a sine wave. For this...
