1. For this problem we have two load distributions: an infinite plane of charge at y=...

1. For this problem we have two load distributions: an infinite plane of charge at y= -3m with surface charge density of ρS and an infinite line of charge with linear charge density of ρL = 1 μC/m that passes through the points A (4m, 3m, 2) and B (-4m, -3m, -2m).

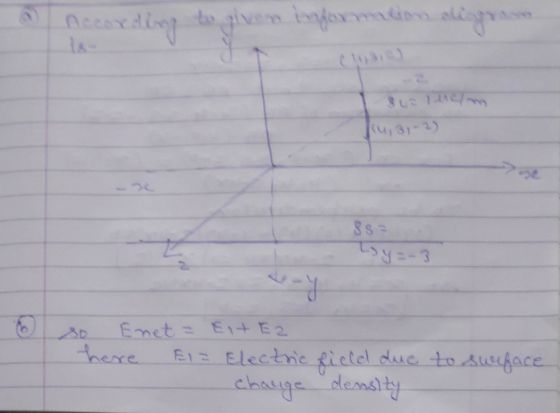

a.) Draw a picture of the two load distributions indicated above. Indicate axes and values ​​clearly.

b.) Determine the value of the surface charge density, ρS, so that the component of the flow density in Y is 0 at the origin.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

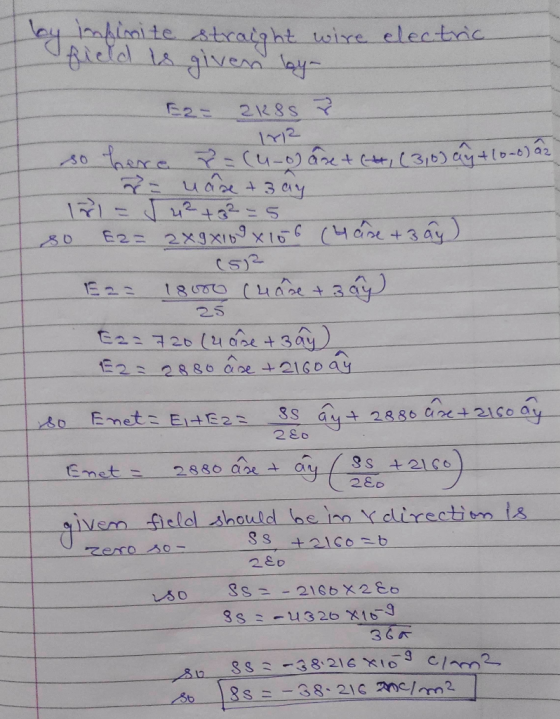

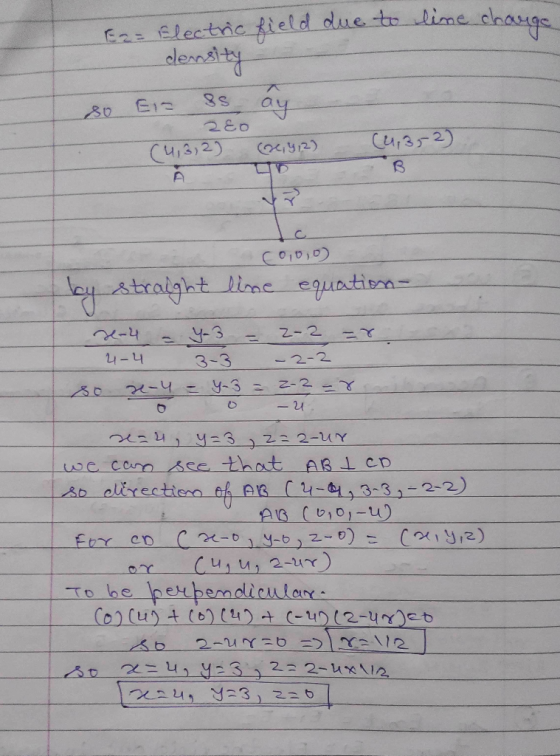

Answer #1

0 0
Add a comment
