For this problem we have two charge distributions: -A point charge of 1µC on the y-axis...

For this problem we have two charge distributions:

-A point charge of 1µC on the y-axis at y=-2m

-And an infinite line of charge with line charge density ρL that passes through A(6m, 4m, 4m) and B(-6m, 4m, -4m)

A.) Make a sketch of the two charge distributions indicated above. Identify axis and values clearly

B.) Determine the value of the line charge density ρL so that the component of flux density in y is 0 in (0,1m,0).

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

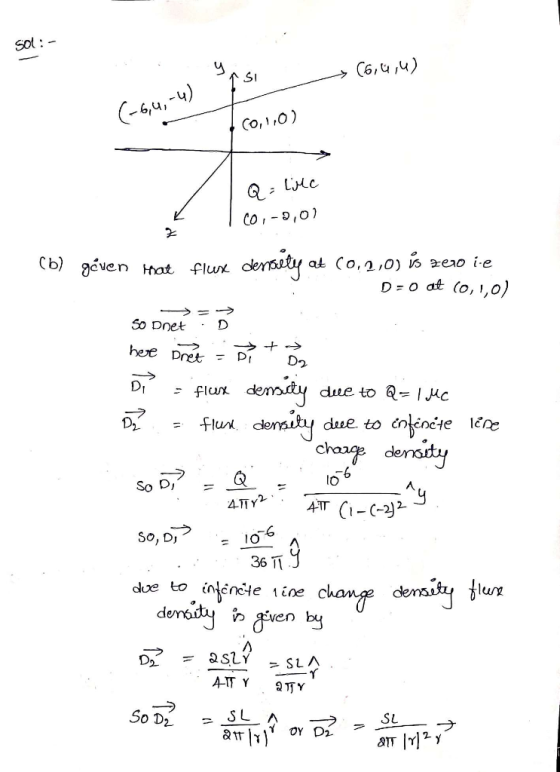

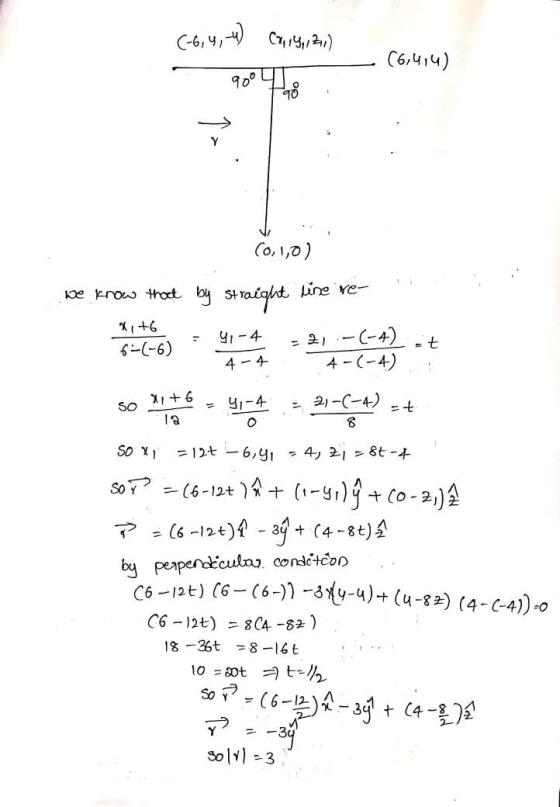

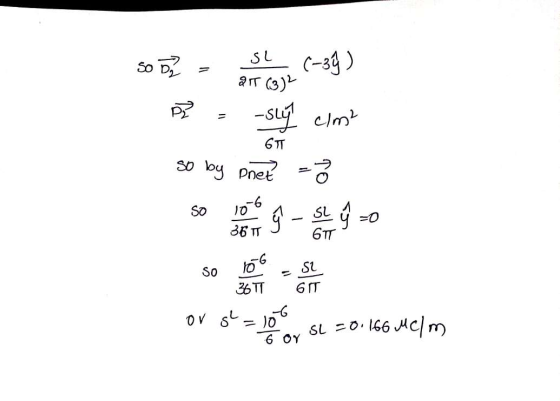

Answer #1

Please give me thumbs up,if you like the answer . Please let me know if you don't understand any step before giving Down rating directly :). Happy to help

0 0
