For this problem, we have two load distributions: a load point of a uC on the...

For this problem, we have two load distributions: a load point of a uC on the axis of y at y = -2m and an infinite load line with linear load density of pL passing through points A (6m, 4m, 4M) and B (-6m, 4m, -4m).

a. Draw a picture of the two load distributions indicated above. Indicate axes and values ​​clearly.

b. Determine the value of the linear load density, pL, so that the component of the flux density in y is 0 in (0.1m, 0).

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

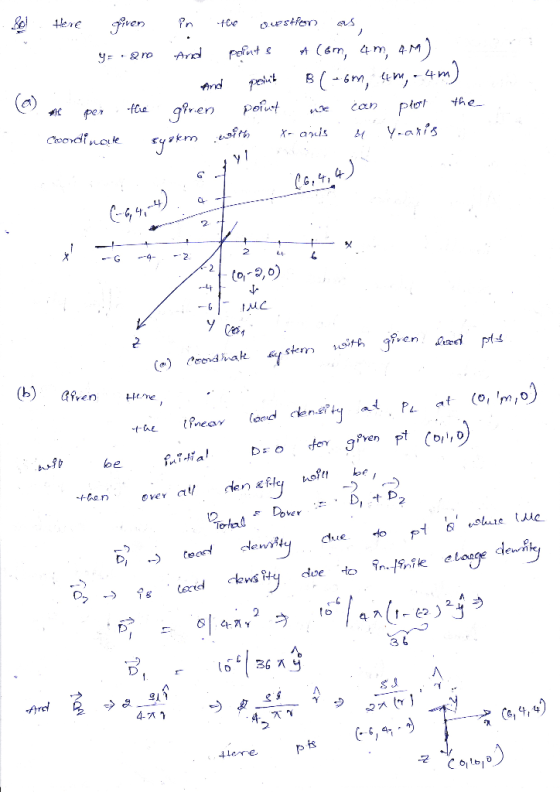

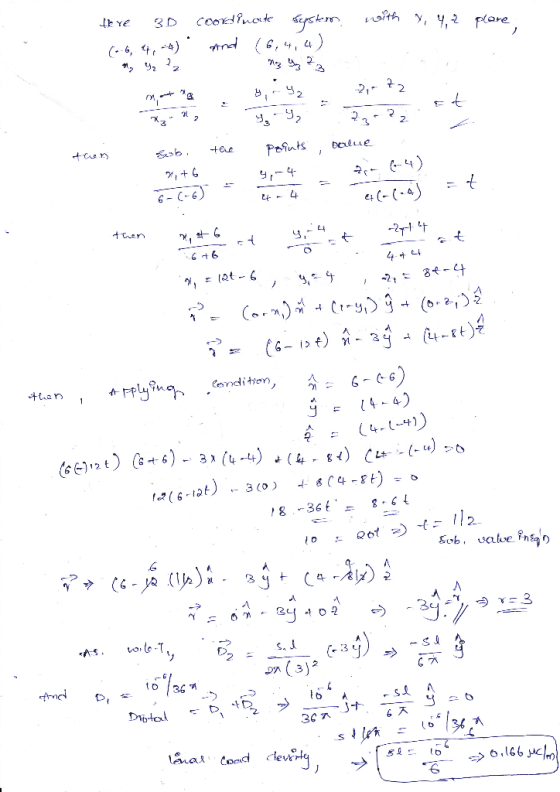

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
For this problem, we have two load distributions: a load point of a uC on the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • For this problem we have two load distributions: A load point of 1uC on the axis...

    For this problem we have two load distributions: A load point of 1uC on the axis of y and at y = -2m and an infinite line of linear load of pL that passes through points a (6m, 4m, 4m) and B ( -6m, 4m, -4m) a) Draw a picture of the two load distributions indicated above. Indicate axes and values ​​clearly. b) Determine the value of the linear load density, pL, so that the flow density component in y...

  • For this problem we have two load distributions: A load point of 1uC on the axis...

    For this problem we have two load distributions: A load point of 1uC on the axis of yy at y = -2m and an infinite line of linear load of pL that passes through points a (6m, 4m, 4m) and B ( -6m, 4m, -4m) a) Determine the value of the linear load density, pL, so that the flow density component in y is 0 in (0.1m, 0) For this problem we have two load distributions: A load point of...

  • For this problem, we have two load distributions: an infinite plane of charge at x =...

    For this problem, we have two load distributions: an infinite plane of charge at x = -2m with surface charge density of 300 uC/m^2 and an infinite line of charge with linear charge density of pL passing through points A (2m, 2m, 0) and B (2m, 2m, -2m). a. Draw a picture of the two load distributions indicated above. Indicate axes and values ​​clearly. b. Determine the value of the surface charge density, pL, so that the component of the...

  • For this problem we have two charge distributions: an infinite charge plane at z = -6m...

    For this problem we have two charge distributions: an infinite charge plane at z = -6m with surface charge density of pS and an infinite line of charge with linear charge density of pL = 3 μC / m passing through points A (3m, 4m, 0) and B (-3m, -4m, 0). to. (20 pts) Draw a picture of the two load distributions indicated above. Indicate axes and values ​​clearly.

  • 1. For this problem we have two load distributions: an infinite plane of charge at y=...

    1. For this problem we have two load distributions: an infinite plane of charge at y= -3m with surface charge density of ρS and an infinite line of charge with linear charge density of ρL = 1 μC/m that passes through the points A (4m, 3m, 2) and B (-4m, -3m, -2m). a.) Draw a picture of the two load distributions indicated above. Indicate axes and values ​​clearly. b.) Determine the value of the surface charge density, ρS, so that...

  • For this problem we have two charge distributions: -A point charge of 1µC on the y-axis...

    For this problem we have two charge distributions: -A point charge of 1µC on the y-axis at y=-2m -And an infinite line of charge with line charge density ρL that passes through A(6m, 4m, 4m) and B(-6m, 4m, -4m) A.) Make a sketch of the two charge distributions indicated above. Identify axis and values clearly B.) Determine the value of the line charge density ρL so that the component of flux density in y is 0 in (0,1m,0).

  • For this problem we have 2 charge distributions: - An infinite plane with charge in x...

    For this problem we have 2 charge distributions: - An infinite plane with charge in x = -2 m with a surface charge density ρS=300 µC/m2 -And an infinite infinite line of charge with linear charge density ρL that passes through the points A = (2m, 2m, 0m) and B = (2m, 2m, -2m) A.) Make a drawing/sketch  of the two charge distribution described in the above statement. B.) Determine the value of the linear charge density ρL, so that the...

  • An infinite line charge of uniform linear charge density = -1.7 uC/m lies parallel to the...

    An infinite line charge of uniform linear charge density = -1.7 uC/m lies parallel to the y axis at x = 0 m. A point charge of 4.1u C is located at x = 2.0 m, y = 3.0 m. Find the x component of the electric field at x = 3.0 m, y = 2.5 m

  • An infinite line charge of uniform linear charge density = -3.7 uC/m lies parallel to the...

    An infinite line charge of uniform linear charge density = -3.7 uC/m lies parallel to the y axis at x = -2 m. A point charge of 1.1 uC is located at x = 1.0 m, y = 2.0 m. Find the x component of the electric field at x = 2.0 m, y = 1.5 m.

  • Help with question 2 1. what is the electric field at the centre (r = 0)...

    Help with question 2 1. what is the electric field at the centre (r = 0) of a hemisphere bounded by r = a, 0 < θ < π/2 and 0 < φ < 2m, that carries a uniform volumetric charge density P3(The charges are distributed in this hemispherical 3D space. Use spherical coordinates due to the hemispherical geometry.) Consider some charges that are lined up in a straight line. This line of charge carries a uniform linear charge density....
