Consider 2 kg of water in a closed piston-cylinder assembly, initially at 10 bar and 500...

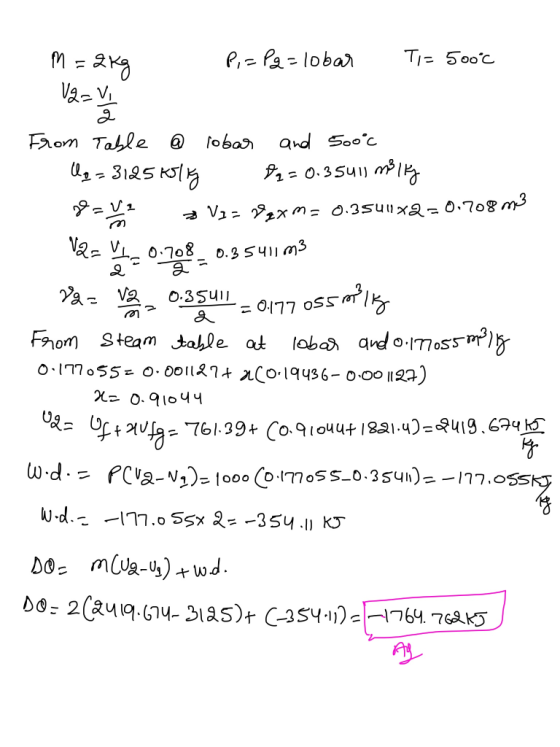

Consider 2 kg of water in a closed piston-cylinder assembly, initially at 10 bar and 500 C, undergoing a constant pressure cooling process until the volume
occupied by the water is one-half of its initial volume.
Determine the heat transfer involved in the process.
Homework Answers
Add Answer to:
Consider 2 kg of water in a closed piston-cylinder
assembly, initially at 10 bar and 500...
Water in a piston-cylinder assembly is initially at a pressure of 10 bar and a temperature...
Water in a piston-cylinder assembly is initially at a pressure of 10 bar and a temperature of 500 C. The water is cooled and compressed at constant pressure until it becomes a saturated vapor. The water is then cooled at a constant volume until it reaches a temperature of 150 C. a) Sketch both processes on T-v and p-v diagrams (v here is specific volume). b) Determine the total work for the overall processes. c) Determine the heat transfer for...
Question 1 A piston-cylinder assembly contains 3.2 kg of water at 211.9oC and 3 bar. The...
Question 1 A piston-cylinder assembly contains 3.2 kg of water at 211.9oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 51.5 bar. During compression, there is a heat transfer of energy from the water to its surroundings having a magnitude of 230 kJ. Neglecting changes in kinetic energy and potential energy, determine the work, in kJ, for the process of the water. Question 2 Water, initially saturated vapor at 10.2 bar, fills...
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 200°C....
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 200°C. The water is slowly heated at constant pressure to a final state. The heat transfer for the process is 3260 kJ and kinetic and potential energy effects are negligible. Determine the final volume, in m3, and the work for the process, in kJ.
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 360°C....
Five kg of water is contained in a piston–cylinder assembly, initially at 5 bar and 360°C. The water is slowly heated at constant pressure to a final state. The heat transfer for the process is 2960 kJ and kinetic and potential energy effects are negligible. Determine the final volume, in m3, and the work for the process, in kJ.
1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure...
1.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 277°C from a pressure of 5.1 bar to a pressure of 2.7 bar. Evaluate the work, in kJ/kg. 2.Nitrogen (N2) contained in a piston–cylinder arrangement, initially at 9.3 bar and 437 K, undergoes an expansion to a final temperature of 300 K, during which the pressure–volume relationship is pV1.1 = constant. Assuming the ideal gas model for the N2, determine the heat transfer in kJ/kg. 3.Argon contained in...
Referring to the figure shown below, water contained in a piston–cylinder assembly, initially at 1.5 bar...
Referring to the figure shown below, water contained in a piston–cylinder assembly, initially at 1.5 bar and a quality of 60%, is heated at constant pressure until the piston hits the stops. Heating then continues until the water is saturated vapor. The initial height, L1, is 0.05 m and the change in height, L2, is 0.03 m. For the overall process of the water, evaluate the work and heat transfer, each in kJ/kg. Kinetic and potential effects are negligible.
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of...
1.Argon contained in a closed, rigid tank, initially at 62.3°C, 3.9 bar, and a volume of 4.2 m3, is heated to a final pressure of 9.4 bar. Assuming the ideal gas model with k = 1.6 for the argon, determine the heat transfer, in kJ. 2.Water vapor contained in a piston–cylinder assembly undergoes an isothermal expansion at 223°C from a pressure of 5.4 bar to a pressure of 1.9 bar. Evaluate the work, in kJ/kg. 3.A mass of 4 kilograms...
A piston-cylinder assembly contains 0.5 kg of water. Initially, the piston is resting against the stops...
A piston-cylinder assembly contains 0.5 kg of water. Initially, the piston is resting against the stops when the water pressure and temperature are 1.00 bar and 125 degrees celsius, respectively. The piston has a mass of 50 kg and face area of 0.01 m^2; local atmospheric pressure is 1.01 bar; local gravitational acceleration is 9.81 m/s^2. 1. What water pressure would be required to lift the piston from the stops? 2. If the initial specific internal energy is 2544.86 kJ/kg,...
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated...
2.Water, initially saturated vapor at 14.6 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored. 3.A piston-cylinder assembly contains 4 kg of water at 211.4oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.8 bar. During compression, there is a heat transfer of energy from the water to its...
2) A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water...
2) A) Water, initially saturated vapor at 10.8 bar, fills a closed, rigid container. The water is heated until its temperature is 200°C. For the water, determine the heat transfer, in kJ/kg. Kinetic and potential energy effects can be ignored. B) A piston-cylinder assembly contains 2 kg of water at 210.6oC and 3 bar. The water is compressed to a saturated vapor state where the pressure is 50.7 bar. During compression, there is a heat transfer of energy from the...
