Two charges are separated by 15m. Q1 = -90uC and Q2 = +40uC. a) What is...

Question

Question

Two charges are separated by 15m. Q1 = -90uC and Q2 = +40uC.

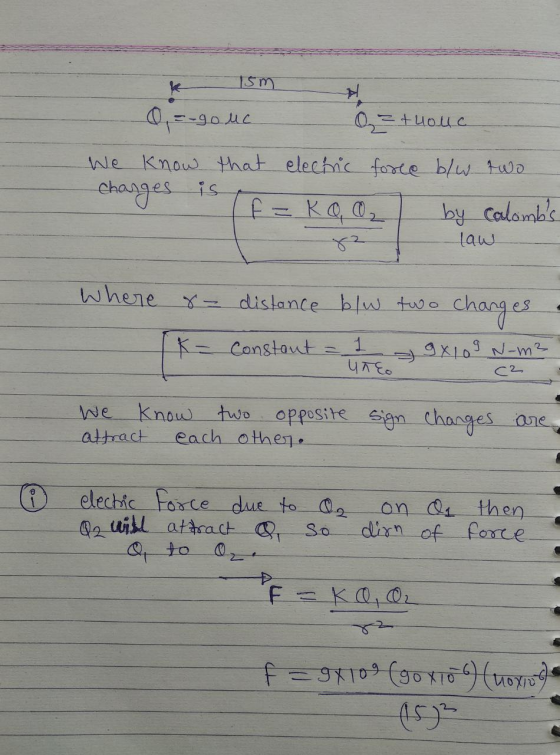

a) What is the electrical Force acting on Q1 due to Q2?

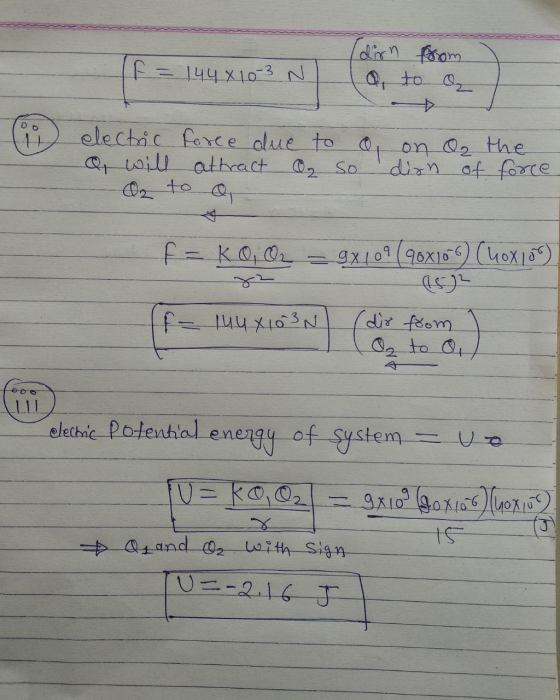

b) What is the electrical Force acting on Q2 due to Q1?

c) What is the electric potential energy of this charge configuration?

science physics

Answer 1

Answer #1

Answer 2
