A 25 cm diameter tangent galvanometer consists of 15 turns of 0.5 mm diameter copper wire...

A 25 cm diameter tangent galvanometer consists of 15 turns of 0.5 mm diameter copper wire and has a current of 2 A running through it. Calculate the total internal resistance of the wire and the magnetic field at the center of the loop. (The resistivity of copper is p = 1.69 x 10-8 ohm meter).

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

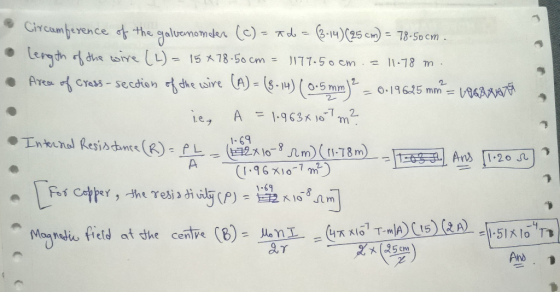

Answer #1

0 0
