Write an ASM program that uses the variables below and MOV instructions to copy the value...

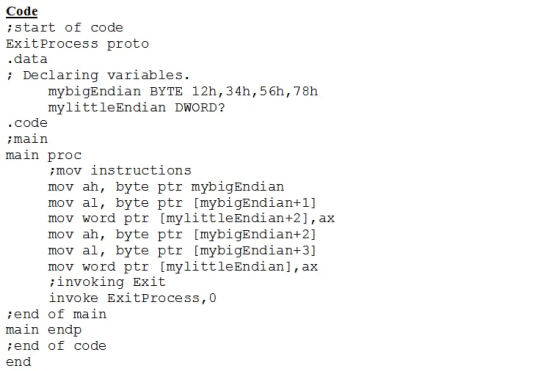

Write an ASM program that uses the variables below and MOV instructions to copy the value from bigEndian to littleEndian, reversing the order of the bytes. The number’s 32- bit value is understood to be 12345678h.
.data
bigEndian BYTE 12h, 34h, 56h, 78h
littleEndian DWORD ?
Homework Answers
