Implement the following function using the given circuit elements: ?(?, ?, ?) = ∑ ?(1, 2,...

Implement the following function using the given circuit
elements: ?(?, ?, ?) = ∑ ?(1, 2, 3, 6, 7)

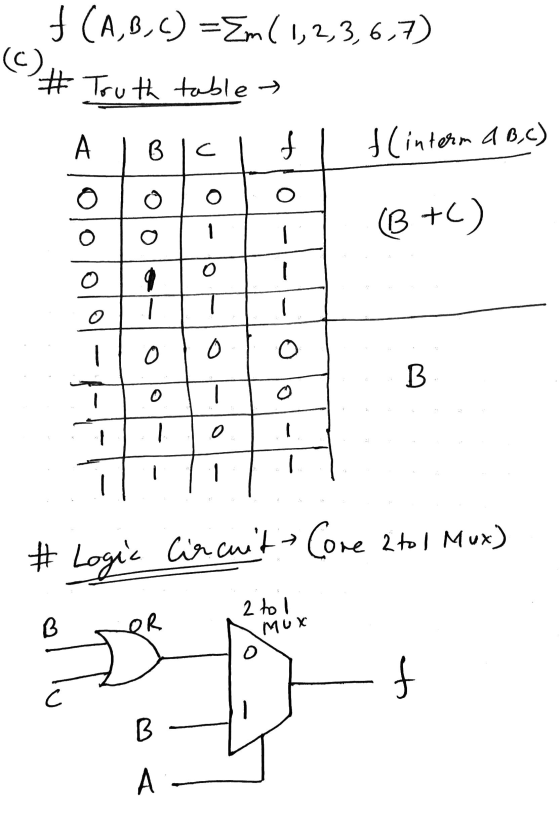

c. A 2-1 mux and any basic gates needed

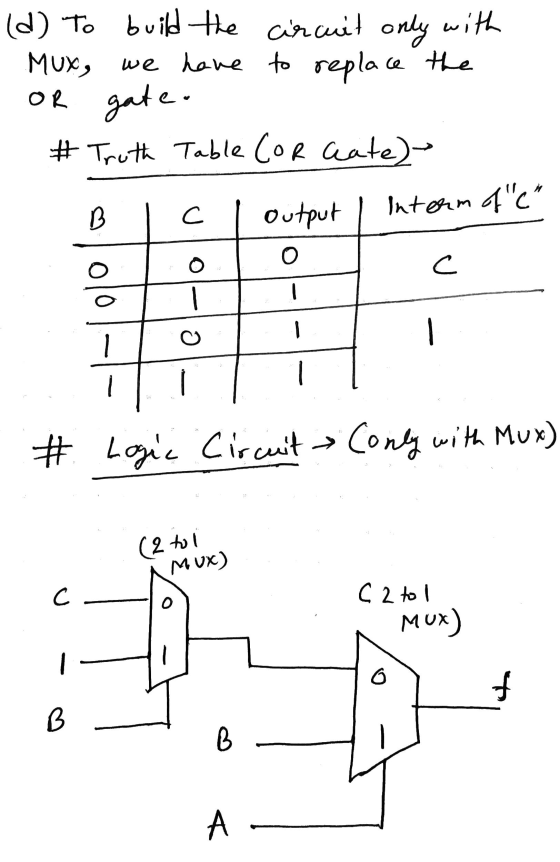

d. Only 2-1 muxes
engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
