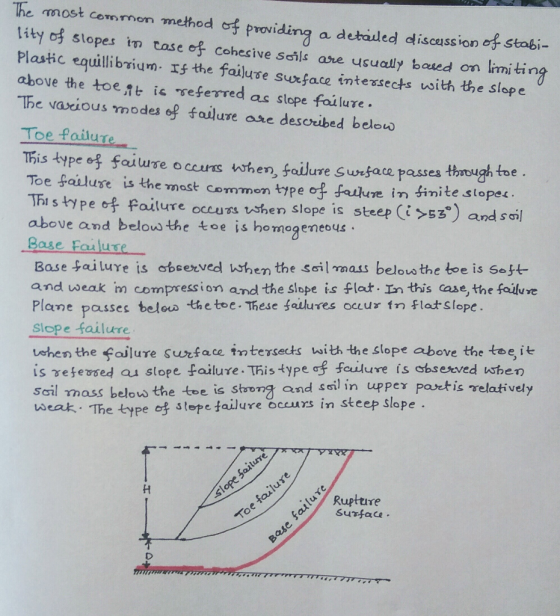

with the aid of annotated diagram describe the mode of failure associated with slope in cohesive...

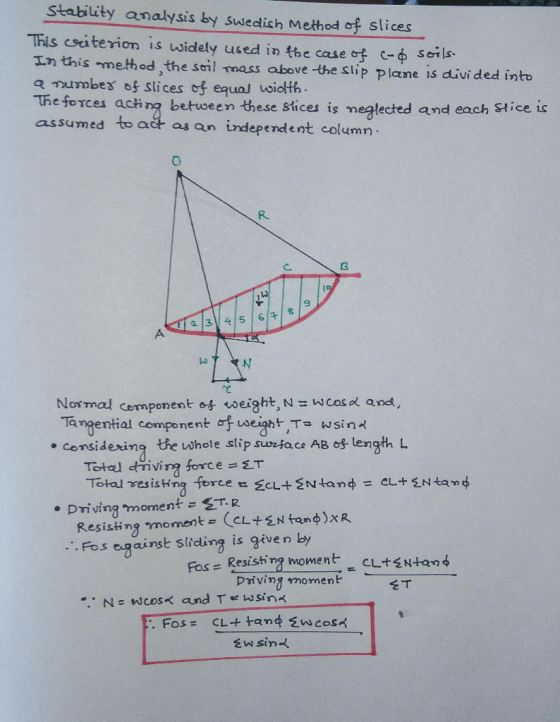

with the aid of annotated diagram describe the mode of failure associated with slope in cohesive material. Describe and evaluate a stability criterion of your choice for one of these mode of failure
Homework Answers
