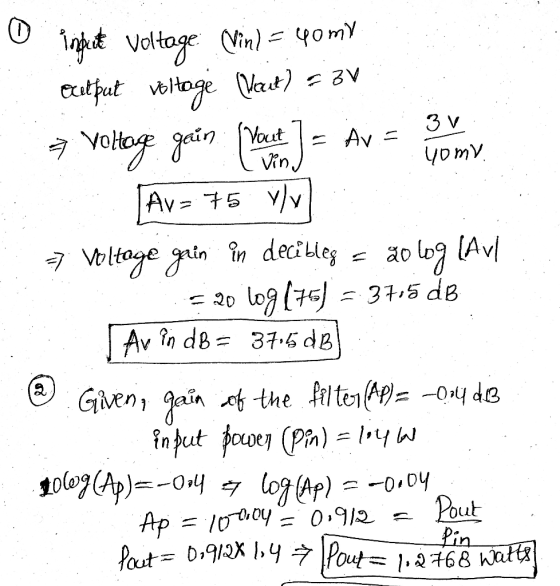

1. The voltage input to an amplifying circuit is 40mV, and the output is 3v calculate the voltage gain in volts and in decibels.

2. The gain of a filter is -0.4 dB. Determine the output power when Pin = 1.4 W
