Question

2 to 1 multiplexer 8-bit comparator Answer required: Descriptive diagram of each circuit - must include...

  • 2 to 1 multiplexer
  • 8-bit comparator

Answer required:

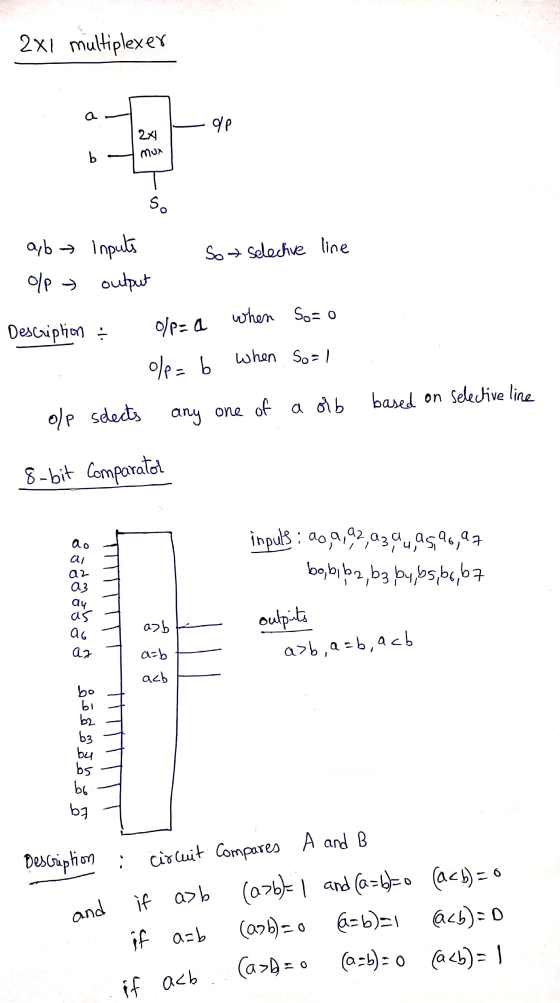

Descriptive diagram of each circuit - must include details about input/output as well as the process that happens inside each circuit to generate appropriate output.

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
2 to 1 multiplexer 8-bit comparator Answer required: Descriptive diagram of each circuit - must include...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Design 2-bit comparator using 1-bit comparators. Draw the circuit using a block diagram for the unit...

    Design 2-bit comparator using 1-bit comparators. Draw the circuit using a block diagram for the unit comparator and any additional gates. Include logic such as: A=B when (A0=B0 && A1=B1) A>B when (A1>B1 or A1=B1 && A0>B0), etc.

  • A comparator circuit has two 2-bit inputs, A(0,1) and B(0,1) [4 total inputs], and three 1-bit...

    A comparator circuit has two 2-bit inputs, A(0,1) and B(0,1) [4 total inputs], and three 1-bit outputs, G (A greater than B), E (equal), and L (A less than B) (hint: Compare two bits against two bits, for example, if inputs are 0010, then B is greater than A). Write the logic equation for each output, and draw the logic diagram for each output using 8 to 1 Multiplexers (3).

  • A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater),...

    A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater), E (equal), and L (less than). That is, G is 1 if A > B (0 otherwise), E is 1 if A == B (0 otherwise), and L is 1 if A < B (0 otherwise).       a. Draw the truth table for a 1-bit comparator (the table has 2 inputs and 3 outputs). b. Implement G, E, and L circuits using only...

  • Make a 4 bit 2 to 1 multiplexer circuit and block diagram and connect it to...

    Make a 4 bit 2 to 1 multiplexer circuit and block diagram and connect it to a Hexadecimal-adder-subtractor. Ok so this is what I've done, I already designed what's inside the mux block but I do not know if this is the correct way to set up the connections because it justs looks like a 4 to 1 multiplexer, but I do not know if it is the same thing. Can you help me finish it and explain if it...

  • Exercises: 1. Write the VHDL statements to describe a 4-bit comparator. Use the appropriate relational operators....

    Exercises: 1. Write the VHDL statements to describe a 4-bit comparator. Use the appropriate relational operators. Use input ports A and B, described above, as the inputs to the 4-bit comparator. Assume that three output ports, EQ, GT, and LT, have been declared in the Entity statement. Use them as the outputs from the comparator 2. Identify the package (or packages) that must be included in your VHDL code in order to use the relational operators with signals of type...

  • Problem 4 Design the static complementary CMOS implementation of a 2-bit comparator circuit, wher...

    Problem 4 Design the static complementary CMOS implementation of a 2-bit comparator circuit, where we have two inputs A and B (each is 2-bit wide) and the output 0 if A > B and output 1 if A B. Design the circuit for minimum delay (assuming a stage effort of 4) and driving a load of 10 fF. As part of the design you need to determine the width of all transistors You can use the following transistor parameters for...

  • 2 A comparator circuit has two 2-bit inputs, A(0,1) and B(0,1) [4 total inputs], and three...

    2 A comparator circuit has two 2-bit inputs, A(0,1) and B(0,1) [4 total inputs], and three 1-bit outputs, G (A greater than B), E (equal), and L (A less than B) (hint: Compare two bits against two bits, for example if inputs are 0010, then B is greater than A). Write the logic equation for each output, and draw the logic diagram for each output using 8 to 1 Multiplexers (3). Inputs Outputs F1 F2 F3 A1 AO B1 BOAB...

  • 3. [20 pts] 8-segment decoder for 8 symbols. Implement (draw logic diagram) the segment 4 of the 8-segment decoder...

    3. [20 pts] 8-segment decoder for 8 symbols. Implement (draw logic diagram) the segment 4 of the 8-segment decoder for 8 symbols 0 (a) Using K-map to realize the function q 16 pts) (b) Using a 3-8 decoder and OR gates to realize the function q.[7 pts] (e Using 8-to-1 multiplexer to realize the function 17 pts] Notes: 1. A eight-segment decoder is a combinational circuit with a three-bit input a and a 8-bit output q. Each bit of q...

  • 2. Build an 8-bit comparator that compares unsigned numbers A = a7 ao and B =...

    2. Build an 8-bit comparator that compares unsigned numbers A = a7 ao and B = b1" . bo and outputs 1 if A > B . First build a smaller unit (using K-map) with logic gates that compares two bit numbers X=x1x0 and Y =y,yo. Then, use sufficient number of these elements with required additional gates to build the final circuit.

  • 2. Make an 8-to-1 multiplexer with a 3-to-8 decoder and two groups of 8 AND gates...

    2. Make an 8-to-1 multiplexer with a 3-to-8 decoder and two groups of 8 AND gates each, plus an OR gate. The 3-to-8 decoder must be done with hierarchical design and several AND gates. You are strongly advised to use Logic Works 5 or similar circuit design software to create circuit diagrams for this question. For hierarchical design, you can draw over the exported circuit diagram to outline smaller hierarchical parts
