A Y-connected 426 V 3-phase generator supplies a Y-connected three 87 Ohms load resistors. Calculate the...

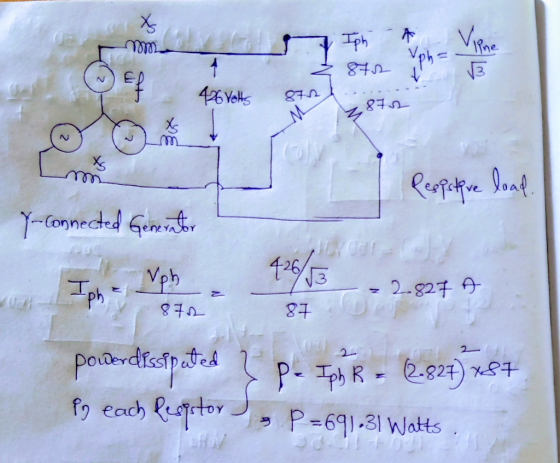

A Y-connected 426 V 3-phase generator supplies a Y-connected three 87 Ohms load resistors. Calculate the power dissipated in each resistor.
Homework Answers
Add Answer to:
A Y-connected 426 V 3-phase generator supplies a Y-connected
three 87 Ohms load resistors. Calculate the...
Show the circuit for a three-phase, AC(60Hz), WYE configured generator connected to a balanced load of...
Show the circuit for a three-phase, AC(60Hz), WYE configured generator connected to a balanced load of three resistors(Each 100 Ohms) wire in a delta configuration. Find: a.) current in each coil of the generator b.)the power generated in each coil c.) the total poor output of the generator d.) the current in each line to the load e.) voltage across each resistor f.) current in each resistor g.) power dissipated in each resistor h.) total power in the entire load...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load...
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
A three-phase generator connected in star generates a phase voltage of Vθ = 220 Vrms and supplies a three-phase load also connected in star. The three phases of the generator are connected to the thre...
A three-phase generator connected in star generates a phase
voltage of Vθ = 220 Vrms and supplies a three-phase load also
connected in star. The three phases of the generator are connected
to the three loads shown Remember that the return of the current of
each charge is through the Neutral.
a) Calculate the phase, line, load and neutral currents
b) Calculate the phase, line and load voltages
c) Calculate the powers of Apparent (S), Real (P) and Reactive (Q)...
A three-phase line with an impedance of (0.25+j1.25) ohms/phase supplies power to three balanced 3-phase parallel...
A three-phase line with an impedance of (0.25+j1.25) ohms/phase supplies power to three balanced 3-phase parallel connected loads: • Load 1 absorbs a total of 125 kW and 100 KVAR • Load 2 is a delta-connected impedance load with (125+j 40)ohms/phase • Load 3 absorbs 120 kVA at 0.8 power factor (lagging) Given that the line-neutral voltage at the load end of the line is 2400 V, determine the magnitude of the line-to- line voltage at the source end of...
Resistors of 5 Ohms, 9 Ohms, and 13 Ohms are connected purely in series to a...
Resistors of 5 Ohms, 9 Ohms, and 13 Ohms are connected purely in series to a 23 volt battery. All three resistors will dissipate a different amount of power. What is the power dissipated by the resistor which dissipates the least power in Watts?
A three-phase generator connected in a star generates a phase voltage of Vθ = 2500 Vrms...
A three-phase generator connected in a star generates a phase voltage of Vθ = 2500 Vrms and supplies a delta-connected three-phase load. The three phases of the generator feed 3 equal charges each composed of R = 10 Ω, XC = 4Ω and XL = 10Ω. a) Calculate the phase, line and load currents b) Calculate the phase, line and load voltages c) Calculate the powers of Apparent (S), Real (P) and Reactive (Q) delivered by the generator d) Calculate...
A three-phase generator connected in a star generates a phase voltage of Vθ = 24 KVrms and supplies a three-phase transformer connected in star. The transformation ratio is 115: 1. Each of the three c...
A three-phase generator connected in a star generates a phase voltage of Vθ = 24 KVrms and supplies a three-phase transformer connected in star. The transformation ratio is 115: 1. Each of the three coils of the secondary transformer feed 3 equal charges each composed of them by R = 18Ω, XC = 2Ω and XL = 20Ω. a) Calculate the phase, line and charge currents after the b) Calculate the phase, line and load voltages c) Calculate the Apparent...
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors...
Four resistors are connected purely in parallel to a 7 volt
battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms,
but the fourth is not initially known. The current out of the
battery is 9 amps. What is the power dissipated from the fourth,
unknown resistor, in Watts?
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
Section 2: Three phase circuit Three phase wye connected generator supplies two parallel loads through a...
Section 2: Three phase circuit Three phase wye connected generator supplies two parallel loads through a feeder. Load 1 Is an unbalanced wye connected load and load 2 is a balanced delta connected load. System data: Generator: Sg = 600 MVA; vg-11-25KV; Xg = 11896; Feeder: Z (0.08+j0.62) Ω/mile, length-8 miles Load 1: VII = 24KV, Pa =75MW Pb 75MW Pc=75MW pf_a=0.8 pf b 0.84 pf_c=0.78 Load 2: VIl-24KV; P total-225MW, pf 0.8; (all the power factor is supposed to...
A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that...
A Δ-connected source supplies power to a Y-connected load in a three-phase balanced system. Given that the line impedance is (1 + j1) Ω per phase while the load impedance is (6 + j4) Ω per phase, find the magnitude of the line voltage at the load. Assume the source phase voltage Vab= 208 ∠0° V rms. The magnitude of the line voltage at the load is _______ Vrms.
Question 2: Three phase circuit. (100p) A wye connected generator supplies a delta connected balanced load through short feeder. seree the load line to neutral voltage as reference voltage phase angle zero. 02.1 Q2.2 Q2.3 Q2.4 Draw the equivalent circuit. 10p Calculate the load line-to-neutral voltages and line-to-line voltages. 20p Calculate the delta load currents and feeder currents. 20p Calculate the supply wye connected generator line-to-neutral voltages. Is the obtained values are acceptable? Calculate the generator real and reactive power...
A three-phase generator connected in star generates a phase
voltage of Vθ = 220 Vrms and supplies a three-phase load also
connected in star. The three phases of the generator are connected
to the three loads shown Remember that the return of the current of
each charge is through the Neutral.
a) Calculate the phase, line, load and neutral currents
b) Calculate the phase, line and load voltages
c) Calculate the powers of Apparent (S), Real (P) and Reactive (Q)...
A three-phase line with an impedance of (0.25+j1.25) ohms/phase supplies power to three balanced 3-phase parallel connected loads: • Load 1 absorbs a total of 125 kW and 100 KVAR • Load 2 is a delta-connected impedance load with (125+j 40)ohms/phase • Load 3 absorbs 120 kVA at 0.8 power factor (lagging) Given that the line-neutral voltage at the load end of the line is 2400 V, determine the magnitude of the line-to- line voltage at the source end of...
Four resistors are connected purely in parallel to a 7 volt
battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms,
but the fourth is not initially known. The current out of the
battery is 9 amps. What is the power dissipated from the fourth,
unknown resistor, in Watts?
Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
Section 2: Three phase circuit Three phase wye connected generator supplies two parallel loads through a feeder. Load 1 Is an unbalanced wye connected load and load 2 is a balanced delta connected load. System data: Generator: Sg = 600 MVA; vg-11-25KV; Xg = 11896; Feeder: Z (0.08+j0.62) Ω/mile, length-8 miles Load 1: VII = 24KV, Pa =75MW Pb 75MW Pc=75MW pf_a=0.8 pf b 0.84 pf_c=0.78 Load 2: VIl-24KV; P total-225MW, pf 0.8; (all the power factor is supposed to...
