Please give correct answers to the following question:
A. Of the following, which are 4 advantages of a higher power factor while still supplying the same load (power factor correction)?
(Note: my answers: 1,5, 6,8 & score is 2/4, which means 2 answers are wrong)**
- Less resistive losses in the transmission lines
- Higher source current
- Larger cable diameters for power transmission
- Lower source voltage
- Smaller cable diameters for power transmission
- Lower source current
- More resistive losses in the transmission lines
- Higher source voltage

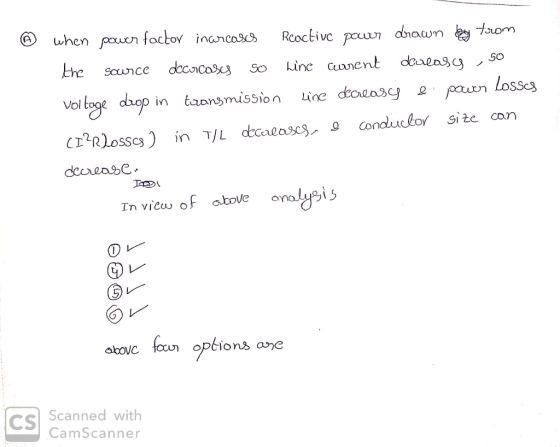

Homework Answers
