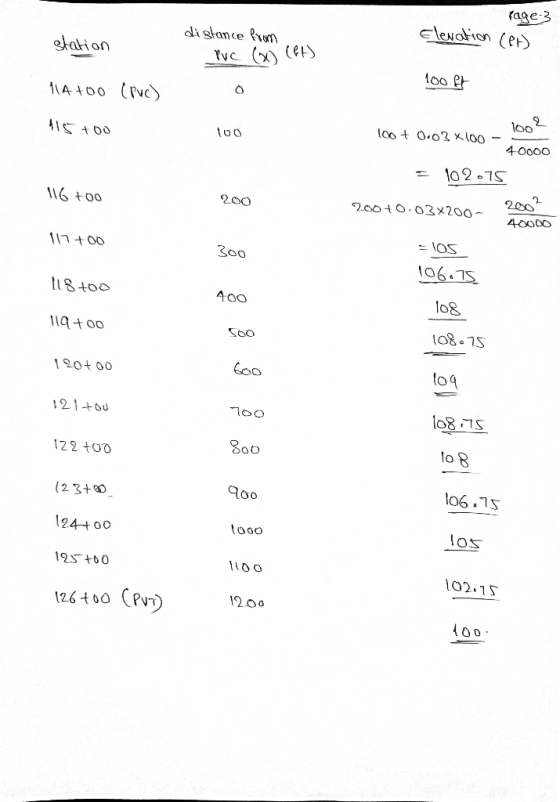

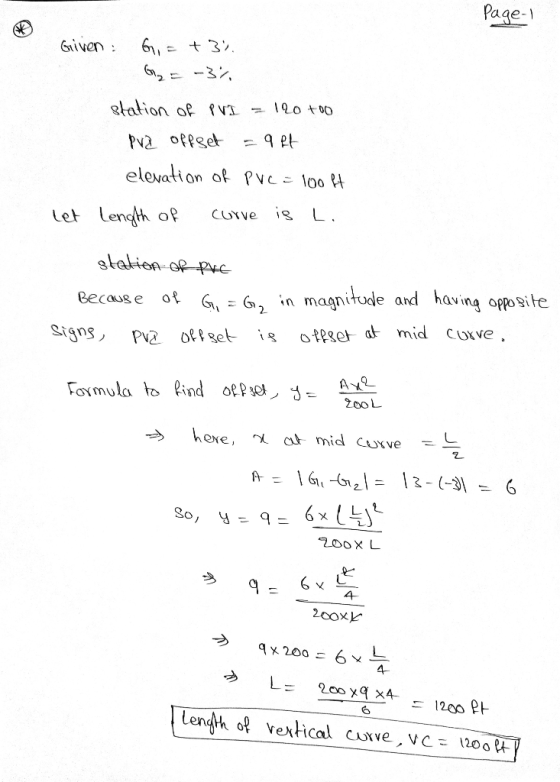

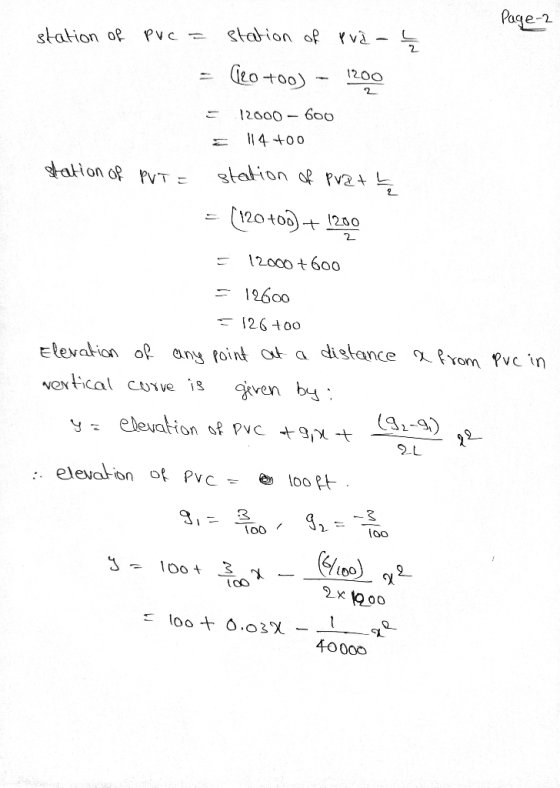

A crest VC with 3% tangent grades (i.e., +3 to -3) has the PVI at STA...
A crest VC with 3% tangent grades (i.e., +3 to -3) has the PVI at STA 120+00 with the offset of 9.00 ft. Calculate the length of VC, STA of PVC and PVT and curve elevation at each whole station in between if the curve elevation at PVC is 100.00 ft.
Homework Answers
Add Answer to:
A crest VC with 3% tangent grades (i.e., +3 to -3) has the PVI
at STA...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is...
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
1. A vertical crest curve with a length of 400’ is to connect grades of +1%...
1. A vertical crest curve with a length of 400’ is to connect grades of +1% and -1.75%. The PVI is located at station 35 and has an elevation of 549.20’. What are the elevations of the PVC, PVT and at all full stations on the curve?
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and...
A 500-ft-long equal-tangent crest vertical curve connects tangents that intersect at station 340 + 00 and elevation 1322 ft. The initial grade is +4.0% and the final grade is -2.5%. Determine the elevation and stationing of the high point, PVC, and PVT. Solve this problem using parabolic equation and offset method.
25. A spiral curve with a length of 50 feet connects a tangent to a curve...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 =...
A 1080 ft long tangent crest vertical curve connects tangents ( G1= 4% , G2 = -2.8%). The two stations intersect at ghost station 640+00 where elevation is 1325.000 ft. Determine the stationing and elevations of the following points. 1. PVC 2. PVT 3. High point 4. 640+20
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
A crest vertical curve connects a +2% grade and a -2.05% grade. The PVI is at...
A crest vertical curve connects a +2% grade and a -2.05% grade. The PVI is at station 40+00.00 at an elevation of 100.00 ft. The design speed is 70 mi/h. If the length is 1084 ft, determine: (b) The station of the BVC (3 pts (c) The elevation of the BVC (3 pts (d) The station of the EVC (3 pts) (e) The elevation of the EVC (3 pts) (1) The station of the highest point on the curve (4...
Help please 2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back...
Help please
2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back tangent grade (gl) of + 3.6 % and a forward tangent grade (g2) of-1.8 %. If the elevation of the PVI is 4264.82 ft. at station 78+ 25.00; what is: (a) the elevation and stationing of the PVC and PVT; (b) the elevation of the curve at station 83 + 63.00; and (c) the elevation and stationing of the highest and lowest points on...
A 200m equal tangent sag vertical curve has the PVC at station 3 + 700.000 and...
A 200m equal tangent sag vertical curve has the PVC at station 3 + 700.000 and elevation 321m. The initial grade is -3.5% and the final grade is 0.5%. Determine the elevation and stationing of the PVI, PVT, and lowest point on the curve.
A 600 feet sag vertical curve (equal tangent) has a PVC at station 100+00 and elevation...
A 600 feet sag vertical curve (equal tangent) has a PVC at station 100+00 and elevation 300 feet. The initial grade is -3.5 % and the final grade is +5.5%. Determine the elevation and stationing of the lowest point, PVI, and PVT.
3. A 300 ft vertical curve connects a-2.3% approach grade and a +1.6% departure grade. The PVI is at 45+65 with elevation 369.22'. The curve is designed for 35 mi/hr speed limit. Calculate stations and elevations for PVC and PVT A 4% grade meets a failing grade of-25%. Station at P1 is at 60+00 and elevation is 95 feet. The length between PVC and PVT is 1400 feet. Find the elevation of the curve at station 58+00 4.
3. A...
25. A spiral curve with a length of 50 feet connects a tangent to a curve having a radius of 100 feet. Deter- mine the offset from the tangent to the point where the spiral connects to the curve and the length of throw from the tangent. 26. Given a spiral curve with a length of 150 feet, which connects a tangent to a curve having a radius of 200 feet, determine the offsets from the tangent to the midpoint...
a) a 200 m vertical crest curve is designed to connect a +4.5% tangent with a -2% tangent. What should the design speed be to provide ample stopping sight distance? SSD t Pra) [10 marks) b) A 300 m sag parabolic vertical curve has a PVC at station 2+600.000 and elevation 320.000 m. the initial grade is -4.0% and the final grade is +1.0%. Determine the stationing and elevation of PVI, PVT and the lowest point on the curve. Also...
A crest vertical curve connects a +2% grade and a -2.05% grade. The PVI is at station 40+00.00 at an elevation of 100.00 ft. The design speed is 70 mi/h. If the length is 1084 ft, determine: (b) The station of the BVC (3 pts (c) The elevation of the BVC (3 pts (d) The station of the EVC (3 pts) (e) The elevation of the EVC (3 pts) (1) The station of the highest point on the curve (4...
Help please
2 (36 Pts) A 4250 ft equal tangent parabolic vertical curve has a back tangent grade (gl) of + 3.6 % and a forward tangent grade (g2) of-1.8 %. If the elevation of the PVI is 4264.82 ft. at station 78+ 25.00; what is: (a) the elevation and stationing of the PVC and PVT; (b) the elevation of the curve at station 83 + 63.00; and (c) the elevation and stationing of the highest and lowest points on...
