Obtain the equation of motion for a 1.25-g mass, at the end of a perfectly elastic...

Obtain the equation of motion for a 1.25-g mass, at the end of a perfectly elastic spring which, when stretched 3.75 cm from equilibrium and then released from rest, undergoes simple harmonic motion with a period of 0.016667 s. B.) Find the (i) spring constant (ii) maximum velocity and (iii) total energy of the mass. C.) For the above spring find the positions for which the potential energy is one-third the kinetic energy.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

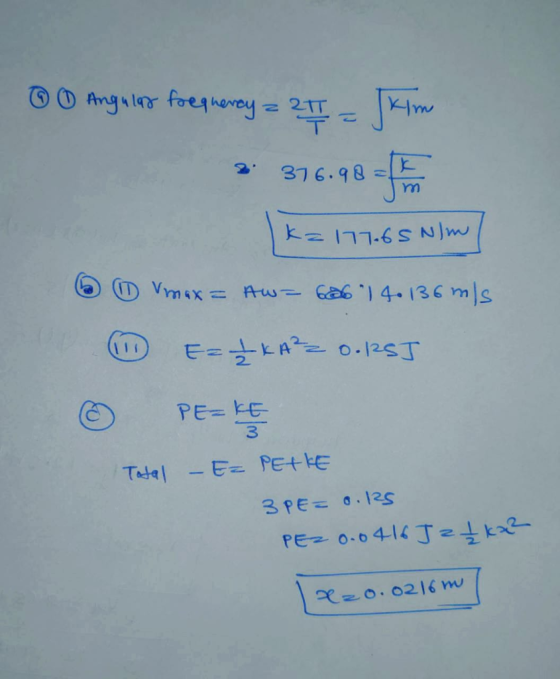

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Obtain the equation of motion for a 1.25-g mass, at the end of a perfectly elastic...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • (a) Obtain the equation of motion for a 2.75-g mass, at the end of a perfectly...

    (a) Obtain the equation of motion for a 2.75-g mass, at the end of a perfectly elastic spring which, when stretched 6.00 cm from equilibrium and then released from rest, undergoes simple harmonic motion with a period of 0.20944 s.(b) Find the (i) spring constant (ii) maximum velocity and (iii) total energy of the mass. 4. For the above spring, find the positions for which the potential energy is two-fifth the kinetic energy. 5.

  • Homework for Lab 15: Simple Harmonic Motion Name Date Section 15 10 -5 -15-10-5 0 5...

    Homework for Lab 15: Simple Harmonic Motion Name Date Section 15 10 -5 -15-10-5 0 5 10 15 Displacement (em) Figure 15.6: Force vs displacement graph for a 0.75 kg cart on a horizontal spring. 1. Figure 15.6 shows the force exerted by the spring on a 0.75 kg cart, as a function of its displacement from equilibrium. Positive displacements (in cm) represent stretching of the spring; negative displacements represent compression. Find the spring constant. 2. The cart is moved...

  • A mass/spring system undergoes simple harmonic motion with frequency 1.25 Hz and amplitude .185 meters. If...

    A mass/spring system undergoes simple harmonic motion with frequency 1.25 Hz and amplitude .185 meters. If the value of the mass is 167 grams, what is a) the maximum velocity of the mass, and b) what is the total energy in the system?

  • An object–spring system moving with simple harmonic motion has an amplitude A. (a) What is the...

    An object–spring system moving with simple harmonic motion has an amplitude A. (a) What is the total energy of the system in terms of k and A only? E : (b) Suppose at a certain instant the kinetic energy is twice the elastic potential energy. Write an equation describing this situation, using only the variables for the mass m, velocity v, spring constant k, and position x. (c) Using the results of parts (a) and (b) and the conservation of...

  • A vertical elastic cord is stretched 0.306 m when a mass 1.66 kg is attached to...

    A vertical elastic cord is stretched 0.306 m when a mass 1.66 kg is attached to it. The cord is then stretched an additional 0.114 m and released from rest. Assuming the cord is an ideal linear spring, how long does it take for the mass to reach its original equilibrium position? HINTS: First find the elastic constant of the elastic cord, using the fact that the gravitational weight mg of the mass is balanced by the upward pull of...

  • A block attached to a spring undergoes simple harmonic motion, sliding back and forth along a...

    A block attached to a spring undergoes simple harmonic motion, sliding back and forth along a straight line on a horizontal, frictionless surface. The amplitude of the block's motion is cm, the frequency of the block's motion is Hz, and the mass of the block is kg. a) Determine the spring's stiffness constant. N/m b) The block is initially stretched and then released at time . Determine a formula for the position function of the block, where the position is...

  • A mass m on a spring of stiffness k undergoes horizontal simple harmonic motion with amplitude...

    A mass m on a spring of stiffness k undergoes horizontal simple harmonic motion with amplitude A, centered around x = 0. a) What is the total "mechanical" energy (kinetic plus potential) of the mass-spring system? b) What is the value of x when the mass-spring system has twice as much kinetic energy as potential energy? Your answers should be in terms of the quantities m, k, and A--or some subset thereof.

  • Determine values for translational kinetic energy, gravitational potential energy, elastic potential energy, and total energy at...

    Determine values for translational kinetic energy, gravitational potential energy, elastic potential energy, and total energy at 0 m, 0.2 m, and 0.4 m above the release point for a 2 kg object pulled 0.2 m downward from the equilibrium position and released from rest while attached to the end of a vertical spring with k = 50 N/m. Be aware that the spring is stretched at the release position and at the equilibrium position so you will have to use...

  • A spring-block system sits on a horizontal, frictionless surface. The spring has a spring constant k...

    A spring-block system sits on a horizontal, frictionless surface. The spring has a spring constant k =2000N/m. The mass of the block is 14.5 kg. The spring is stretched out a distance of 20.0 cm and released. The block undergoes simple harmonic motion with a phase constant φ=?. a)  if the velocity of the block is -2.00 m/s at t= 0.150 s, what is the phase constant? b) determine the acceleration of the block at t = 0.150 s. c) what...

  • please solve both. thank you! A mass of 1.25 kg stretches a spring 0.06 m. The...

    please solve both. thank you! A mass of 1.25 kg stretches a spring 0.06 m. The mass is in a medium that exerts a viscous resistance of 56 N when the mass has a velocity of 2 . The viscous resistance is proportional to the speed of the object. Suppose the object is displaced an additional 0.03 m and released. Find an function to express the object's displacement from the spring's equilibrium position, in m after t seconds. Let positive...
