Question

A 2.41-F and a 5.56-F capacitor are connected to a 59.0-V battery. What is the total...

A 2.41-F and a 5.56-F capacitor are connected to a 59.0-V battery. What is the total charge supplied to the capacitors when they are wired (a) in parallel and (b) in series with each other?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

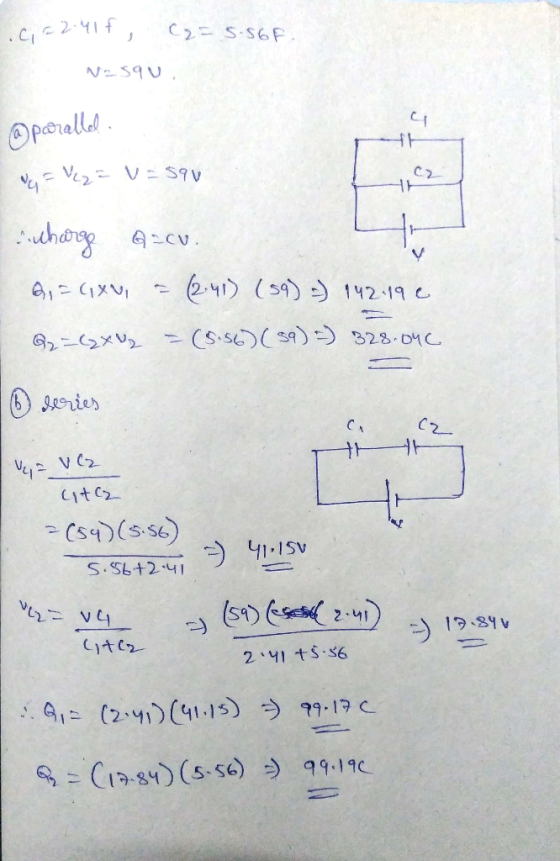

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A 2.41-F and a 5.56-F capacitor are connected to a 59.0-V battery. What is the total...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 2.02-µF and a 4.24-µF capacitor are connected to a 55.8-V battery. What is the total...

    A 2.02-µF and a 4.24-µF capacitor are connected to a 55.8-V battery. What is the total charge supplied to the capacitors when they are wired in the following ways? (a) in parallel with each other and (b) in series with each other

  • Two capacitors ( 4uF, 6 °F) and 20.0 V battery are connected in series. After that,...

    Two capacitors ( 4uF, 6 °F) and 20.0 V battery are connected in series. After that, the battery is removed and the two charged capacitors are disconnected from each other and then the capacitors are reconnected together in parallel with plates of the same signs wired together. What is the charge on 6 u F capacitor in uC? Select one: O a. zero b. 38.4 c. 30.2 O d. 57.6 O e. 28.8

  • Two capacitors are connected to a battery. The battery voltage is V = 90 V, and...

    Two capacitors are connected to a battery. The battery voltage is V = 90 V, and the capacitances are C1 = 2.00 μF and C2 = 4.00 μF. Determine the total energy stored by the two capacitors when they are wired (a) in parallel and (b) in series.

  • What is the maximum number of 6.00 ?F capacitors that can be connected in parallel with...

    What is the maximum number of 6.00 ?F capacitors that can be connected in parallel with a 6.00 V battery while keeping the total charge stored within the capacitor array below 484 ?C? If the same number of 6.00 ?F capacitors are connected in series with the same 6.00 V battery, how much charge will end up on each capacitor plate?

  • A-D please (1090) Problem 9: Suppose you have a 9.00 V battery, a 2.8 F capacitor,...

    A-D please (1090) Problem 9: Suppose you have a 9.00 V battery, a 2.8 F capacitor, and a 7.6SuF capacitor. 25% Part (a) Find the total charge stored in the systern if the capacitors are connected to the battery in series in sin cos an7 8 9 4 5 6 cotan as atan acotan sinh inacos0 2 3 0 cosh tan cotanh0 O Degrees O Radians Submit Hint Feedback I give up Feedback: 1 for a 0% deduction Hints: 0%...

  • Two parallel-plate capacitors, 4.5 µF each, are connected in series to a 9.3 V battery. One...

    Two parallel-plate capacitors, 4.5 µF each, are connected in series to a 9.3 V battery. One of the capacitors is then squeezed so that its plate separation is halved. Because of the squeezing, (a) how much additional charge is transferred to the capacitors by the battery and (b) what is the increase in the sum of the charges: the charge on the positive plate of one capacitor plus the charge on the positive plate of the other capacitor? Give your...

  • A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a...

    A circuit consists of a 6-pif capacitor, a 12 m-F capacitor, a 12-V battery, and a switch, connected as shown in Figure 24-14. Initially, the switch is open and the capacitors are uncharged. The switch is then closed and the capacitors charge. When the capacitors are fully charged and open-circuit terminal volt- age is restored, (a) what is the potential of each conductor in the circuit? (Choose the zero-potential reference point on the negative battery terminal.) If the potential of...

  • (11 %) Problem 8: Suppose you have a 9.00 V battery, a 2.8 μF capacitor, and...

    (11 %) Problem 8: Suppose you have a 9.00 V battery, a 2.8 μF capacitor, and a 8.45 μF capacitor. 25% Part (a) Find the total charge stored in the system if the capacitors are connected to the battery in series in C. sin cosO tan HOME acosO atan)acotan)sinh) 0 coshO tanh) cotanhO DegreesRadians END BACKSPACE DEL CLEAR Submit Hint I give up! Hints: 1 % deduction per hint. Hints remaining: 2 Feedback: 1% deduction per feedback 25% Part (b)...

  • 16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor...

    16.14 Two capacitors are connected in series with an 30 V battery. The capacitance of capacitor C1 is 12 µF and the capacitor C2 is unknown. The charge on capacitor C2 is 140 µC. a) What is the equivalent capacitance? b) What is the capacitance of capacitor C2? c) What is the voltage of each capacitor?

  • 1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F capacitor is connected...

    1. Two 5.0 F capacitors are connected in parallel. A third 5.0 F capacitor is connected in series to the first two. What is the equivalent capacitance? (a) 5.0 F (b) 15.0 F (c) 3.3 F (d) 6.7 F 2. Two capacitors, each with a capacitance of C, are connected in parallel. Those two are then connected in series to another capacitor with capacitance of C. What is the equivalent capacitance of this arrangement of capacitors? (a) C/3 (b)  2C/3 (c)...
