verify 2s compliment for these two examples in 8bit adder: (a) 112+9 = 121 (b) –71+29...

verify 2s compliment for these two examples in 8bit adder:

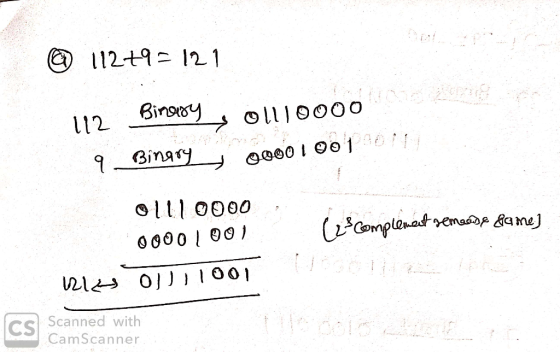

(a) 112+9 = 121

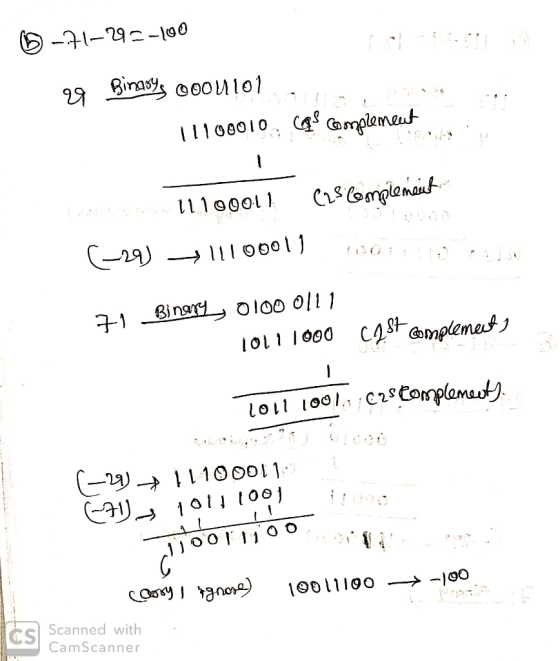

(b) –71+29 = -100
