A solid cylinder of height L and radius R has uniform mass density . Find the...

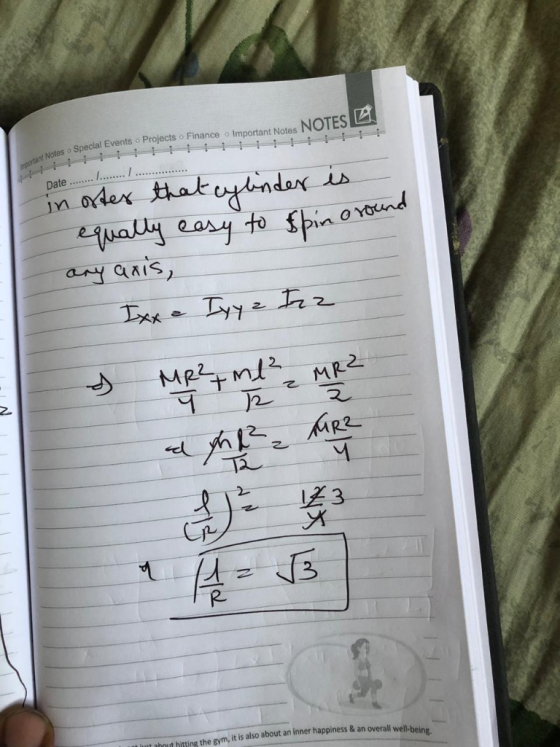

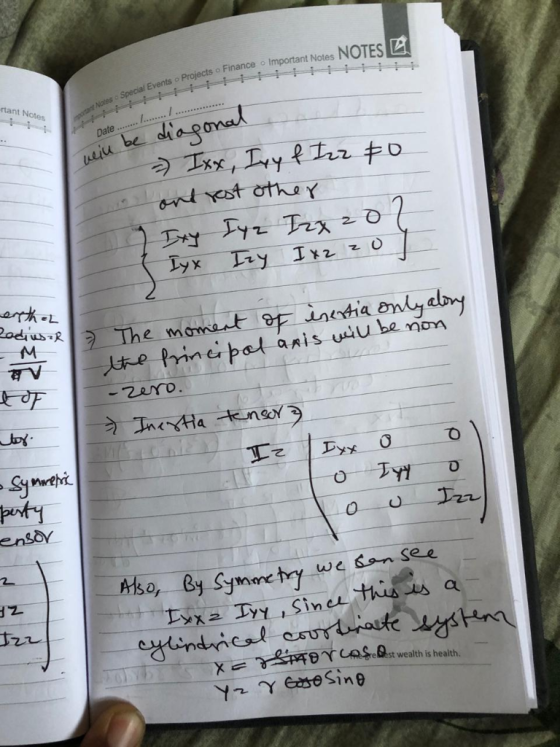

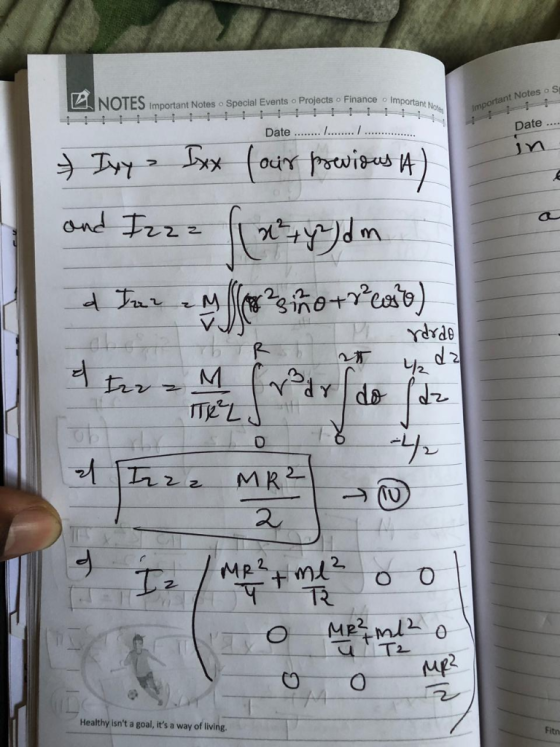

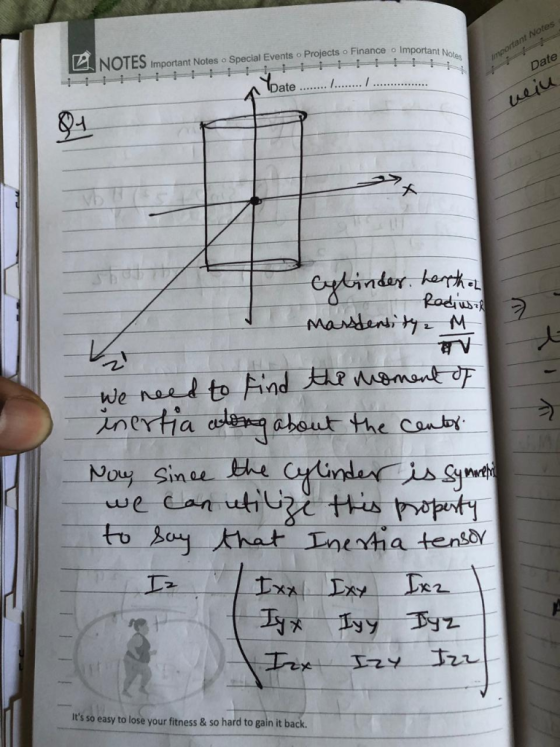

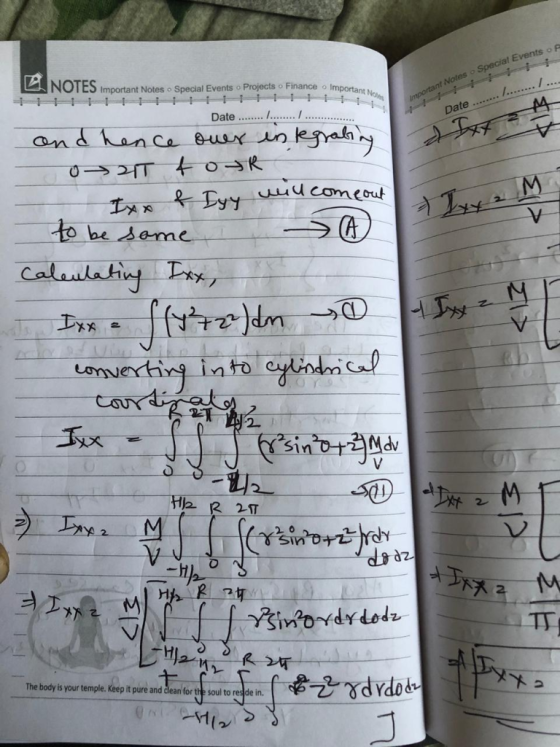

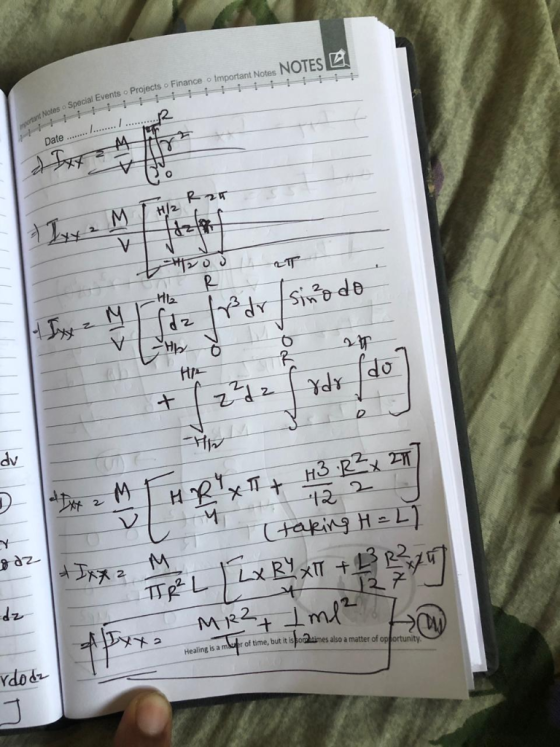

A solid cylinder of height L and radius R has uniform mass density . Find the moment of inertia tensor about the center of the cylinder. For what value of L/R is the cylinder equally easy to spin about any axis?
Homework Answers
Add Answer to:
A solid cylinder of height L and radius R has uniform mass
density . Find the...
Consider a cylinder of mass M, radius R and length L. (a) Calculate the inertia tensor...
Consider a cylinder of mass M, radius R and length L. (a) Calculate the inertia tensor for rotations about the center of mass in the frame where the z axis is along the axis of the cylinder. Use cylindrical coordinates, where x = r cos θ and y = r sin θ. (b) Find the inertia tensor in the frame where the center of the “bottom side” is at the origin with the z axis along the axis of the...
M Two uniform, solid spheres (one has a mass M and a radius R and the...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius R. = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a numerical...
M Two uniform, solid spheres (one has a mass M and a radius R and the...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia / about the axis through the center of the rod. Write the expression in terms of M. R. and a numerical...
1. Consider a solid cone with uniform density p, height h, and circular base with radius R (hence mass M,sphR2). Let the vertex of the cone be the origin ofthe body frame. By symmetry, choose bas...
1. Consider a solid cone with uniform density p, height h, and circular base with radius R (hence mass M,sphR2). Let the vertex of the cone be the origin ofthe body frame. By symmetry, choose basis vectors e for the body frame such that the inertia tensor I, is diagonal. Will this rigid body with this body origin be an asymmetric top, a symmetric top, or a spherical top? Calculate the inertia tensor in this basis How will the inertia...
M 6 Two uniform, solid spheres (one has a mass M and a radius R and...
M 6 Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 3R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a...
two uniform solid spheres with mass M and radius R and the other with mass M...
two uniform solid spheres with
mass M and radius R and the other with mass M and radiius Rb =2R,
are connected by a thin uniform rod of length L=2R and mass M. find
an expression for the moment of inertia I about the axis through
the center of the rod. wrtie an expression in terms of M, R, and a
numerical factor in fraction form
Mandard and the chamad conected by a thirred of 2R and Find an expression...
M Two uniform, solid spheres (one has a mass M and a radius R and the...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius R = 2R) are connected by a thin, uniform rod of length L = 4 R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertial about the axis through the center of the rod. Write the expression in terms of M, R, and a numerical...
A solid cylinder with a radius of 4.0 cm has the same mass as a solid...
A solid cylinder with a radius of 4.0 cm has the same mass as a solid sphere of radius R. If the cylinder and sphere have the same moment of inertia about their centers, what is the sphere's radius?
2. A ring of negligible thickness has a radius R and mass density 1. Find expressions...
2. A ring of negligible thickness has a radius R and mass density 1. Find expressions for the moment of inertia about an axis perpendicular to the plane of the ring: a) through the center of the ring. b) through the edge of the ring.
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius R. = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a numerical...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 2R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia / about the axis through the center of the rod. Write the expression in terms of M. R. and a numerical...
1. Consider a solid cone with uniform density p, height h, and circular base with radius R (hence mass M,sphR2). Let the vertex of the cone be the origin ofthe body frame. By symmetry, choose basis vectors e for the body frame such that the inertia tensor I, is diagonal. Will this rigid body with this body origin be an asymmetric top, a symmetric top, or a spherical top? Calculate the inertia tensor in this basis How will the inertia...
M 6 Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius Rp = 3R) are connected by a thin, uniform rod of length L = 4R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertia I about the axis through the center of the rod. Write the expression in terms of M, R, and a...
two uniform solid spheres with
mass M and radius R and the other with mass M and radiius Rb =2R,
are connected by a thin uniform rod of length L=2R and mass M. find
an expression for the moment of inertia I about the axis through
the center of the rod. wrtie an expression in terms of M, R, and a
numerical factor in fraction form
Mandard and the chamad conected by a thirred of 2R and Find an expression...
M Two uniform, solid spheres (one has a mass M and a radius R and the other has a mass M and a radius R = 2R) are connected by a thin, uniform rod of length L = 4 R and mass M. Note that the figure may not be to scale. Find an expression for the moment of inertial about the axis through the center of the rod. Write the expression in terms of M, R, and a numerical...
2. A ring of negligible thickness has a radius R and mass density 1. Find expressions for the moment of inertia about an axis perpendicular to the plane of the ring: a) through the center of the ring. b) through the edge of the ring.
