Light of wavelength 620 nm falls on a slit that is 3.8x10-3 mm wide. Calculate how...

Light of wavelength 620 nm falls on a slit that is 3.8x10-3 mm wide. Calculate how far the first, second and third bright diffraction fringes are from the strong central maximum if the screen is 10 cm away

science physics

Add a comment Improve this question Transcribed image text

Answer 1

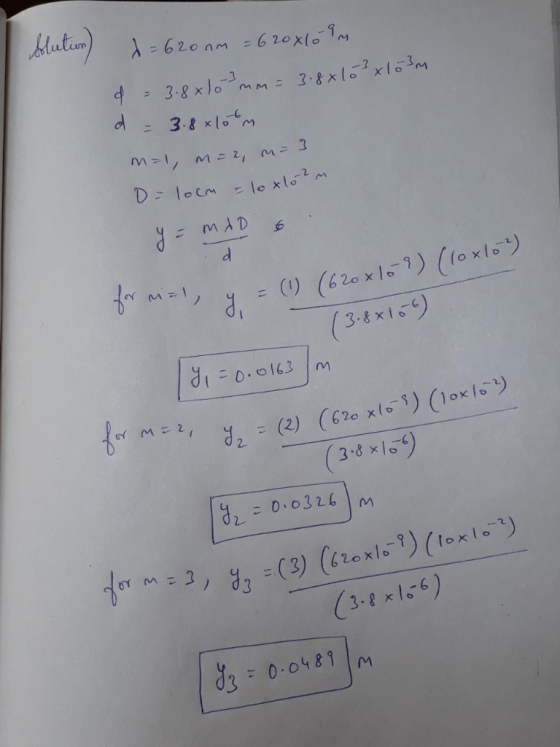

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

Light of wavelength 610 nm falls on a slit that is 3.50×10−3 mm wide. How far...

Light of wavelength 610 nm falls on a slit that is 3.50×10−3 mm wide. How far the first bright diffraction fringe is from the strong central maximum if the screen is 10.0 m away. Express your answer to three significant figures and include the appropriate units.
Light of wavelength 650 nm falls on a slit that is 3.90×10−3 mm wide. How far...

Light of wavelength 650 nm falls on a slit that is 3.90×10−3 mm wide. How far the first bright diffraction fringe is from the strong central maximum if the screen is 13.0 m away. This is my last attempt; I've put 3.25 m, 2.20 m, 2.17 m
Light of wavelength 580 nm falls on a slit that is 3.60×10−3mm wide. Estimate how far...

Light of wavelength 580 nm falls on a slit that is 3.60×10−3mm wide. Estimate how far the first brightest diffraction fringe is from the strong central maximum if the screen is 10.0 m away.

1.How wide is the central diffraction peak on a screen 2.40 m behind a 0.0368-mm-wide slit...

1.How wide is the central diffraction peak on a screen 2.40 m behind a 0.0368-mm-wide slit illuminated by 568-nm light? Express your answer using three significant figures. 2.Light of wavelength 610 nm falls on a slit that is 3.60×10−3 mm wide. Part A How far the first bright diffraction fringe is from the strong central maximum if the screen is 13.0 m away.
Light of wavelength 450 nm falls on a 0.47 mm wide slit and forms a diffraction...

Light of wavelength 450 nm falls on a 0.47 mm wide slit and forms a diffraction pattern on a screen 1.7 m away. (a) Find the position of the first dark band on each side of the central maximum. mm (b) Find the width of the central maximum. mm
Light of wavelength 700 nm falls on a 0.44 mm wide slit and forms a diffraction...

Light of wavelength 700 nm falls on a 0.44 mm wide slit and forms a diffraction pattern on a screen 1.2 m wway. (a) Find the position of the first dark band on each side of the central maximum. mm (b) Find the width of the central maximum. 3. [-/10 Points] DETAILS SERCP7 24.P.031. MY NOTES PRACTICE ANOTHER Light of wavelength 587.9 nm illuminates a siit, of width 0.74 mm. (a) At what distance from the slit should a screen...

A beam of light of wavelength 600 nm from a distant source falls on a single...

A beam of light of wavelength 600 nm from a distant source falls on a single slit 1.00 mm wide and resulting diffraction pattern is observed on a screen 2 m away. The distance between the first dark fringes on either side of the central bright fringe is 1.2 cm 1.2 mm 6x10-4 m 2.4 mm
Light of wavelength 455 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away.

Light of wavelength 455 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away. (a) Find the position of the first dark band on each side of the central maximum. (b) Find the width of the central maximum.
Light of wavelength 575 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away.

Light of wavelength 575 nm falls on a 0.32 mm wide slit and forms a diffraction pattern on a screen 1.0 m away. (a) Find the position of the first dark band on each side of the central maximum. (b) Find the width of the central maximum.

Light of wavelength 575 nm falls on a slit 0.0774 mm wide. (a) On a very...

Light of wavelength 575 nm falls on a slit 0.0774 mm wide. (a) On a very large distant screen, how many totally dark fringes (indicating complete cancellation) will there be, including both sides of the central bright spot? Solve this problem withoutcalculating all the angles! (Hint: What is the largest that sin? can be? What does this tell you is the largest that m can be?) _____dark fringes (b) At what angle will the dark fringe that is most distant...
